Seat Belt Buckle Switch

Seat Belt Switch - Passenger (With RPO Code KA1):

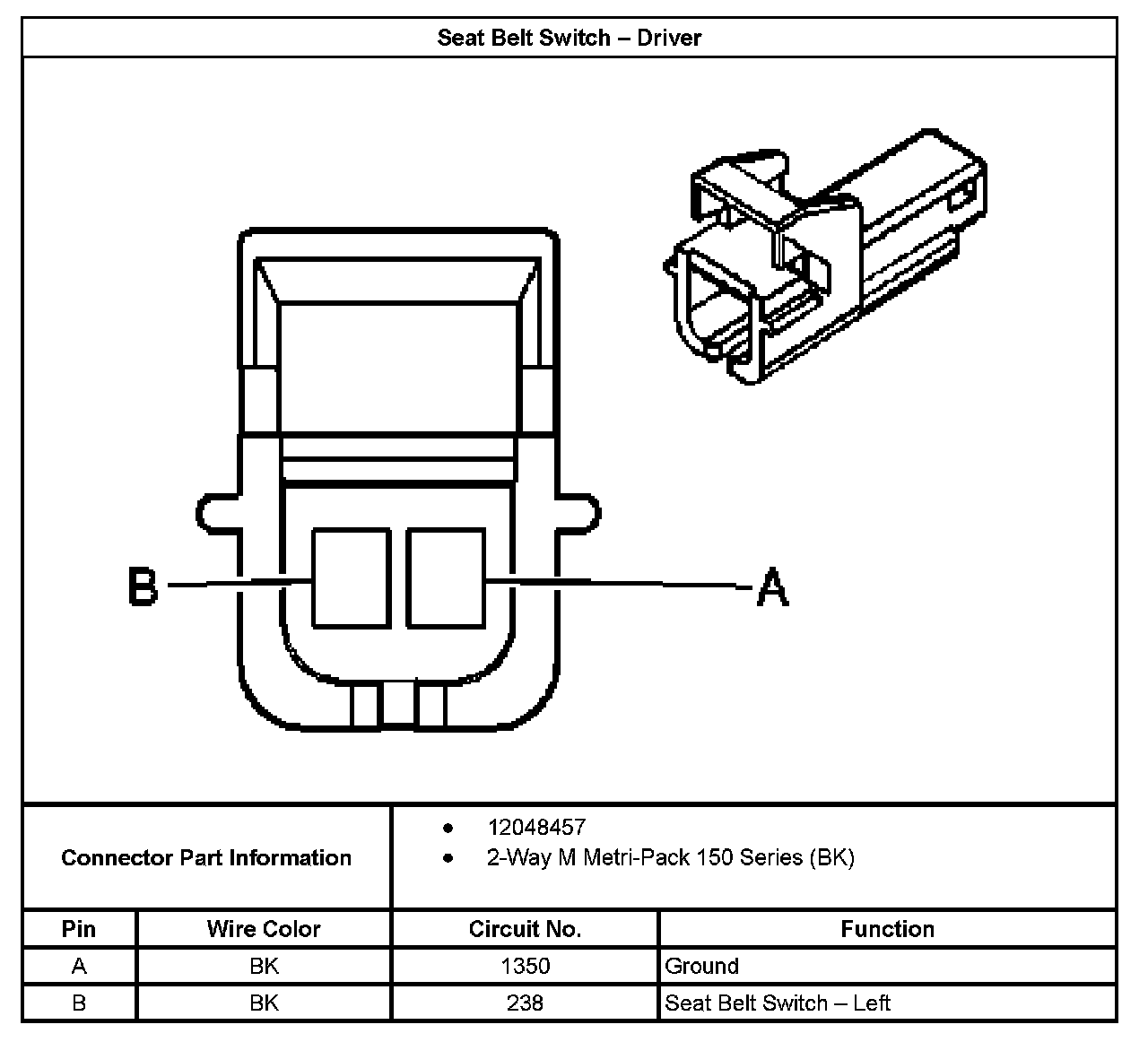

Seat Belt Switch - Driver:
