Seat Temperature Element

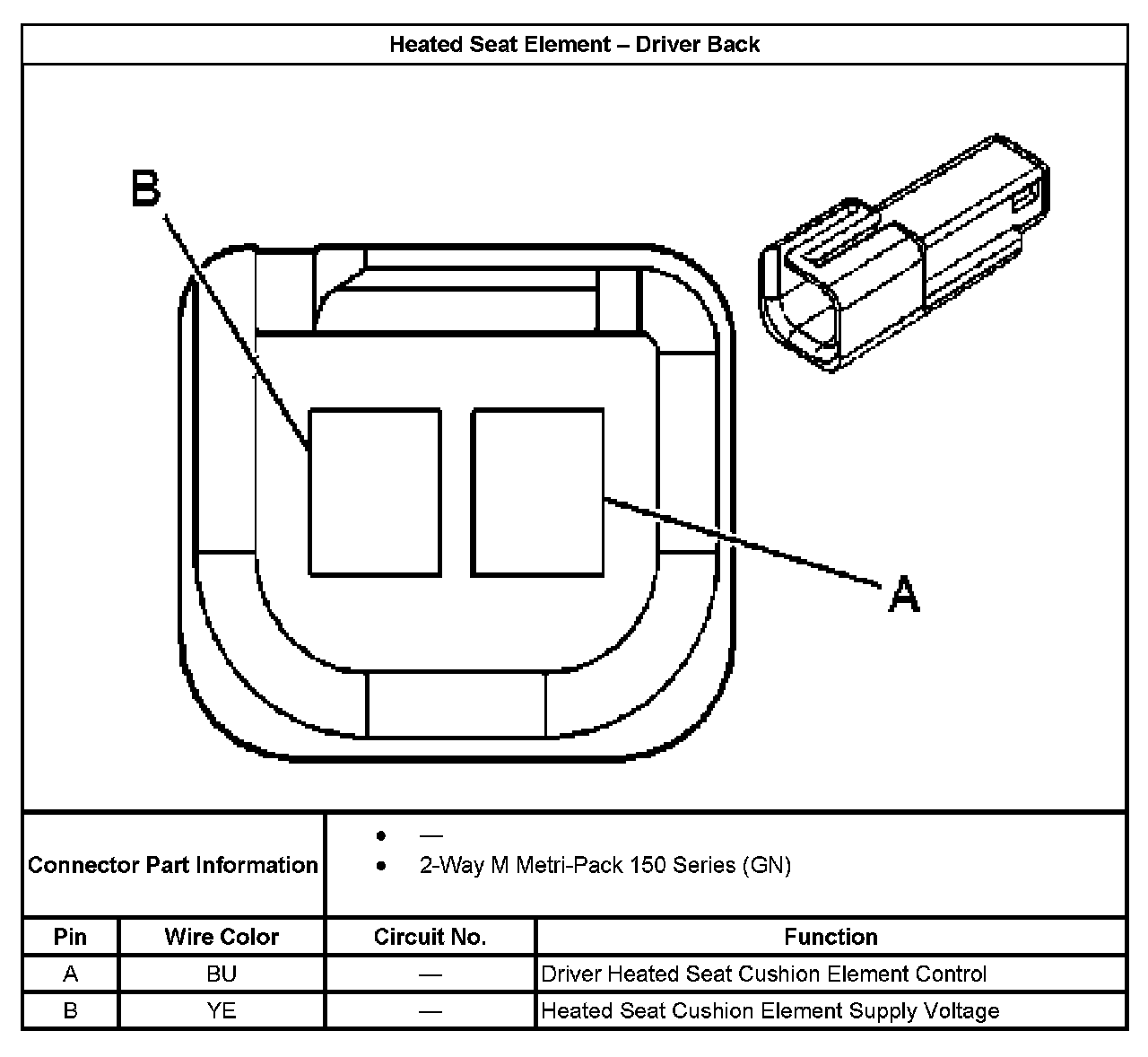

Heated Seat Element - Driver Back:

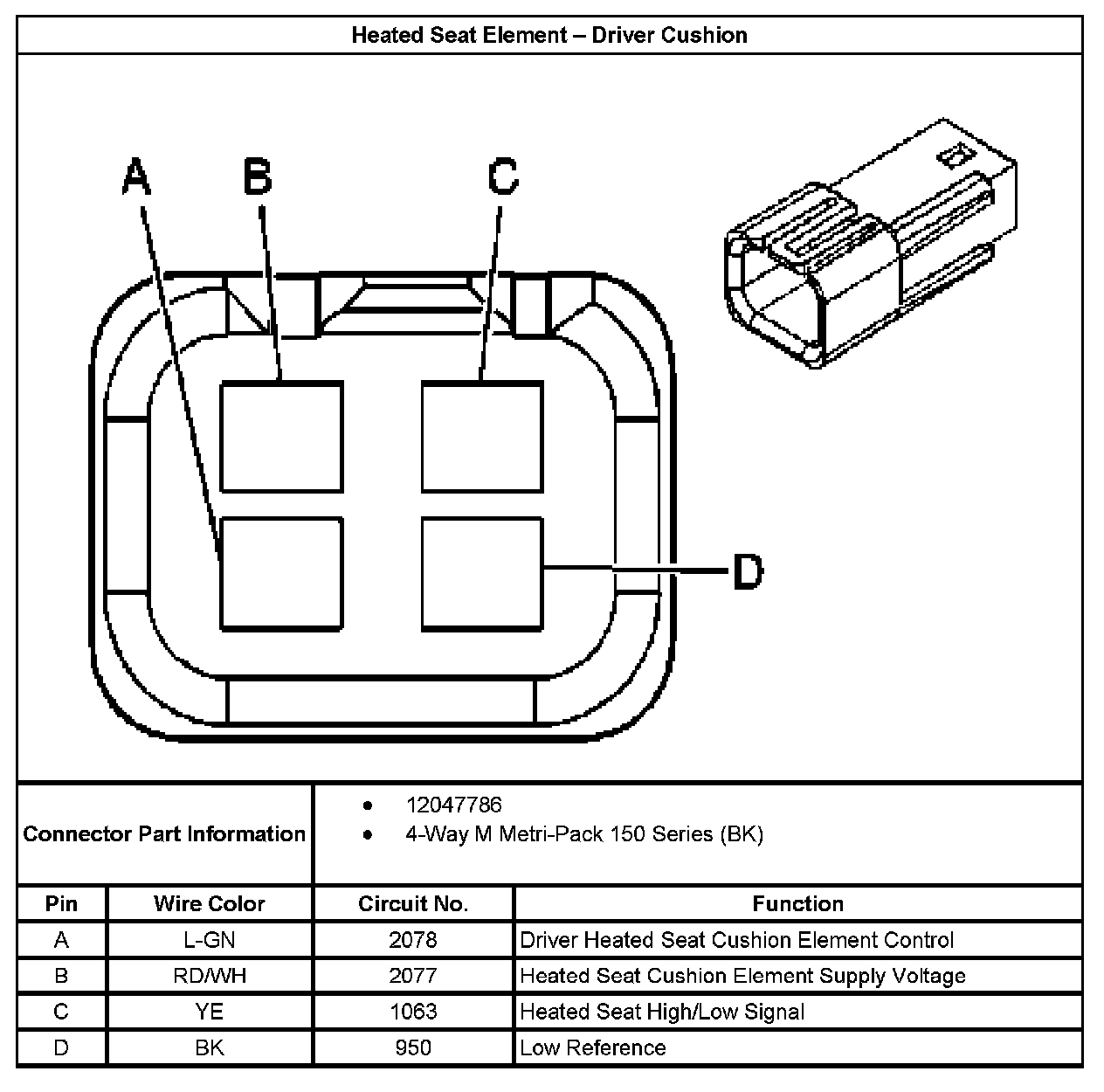

Heated Seat Element - Driver Cushion:

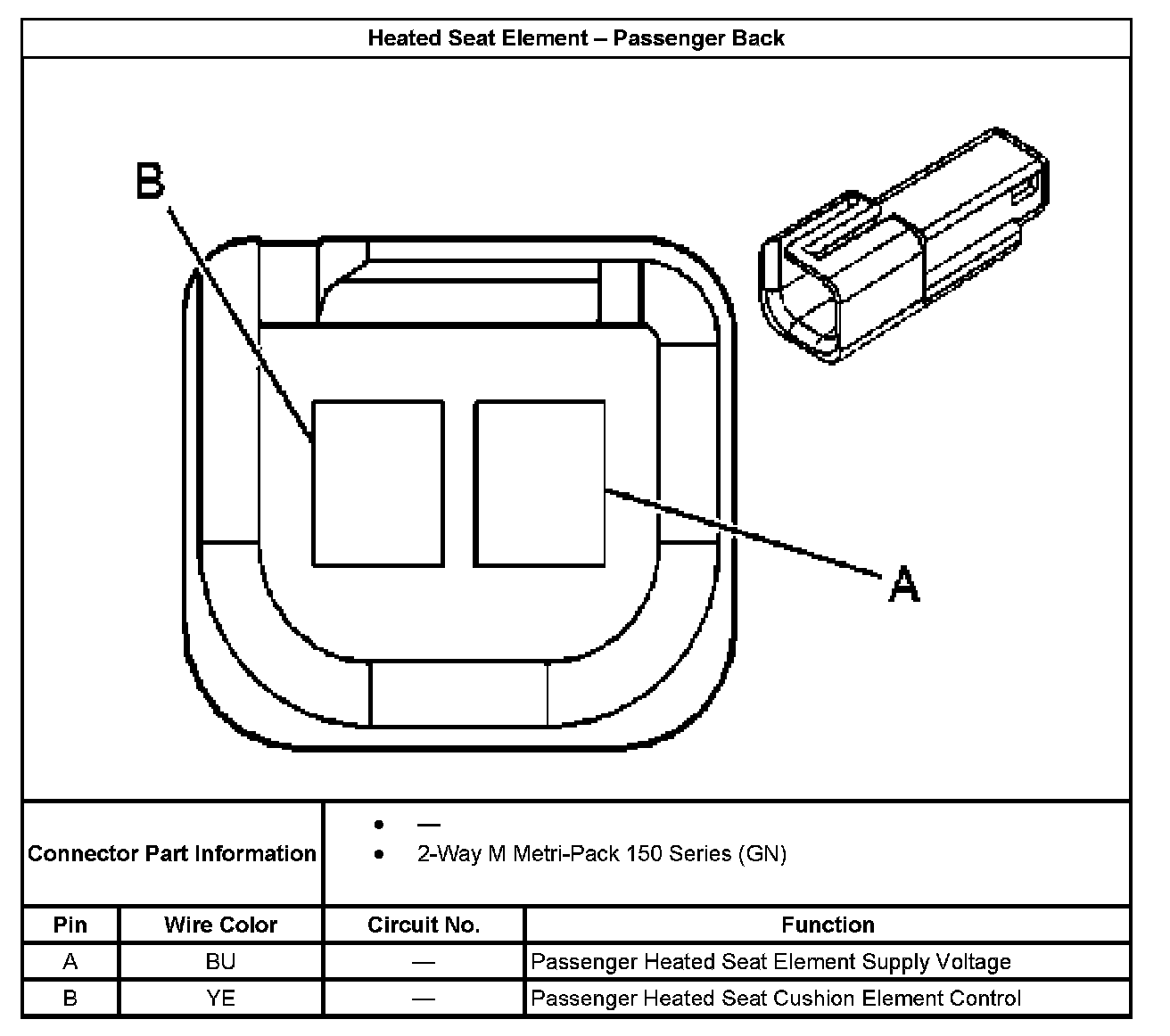

Heated Seat Element - Passenger Back:

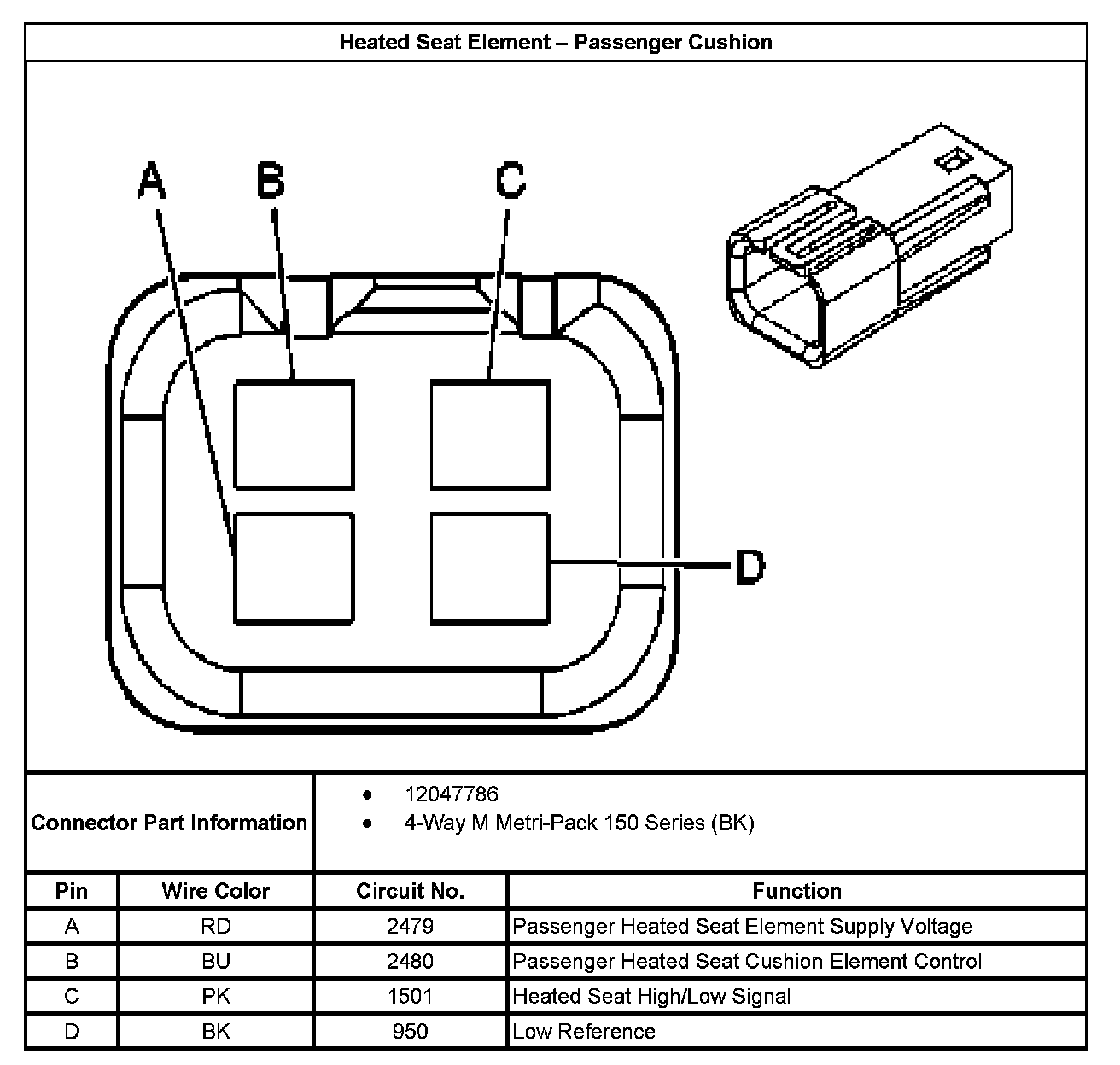

Heated Seat Element - Passenger Cushion:
