Trunk / Liftgate Switch
Trunk / Liftgate Switch

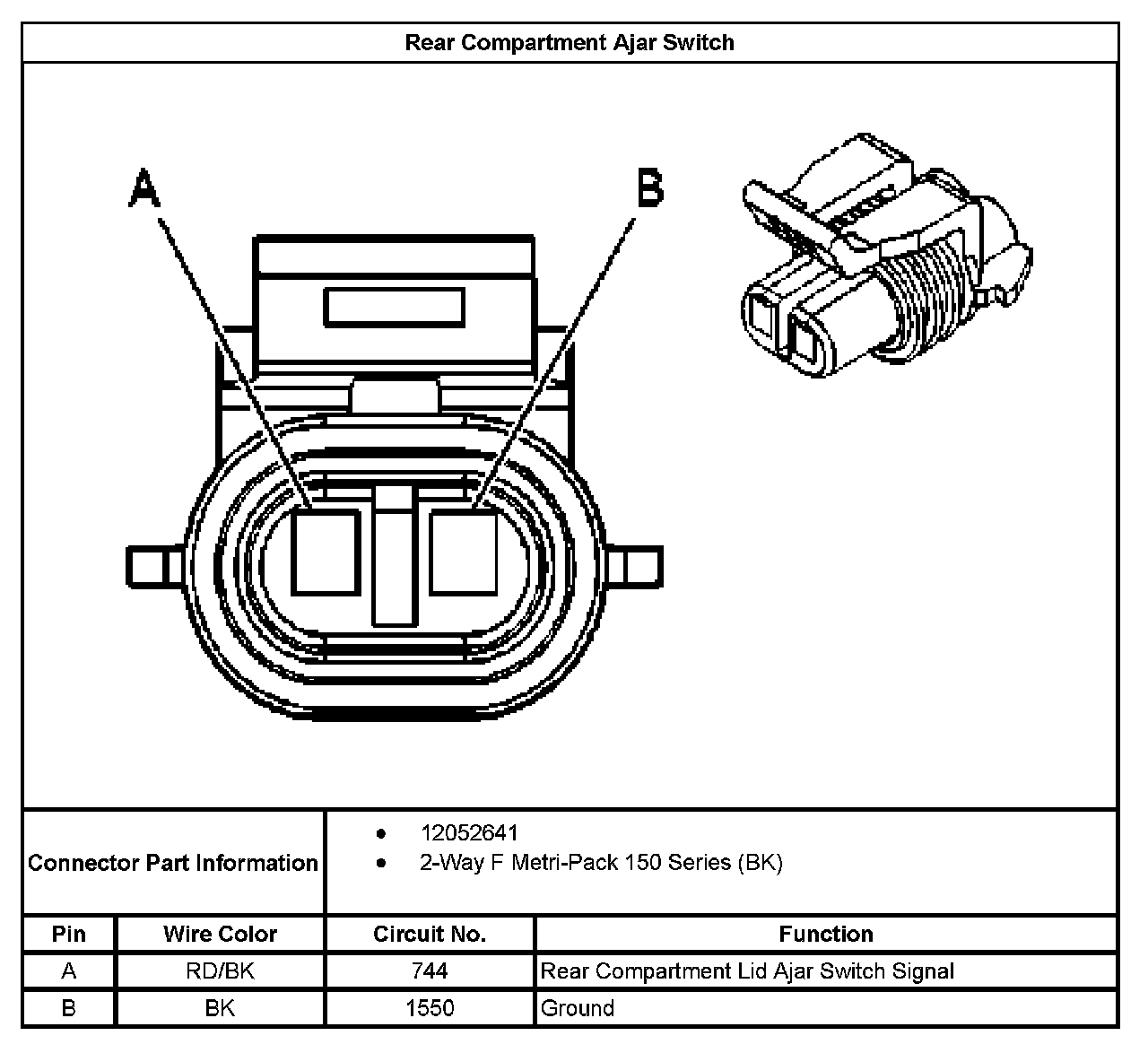

Rear Compartment Ajar Switch:

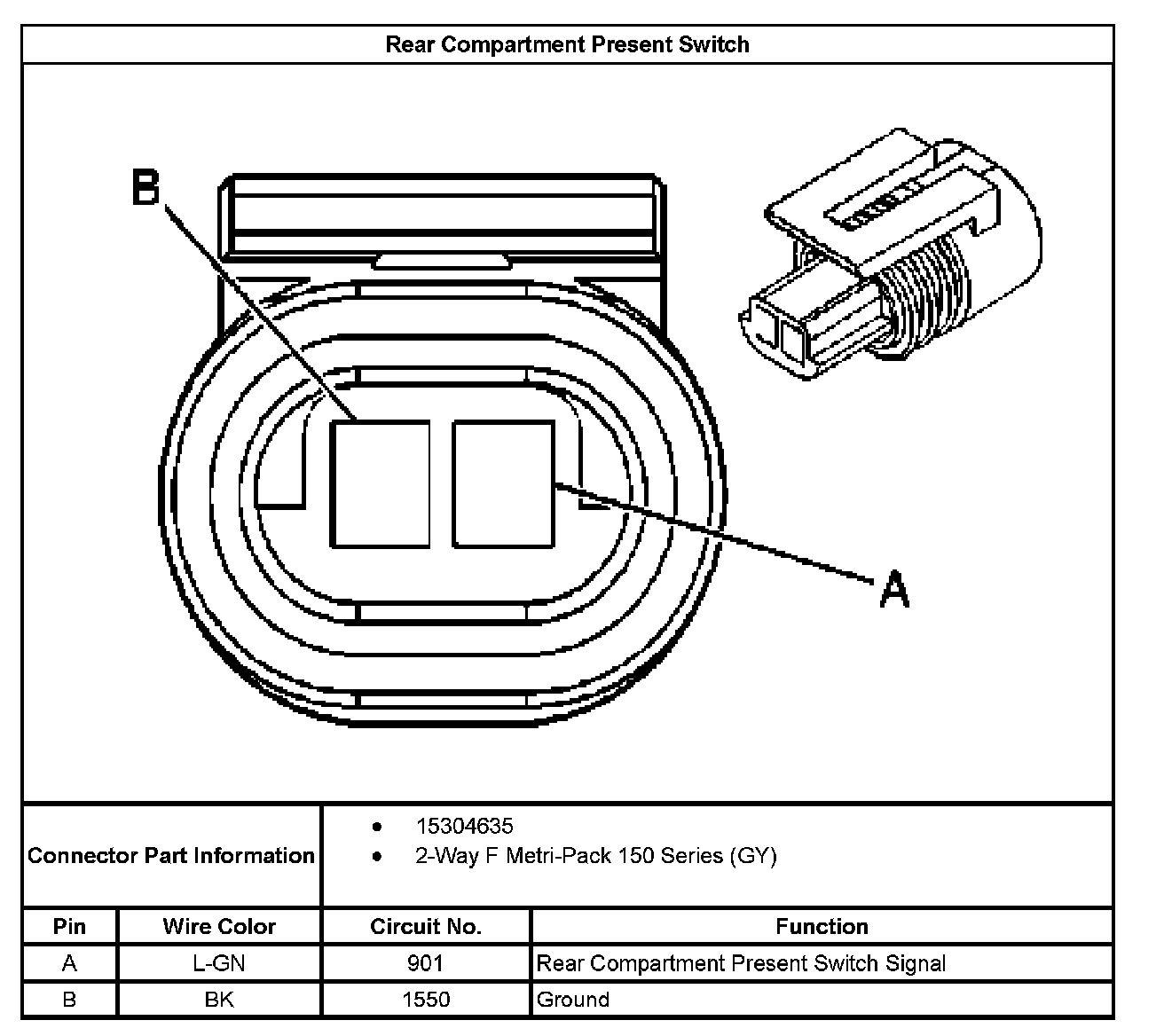

Rear Compartment Present Switch:
