Home >> Chevy Truck >> 2005 >> SSR V8-6.0L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering Column

Steering Column

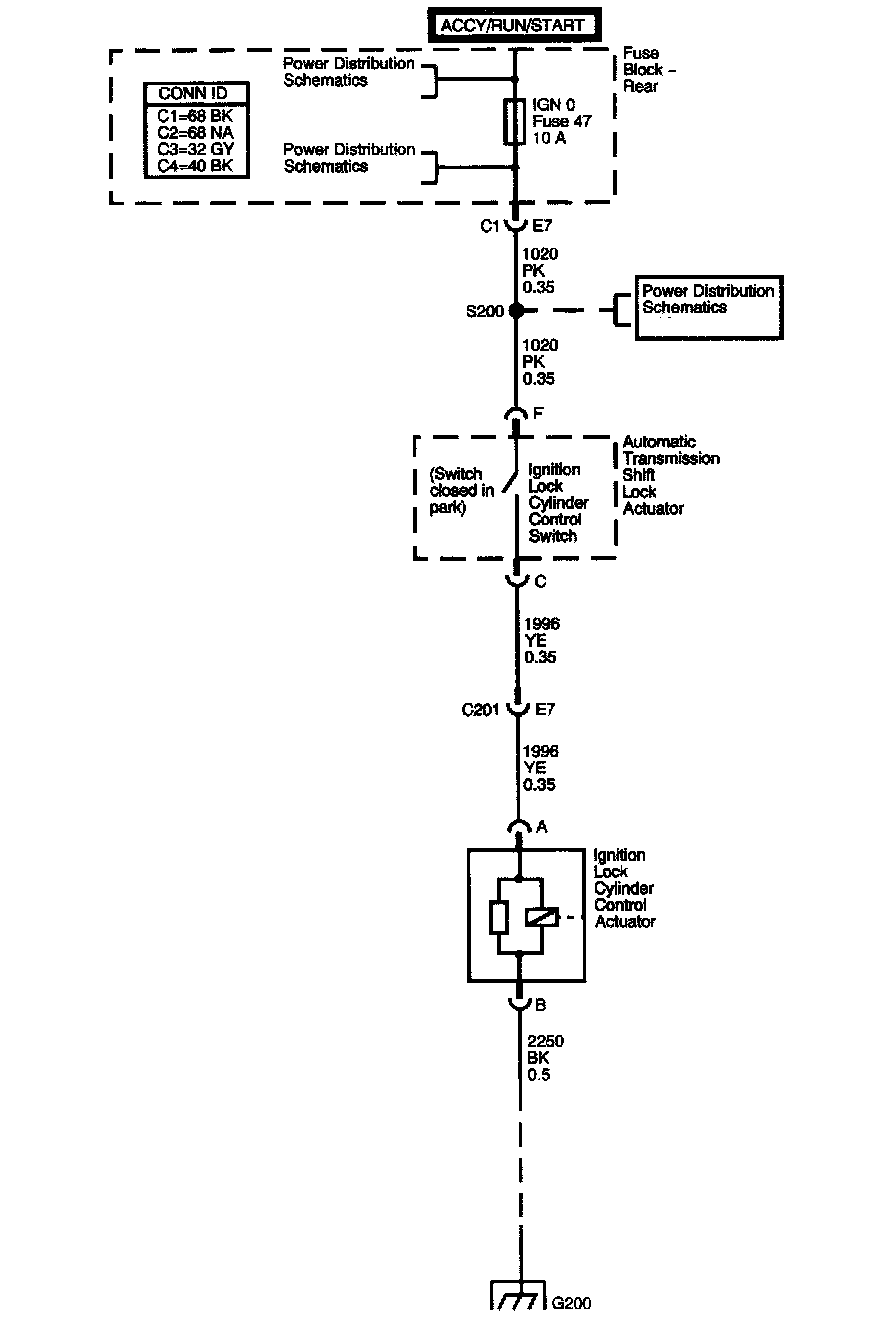

Schematic and Routing Diagrams:
