I/P Views

I/P Harness Routing View Part 1:

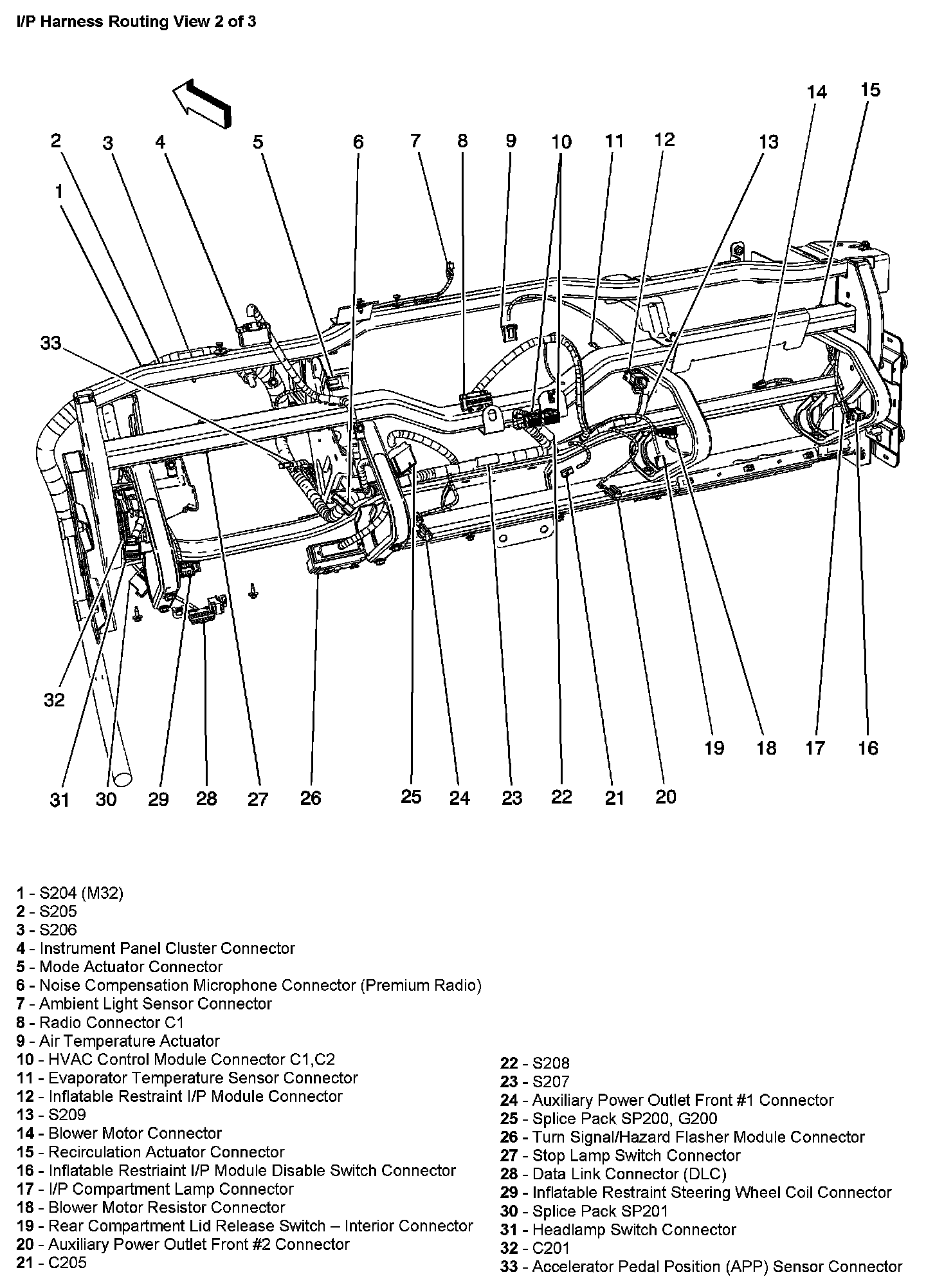

I/P Harness Routing View Part 2:

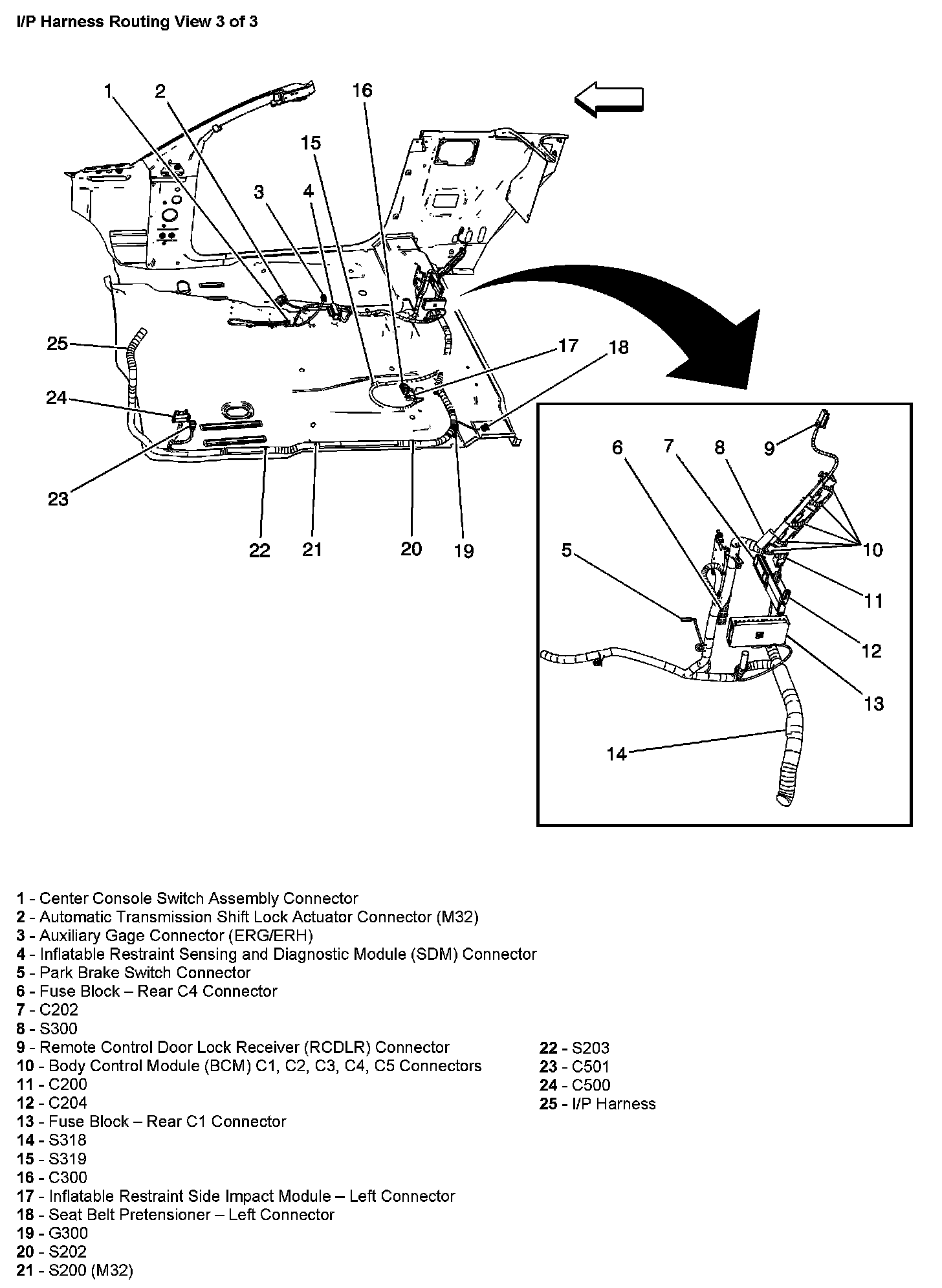

I/P Harness Routing View Part 3:
