Parking Brake Warning Switch: Service and Repair

Park Brake Warning Lamp Switch Replacement

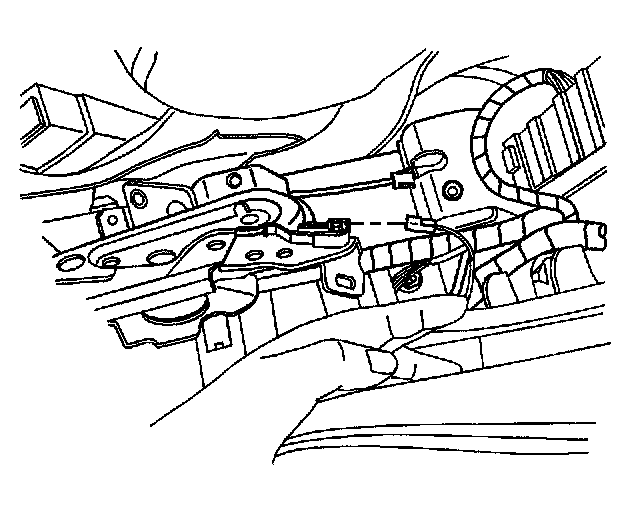

Removal Procedure
1. Release the park brake.





2. Remove the console assembly.
3. Remove the electrical connector for the park brake switch.
4. Remove the retaining bolt.
5. Remove the park brake switch.

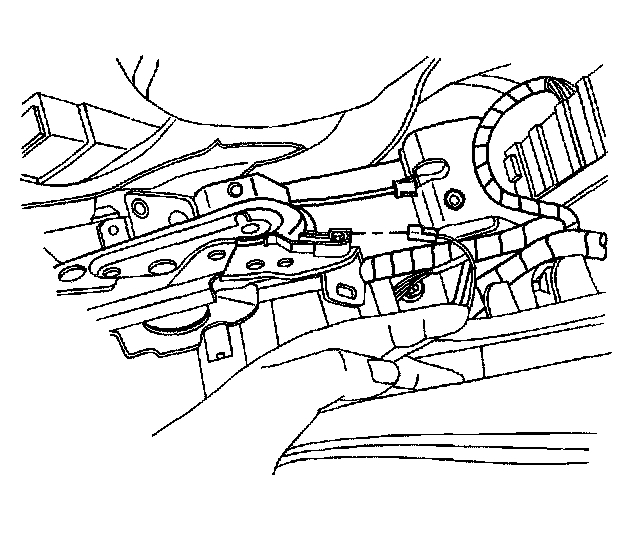

Installation Procedure





1. Position the park brake switch on the park brake handle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the park brake switch bolt.
Tighten the park brake switch bolt to 4 Nm (35 inch lbs.).
3. Install the electrical connector.
4. Install the center console assembly.
