Electrical Diagrams

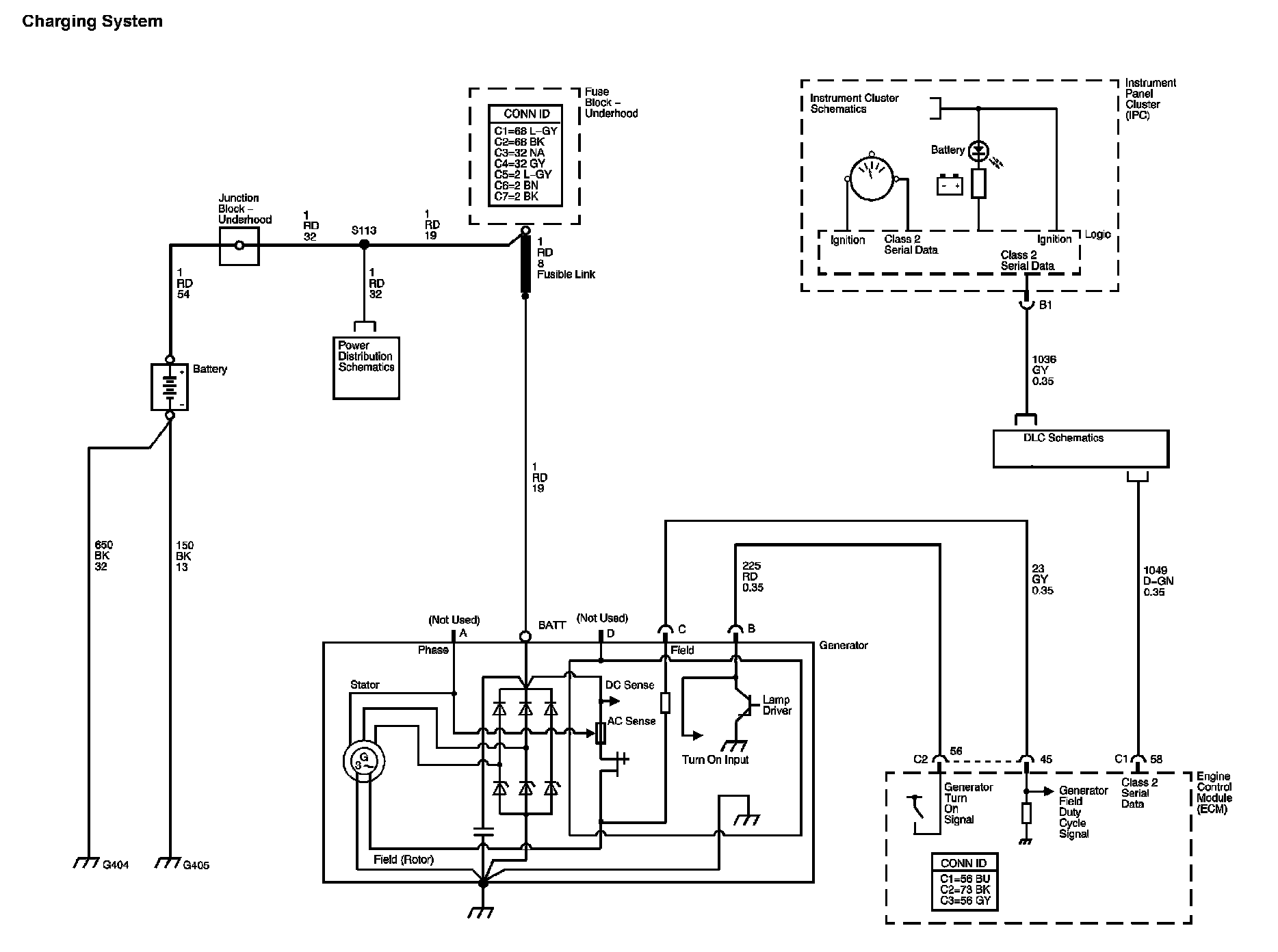

Starting and Charging Diagram 1:

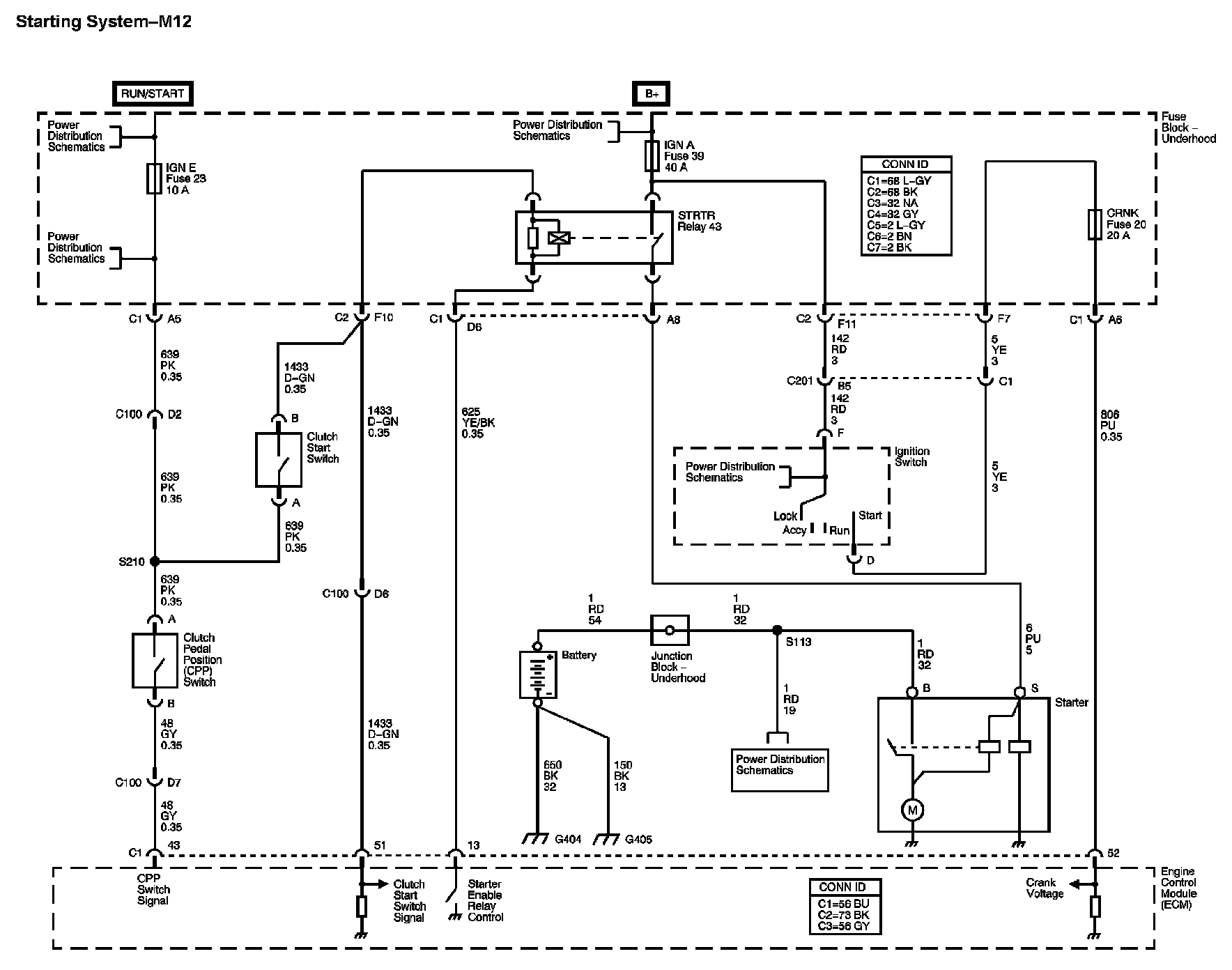

Starting and Charging Diagram 2:

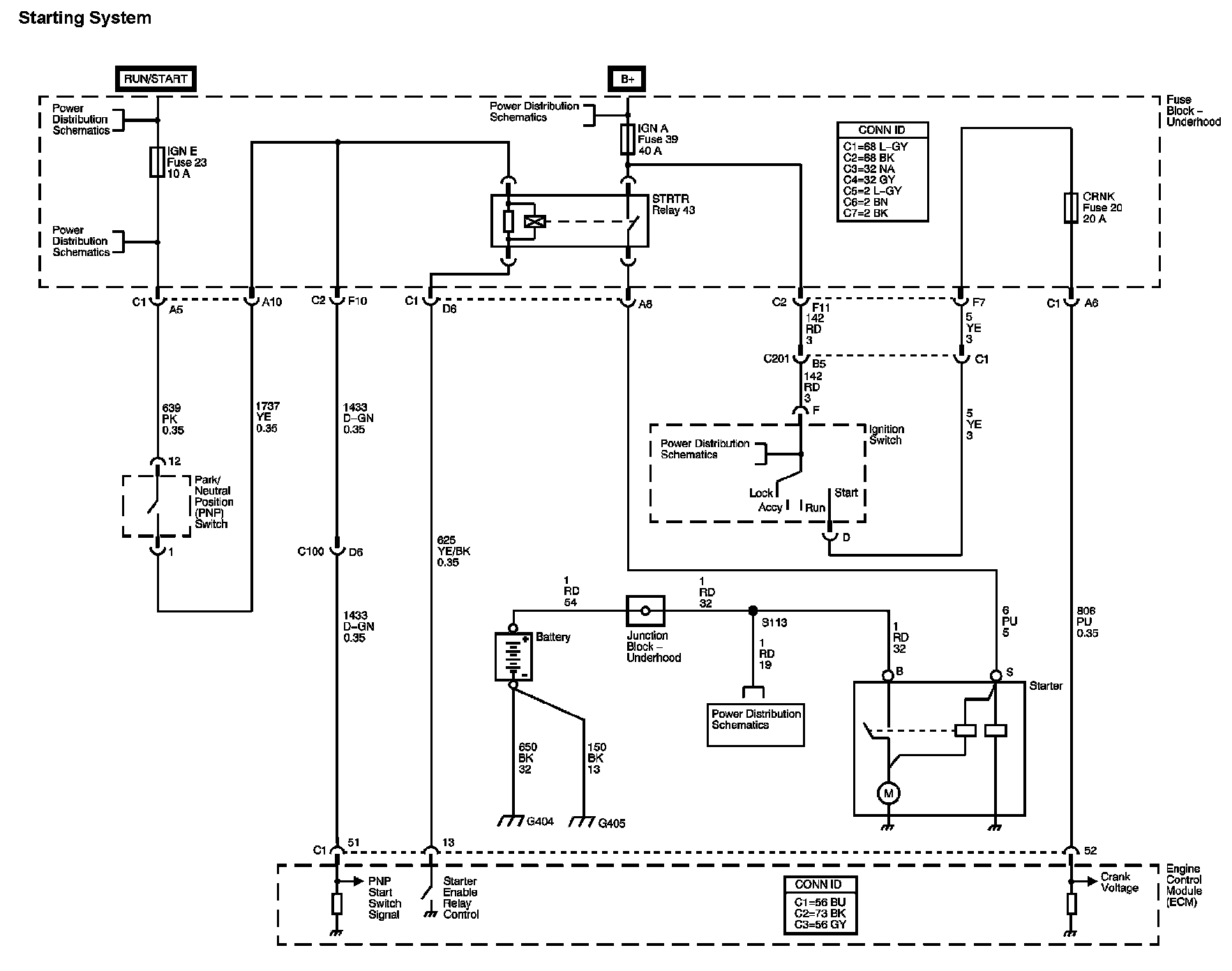

Starting and Charging Diagram 3:

Location: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
