Body - Hard Top Tonneau Cover Won't Work Smoothly
Bulletin No.: 05-08-67-005ADate: October 18, 2005
ADVANCE SERVICE INFORMATION RESOLUTION
Subject:
Tonneau Cover (Roof) Does Not Open Evenly or Will Not Open (Install Bushing)
Models:
2003-2005 Chevrolet SSR
Built Prior to VIN Breakpoint 4B108184
Supercede:
This bulletin is being revised to add the Delrin Roller Part Number. Please discard Corporate Bulletin Number 05-08-67-005 (Section 08 - Body and Accessories).
Condition
Some customers may comment that the roof/tonneau cover does not open evenly or the roof/tonneau cover won't open.
Cause
The hinge may be sticking on a rubber bushing attached to the hinge. Refer to the illustration above.
Correction
Remove the rubber bushing on the hinge and install a new delrin bushing to the hinge.

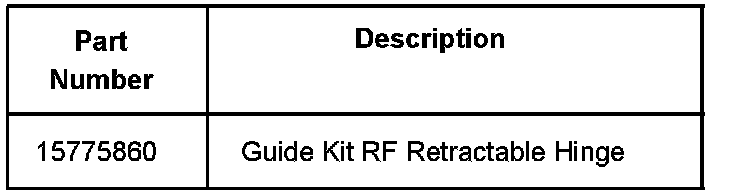

Parts Information
Warranty Information
For vehicles repaired under warranty, use the table.
