Body - Water In Corners of Pick Up Box
Bulletin No.: 05-08-66-003BDate: October 19, 2006
TECHNICAL
Subject:
Water in Rear Corners of Pickup Box (Install Butyl)
Models:
2003-2005 Chevrolet SSR
Supercede:
This bulletin is being revised to change the Subject. Please discard Corporate Bulletin Number 05-08-66-003A (Section 08 - Body and Accessories).
Condition
Some customers may comment that the pickup bed is wet in the back corners after a rainstorm.
Cause
Water builds up in the channel and becomes too great for the seals to withstand, causing water to flow past or under the seals into the bed corners.
Correction
Open the end gate.
Remove the end gate sill plate.
Clean the surface where the butyl is to be installed. Refer to the arrows in the illustration above.
Remove the end gate weatherstrip in the lower corners.
Apply a piece of butyl from the hem flange over to the hinge opening. Repeat for the other side.
Now apply a piece of butyl from hinge opening to hinge opening. Refer to the illustration above. These three pieces of butyl will act as a dam if any water gets around the seal and will allow the water to exit the vehicle through the hinge openings.
Reinstall the weatherstrip and end gate sill plate.
Warranty Information

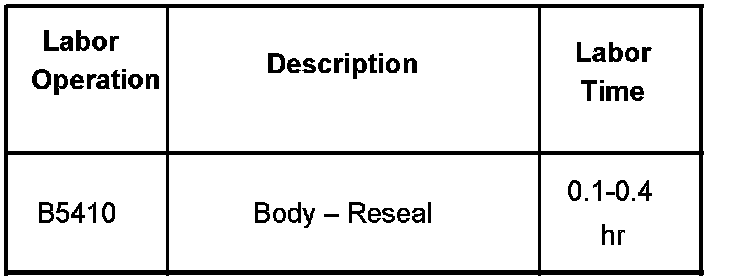

For vehicles repaired under warranty, use the table.
