Energy Storage Box (ESB) Temperature Sensor Replacement

ENERGY STORAGE BOX (ESB) TEMPERATURE SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the energy storage box (ESB) intermediate cover.
2. Remove the tie strap.
3. Disconnect the temperature sensor electrical connector.

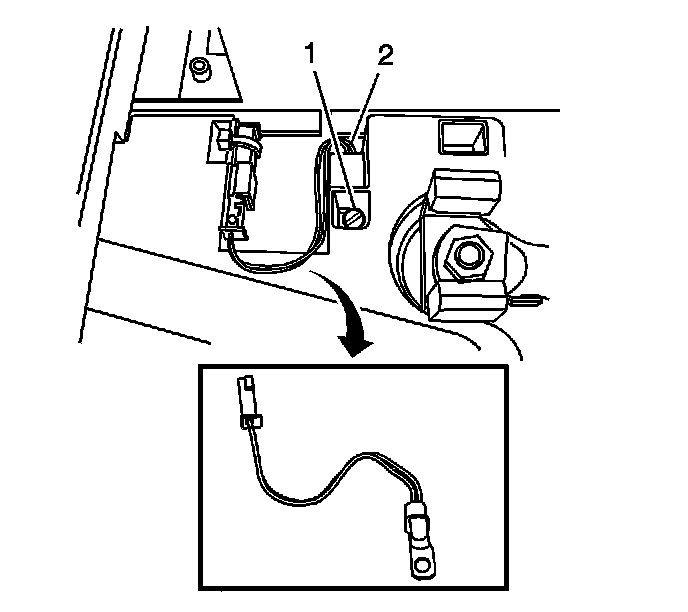

4. Remove the temperature sensor screw (1).
5. Remove the temperature sensor (2) from the ESB battery.

INSTALLATION PROCEDURE




1. Install the temperature sensor (2) to the ESB battery.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the temperature sensor screw (1).

Tighten the screw to 0.5 N.m (4.4 lb in).

3. Connect the temperature sensor electrical connector.
4. Install a NEW tie strap.
5. Install the ESB intermediate cover.
