Fan Shroud Replacement

Fan Shroud Replacement - Upper (w/RPO HP2)

Removal Procedure





1. Loosen the air cleaner outlet duct clamps from the throttle body.
2. Loosen the air cleaner outlet duct clamps from the mass air flow (MAF) sensor.
3. Remove the air cleaner outlet duct.
4. Remove the Hybrid Control Module (HCM).





5. Remove the throttle body heater hose retainer from the fan shroud.
6. Remove the inlet radiator hose retainer from the fan shroud.

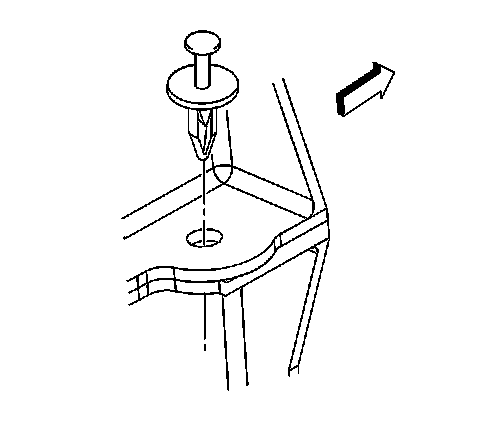

7. Remove the fan shroud retainers.

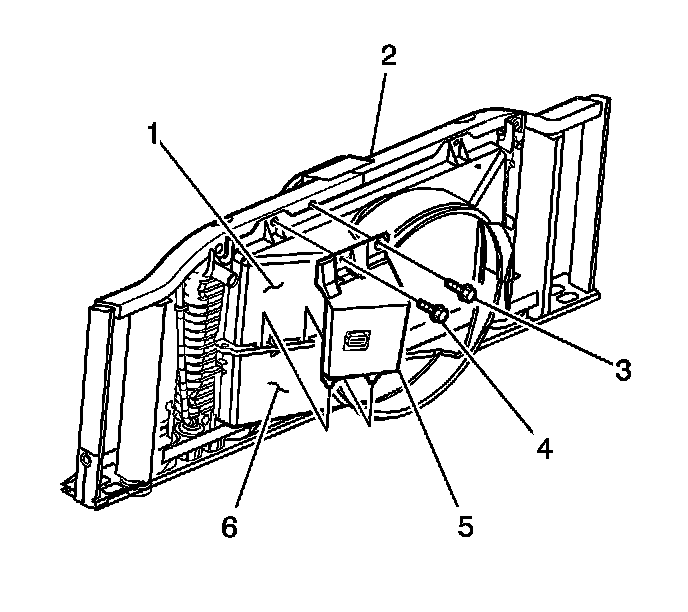

8. Remove the fan shroud bolts.
9. Remove the upper fan shroud.

Installation Procedure





1. Install the upper fan shroud.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the fan shroud bolts.
Tighten the bolts to 9 Nm (80 inch lbs.).





3. Install the fan shroud retainers.
4. Install the inlet radiator hose retainer to the fan shroud.
5. Install the throttle body heater hose retainer to the fan shroud.





6. Install the HCM.
7. Install the air cleaner outlet duct.
8. Tighten the air cleaner outlet duct clamp at the throttle body.
Tighten the clamp to 4 Nm (35 inch lbs.).
9. Tighten the air cleaner outlet duct clamp at the MAF sensor.
Tighten the clamp to 4 Nm (35 inch lbs.).
