Energy Storage Box (ESB) Battery Vent Hose Replacement

ENERGY STORAGE BOX (ESB) BATTERY VENT HOSE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the energy storage box (ESB) intermediate cover.

IMPORTANT: Note the location and routing of the battery vent hose for ease of reassembly.

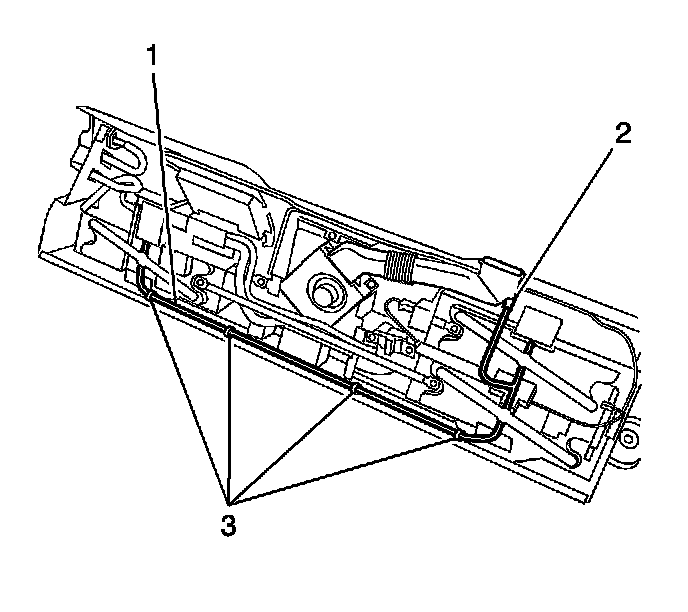

2. Disengage the retainers (3) securing the battery vent hose.
3. Disconnect the battery vent hose from the air duct hose (2).
4. Disconnect the battery vent hose from the batteries.
5. Remove all pieces of the battery vent hose assembly from the ESB that are required for service.

INSTALLATION PROCEDURE




1. Position the battery vent hose assembly (1) to the ESB as noted during removal.
2. Connect the battery vent hose to the batteries.
3. Connect the battery vent hose to the air duct hose (2).
4. Engage the retainers (3) securing the battery vent hose.
5. Install the ESB intermediate cover.
