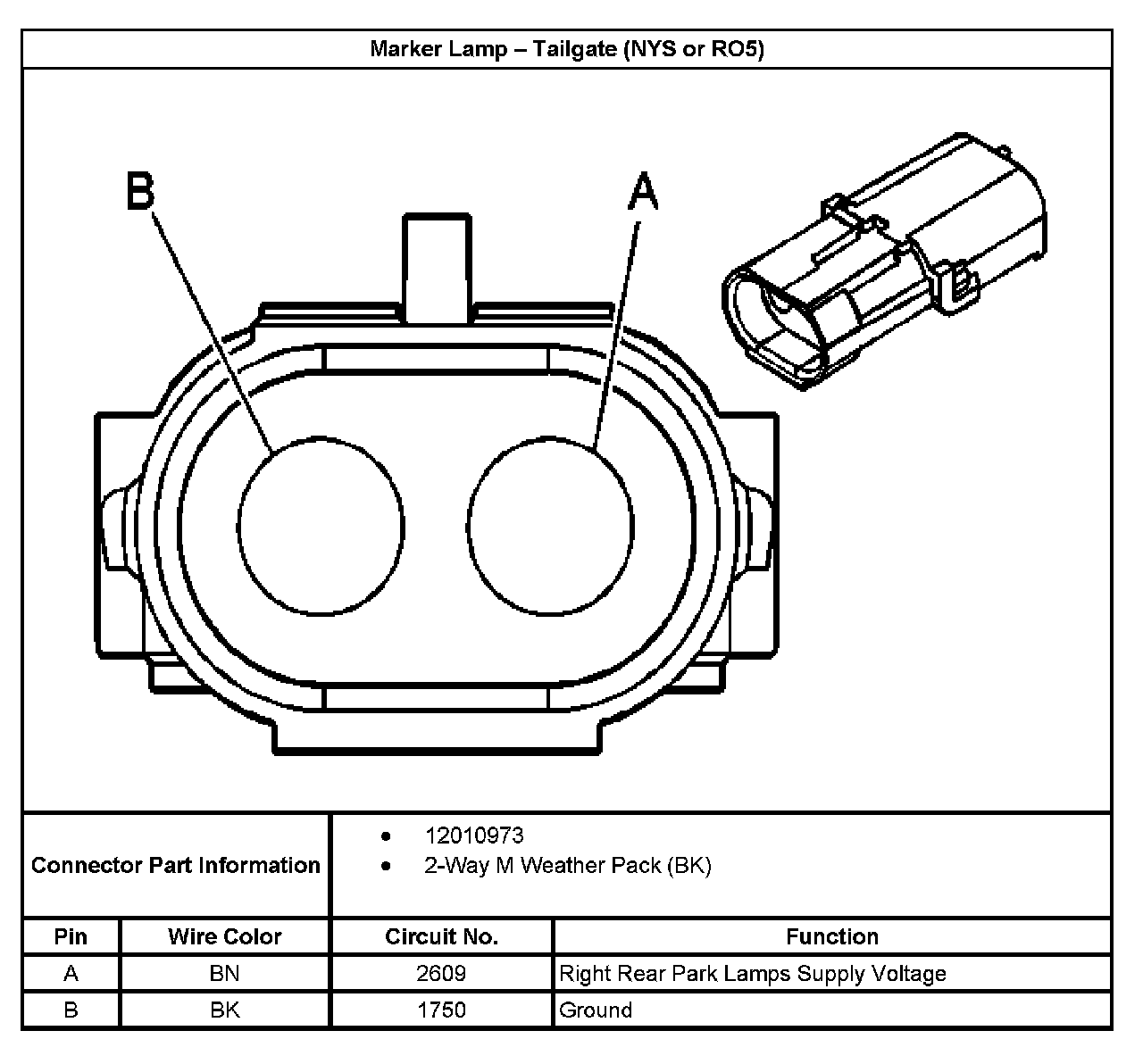

Marker Lamp - Tailgate (With RPO Code NYS Or RO5)
Marker Lamp - Tailgate (With RPO Code NYS Or RO5)
Marker Lamp - Tailgate (With RPO Code NYS Or RO5):
