Door Latch Assembly (Door Jamb Switch) - LR C2 (Crew Cab Only)
Door Latch Assembly (Door Jamb Switch) - LR C2 (Crew Cab Only)

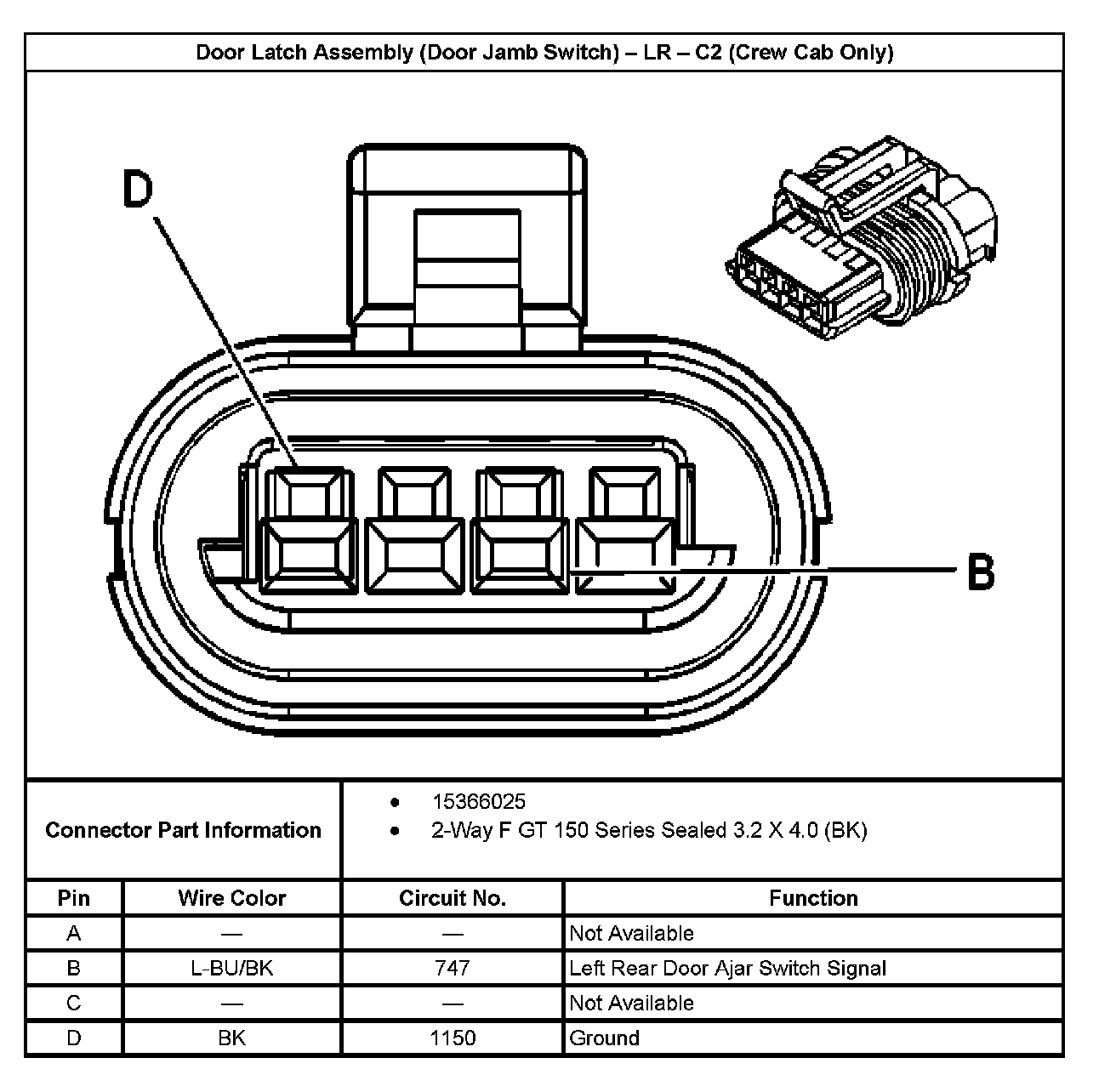

Door Latch Assembly (Door Jamb Switch) - LR - C2 (Crew Cab Only):
