Flywheel: Service and Repair

Engine Flywheel Replacement

Removal Procedure

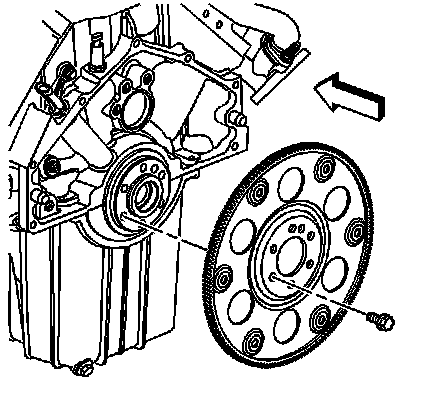

1. If equipped with a automatic transmission, remove the transmission.
2. Remove the engine flywheel bolts.
3. Remove the engine flywheel.

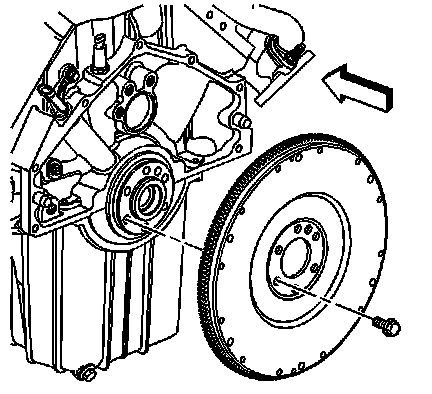

4. If equipped with a manual transmission, remove the clutch assembly.
5. Remove the engine flywheel bolts.
6. Remove the engine flywheel.
7. Clean and inspect the engine flywheel.

Installation Procedure

Important: Make sure the flywheel is installed correctly. "Engine Side" is stamped on the flywheel to aid with installation.





1. If equipped with a manual transmission, Install the engine flywheel.





2. If equipped with a automatic transmission, Install the engine flywheel.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the engine flywheel bolts.
1. Tighten the bolts a first pass to 40 Nm (30 lb ft).
2. Tighten the bolts a second pass to 80 Nm (59 lb ft).
3. Tighten the bolts a final pass to 100 Nm (74 lb ft).

4. If equipped with a manual transmission, install the clutch assembly.
5. If equipped with a automatic transmission, install the transmission.
