P2563
DTC P2563
CIRCUIT DESCRIPTION
The position of the turbocharger vanes is controlled by the engine control module (ECM). The ECM utilizes a turbocharger vane control solenoid valve and a turbocharger vane position sensor to control the turbocharger vanes. When the engine is not under load, the turbocharger vanes are in an open position, or no boost condition. When the engine is under load, the ECM commands the control solenoid valve to close the turbocharger vanes, thus increasing the boost. The ECM will vary the boost dependant upon the load requirements of the engine. The vane position sensor uses the following 3 circuits:
- A 5-volt reference circuit
- A low reference circuit
- A signal circuit
The ECM provides the sensor with 5 volts on the 5-volt reference circuit and a ground on the low reference circuit. Movement of the sensor from the closed position to the open position provides the ECM with a signal voltage through the position sensor signal circuit. If the ECM detects that the commanded position does not meet the actual position, DTC P2563 will set.
DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC P2563 Turbocharger Vane Control Position Sensor Performance
CONDITIONS FOR RUNNING THE DTC
- DTCs P0045, P2564, and P2565 are not set.
- The ignition is ON.
- The ECM is not commanding the turbocharger offset learn.
- DTC P2563 runs continuously once the above conditions are met.
CONDITIONS FOR SETTING THE DTC
- The ECM detects that the commanded vane position does not match the actual position.
- The above condition exists for more than 12 seconds.
ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.
CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.
DIAGNOSTIC AIDS
- If any service has been performed on the turbocharger or on the turbocharger components, a turbocharger relearn must be performed. Failure to perform the turbocharger learn procedure may cause this DTC to set. Refer to Turbocharger Learn Procedure.
- An intermittent condition with the turbocharger vane control solenoid valve may cause this DTC to set. For an intermittent condition, refer to Intermittent Conditions. Intermittent Conditions

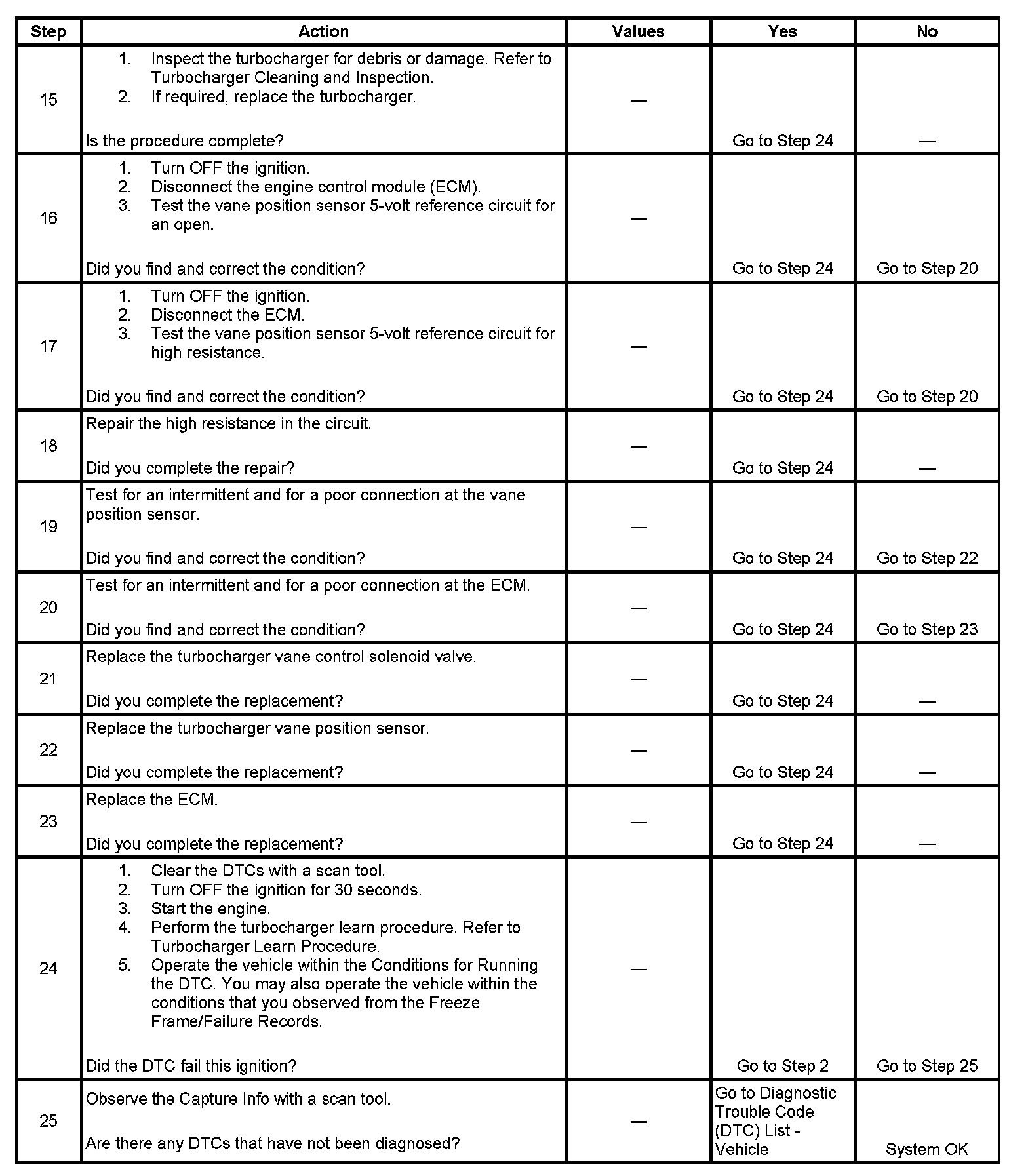

TEST
Steps 1-8:
Steps 9-14:
