Flex Plate: Service and Repair

Engine Flywheel Replacement (Automatic Transmission)

Tools Required
^ J44643 Flywheel Holding Tool
^ J45059 Angle Meter

Removal Procedure





1. Remove the transmission.

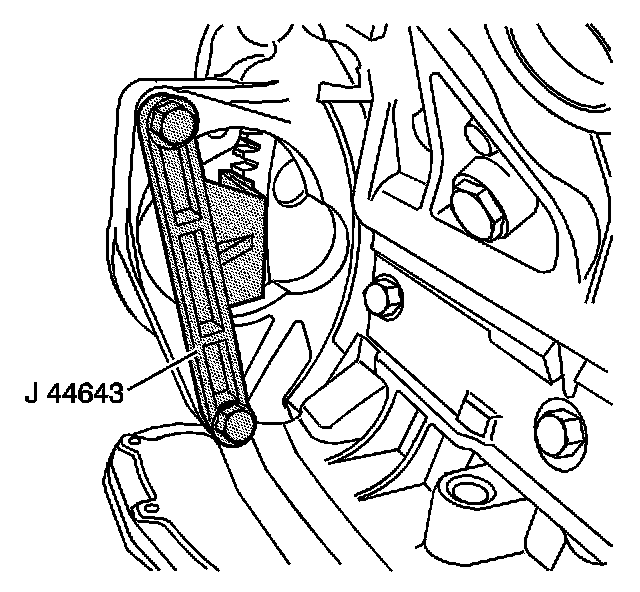

2. Install J44643 in order to hold the flywheel.





Caution: When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

3. Remove and discard the flywheel bolts.
4. Remove the flywheel washer and flywheel.

Installation Procedure

Caution: When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.





Important: When installing the flywheel, ensure that the tapered side of the teeth are facing the starter.

1. Install the flywheel.
2. Install the flywheel washer with the beveled side facing the engine.

Notice: Refer to Fastener Notice in Service Precautions.

Notice: This component uses bolts with a preapplied molybdenum disulfide coating for thread lubrication. Do not remove the coating or use any additional lubricant. Improperly lubricated threads will adversely affect the bolt torque and clamp load. Improper bolt torque and clamp load can lead to engine damage.

3. Install NEW flywheel bolts.

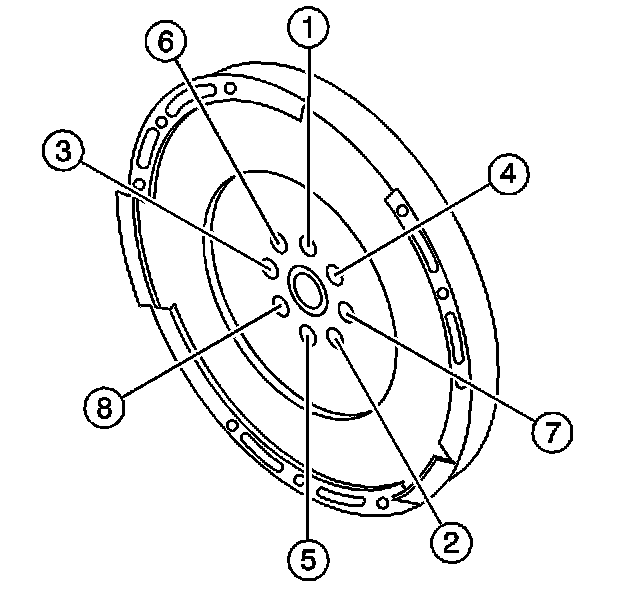

4. Tighten the flywheel bolts in the proper sequence.
1. Tighten the bolts a first pass to 79 Nm (58 lb ft).
2. Tighten the bolts a second pass to 60 degrees using J45059.
3. Tighten the bolts a final pass an additional 60 degrees using J45059.





5. Remove J44643 from the flywheel.
6. Install the transmission.
