Power Take-Off: Locations

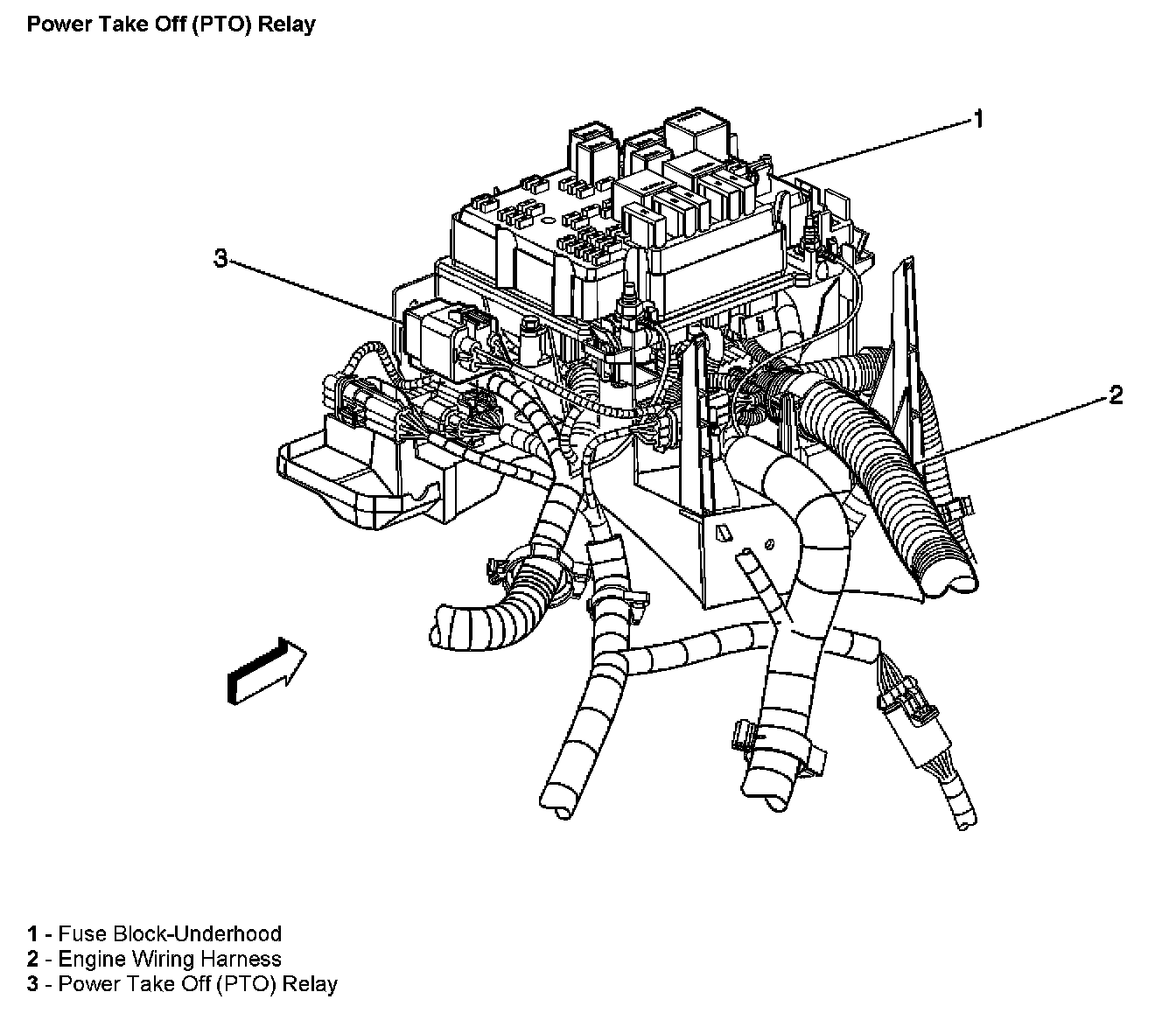

Power Take Off (PTO) Relay:

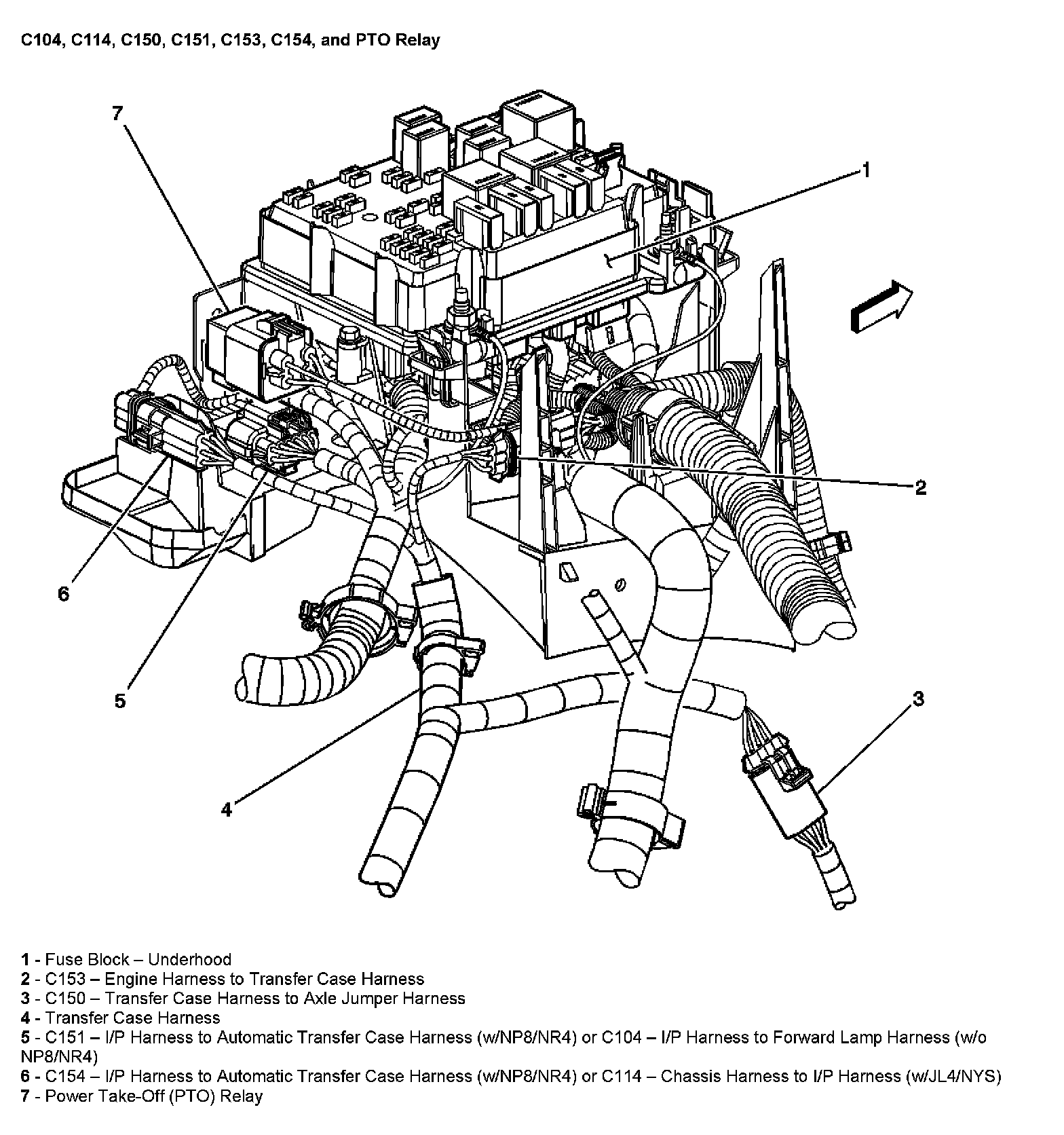

C104, C114, C150, C151, C153, C154, And PTO Relay:
