61. Crankshaft and Bearing Installation

Crankshaft and Bearings Installation
^ Tools Required
- J 8001 Dial Indicator Set
- J 45059 Angle Meter





1. Important:
^ Lubricate the crankshaft bearings and crankshaft with clean engine oil.
^ If undersized bearings are used, ensure that the bearings are fitted to the proper journals.

Install the crankshaft upper bearings into the block. Apply clean engine oil to the bearing surfaces.

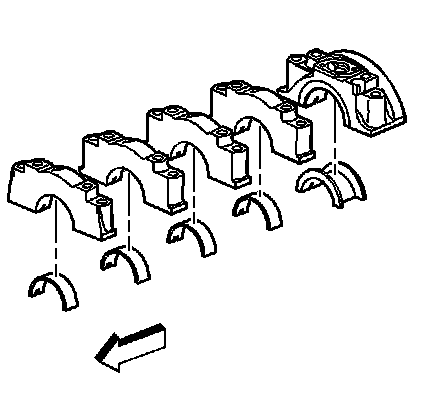

2. Install the crankshaft lower bearings into the crankshaft bearing caps. Apply clean engine oil to the bearing surfaces.





3. Notice: In order to prevent damage to the crankshaft position (CKP) sensor reluctor wheel/ring care must be used when removing or installing this component.

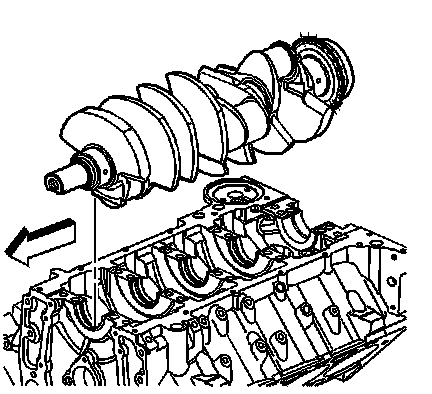

Install the crankshaft.





4. Important: The bearing caps must be seated within 60 minutes of the sealer being applied. The bearing cap fasteners must be tightened within 5 minutes of the bearing caps being installed onto the engine block.

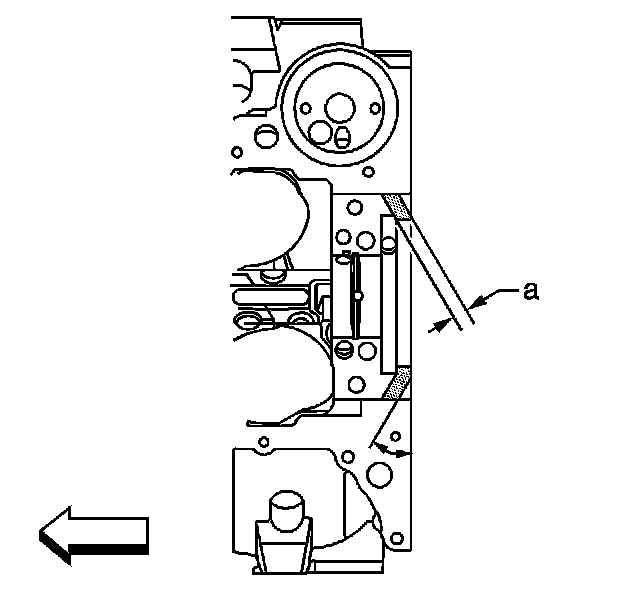

Apply a (a) 13 mm (0.500 inch) light film of sealant GM P/N 1052942, (Canadian P/N 10953466), or equivalent to the rear bearing cap sealing face or to the rear bearing cap channel of the engine block. Apply the sealant to the bearing cap mating surface and bearing cap channel from the rear seal bore to the oil pan surface.





5. Notice: In order to prevent the possibility of cylinder block or crankshaft bearing cap damage, the crankshaft bearing caps are tapped into the cylinder block cavity using a brass, lead, or a leather mallet before the attaching bolts are installed. Do not use attaching bolts to pull the crankshaft bearing caps into the seats. Failure to use this process may damage a cylinder block or a bearing cap.

Notice: The crankshaft position sensor reluctor wheel/ring is not serviced separately. Do not repair the crankshaft position sensor reluctor wheel/ring. If the crankshaft position sensor reluctor ring is damaged, the crankshaft assembly must be replaced.

Important: Ensure that the triangle symbols on the crankshaft bearing caps are facing the front of the engine.

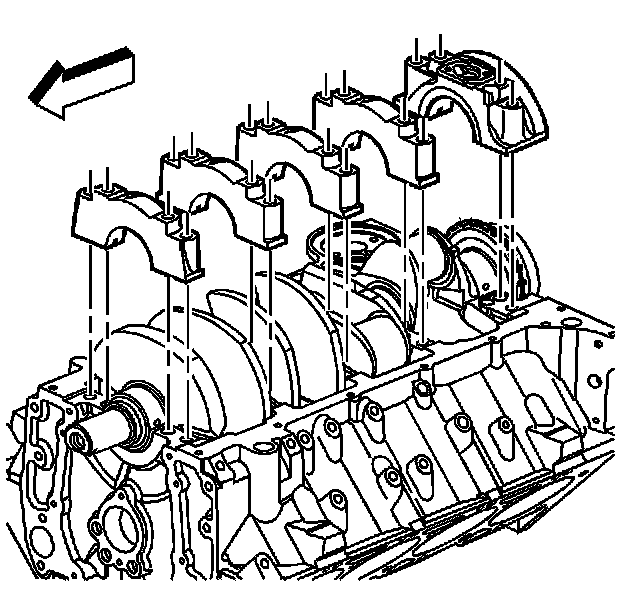

Install the crankshaft bearing caps in the location the caps were marked and originally removed from.





6. Notice: Refer to Fastener Notice in Service Precautions.

Important: Tighten the crankshaft bearing cap inner bolts before tightening the crankshaft bearing cap outer studs.

Install the bearing cap bolts and studs.
1. Tighten the bearing cap 1-4 inner bolts a first pass to 30 Nm (22 lb ft).
2. Tighten the bearing cap 1-4 outer studs a first pass to 30 Nm (22 lb ft).
3. Tighten the bearing cap 1-4 inner bolts a final pass an additional 90 degrees using the J 45059.
4. Tighten the bearing cap 1-4 outer studs a final pass an additional 80 degrees using the J 45059.
5. Tighten the bearing cap 5 bolts and studs to 30 Nm (22 lb ft).
6. Loosen the bearing cap 5 bolts and studs.
7. Tighten the bearing cap 5 bolts and studs to 5 Nm (44 lb in).

7. Thrust the crankshaft firmly rearward.
8. Thrust the crankshaft firmly forward.
0. Tighten the bearing cap 5 inner bolts a first pass to 30 Nm (22 lb ft).
1. Tighten the bearing cap 5 outer studs a first pass to 30 Nm (22 lb ft).
2. Tighten the bearing cap 5 inner bolts a final pass an additional 90 degrees using the J 45059.
3. Tighten the bearing cap 5 outer bolts a final pass an additional 80 degrees using the J 45059.





9. Measure the crankshaft end play as follows:
0. Install the J 8001 or equivalent to the cylinder block, with the dial indicator plunger against one of the counterweights of the crankshaft.
1. Firmly thrust the end of the crankshaft first rearward then forward. This will line up the rear crankshaft bearing and the crankshaft thrust surfaces.
2. With the crankshaft pushed forward, zero the dial indicator. Move the crankshaft rearward, and read the end play measurement on the dial indicator. An optional method is to insert a feeler gage between the crankshaft and the bearing surface and measure the clearance.
3. If the correct end play cannot be obtained, inspect for the following conditions:
^ Verify that the correct size crankshaft bearing has been installed.
^ Inspect the crankshaft thrust wall surface or surfaces for wear and/or excessive runout.
4. Inspect the crankshaft for binding. Turn the crankshaft to check for binding. If the crankshaft does not turn freely, loosen the crankshaft bearing bolts and studs, one cap at a time, until the tight bearing is located. The following condition or conditions could cause a lack of clearance at the bearing:
^ Burrs on the crankshaft bearing cap
^ Foreign material between the bearing and the block
^ Foreign material between the bearing and the bearing cap
^ A faulty crankshaft bearing
^ Improper size bearing





10. Important:
^ Ensure that the crankshaft position (CKP) sensor is fully seated against the crankshaft reluctor ring. The upper flange on the sensor MAY NOT seat against the engine block.
^ The CKP sensor bolt has a thread sealant applied to the threads. The thread sealant may have come off during the removal of the bolt. Ensure that the bolt hole is clean of any debris before installing the CKP sensor bolt.

Inspect the CKP sensor O-ring for cuts, cracks, tears or damage. Replace the O-ring as needed. Lubricate the CKP sensor O-ring with clean engine oil.

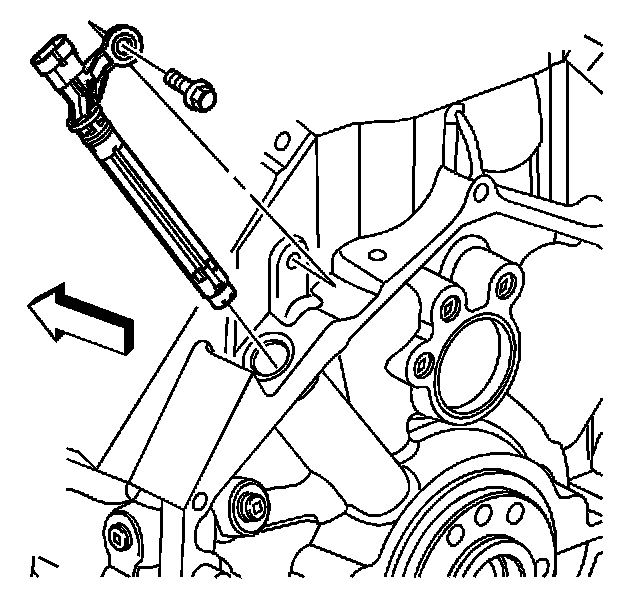

11. Install the CKP sensor into the block.There may be a slight resistance as the O-ring seats into the engine block.
12. Apply thread adhesive GM P/N 12345493, (Canadian P/N 10953488), or equivalent to the CKP sensor bolt.
13. Install the CKP sensor bolt.
^ Tighten the CKP sensor bolt to 12 Nm (106 lb in).
