Speaker
>>
Speaker - RF Instrument Panel (I/P)
Speaker - RF Instrument Panel (I/P)

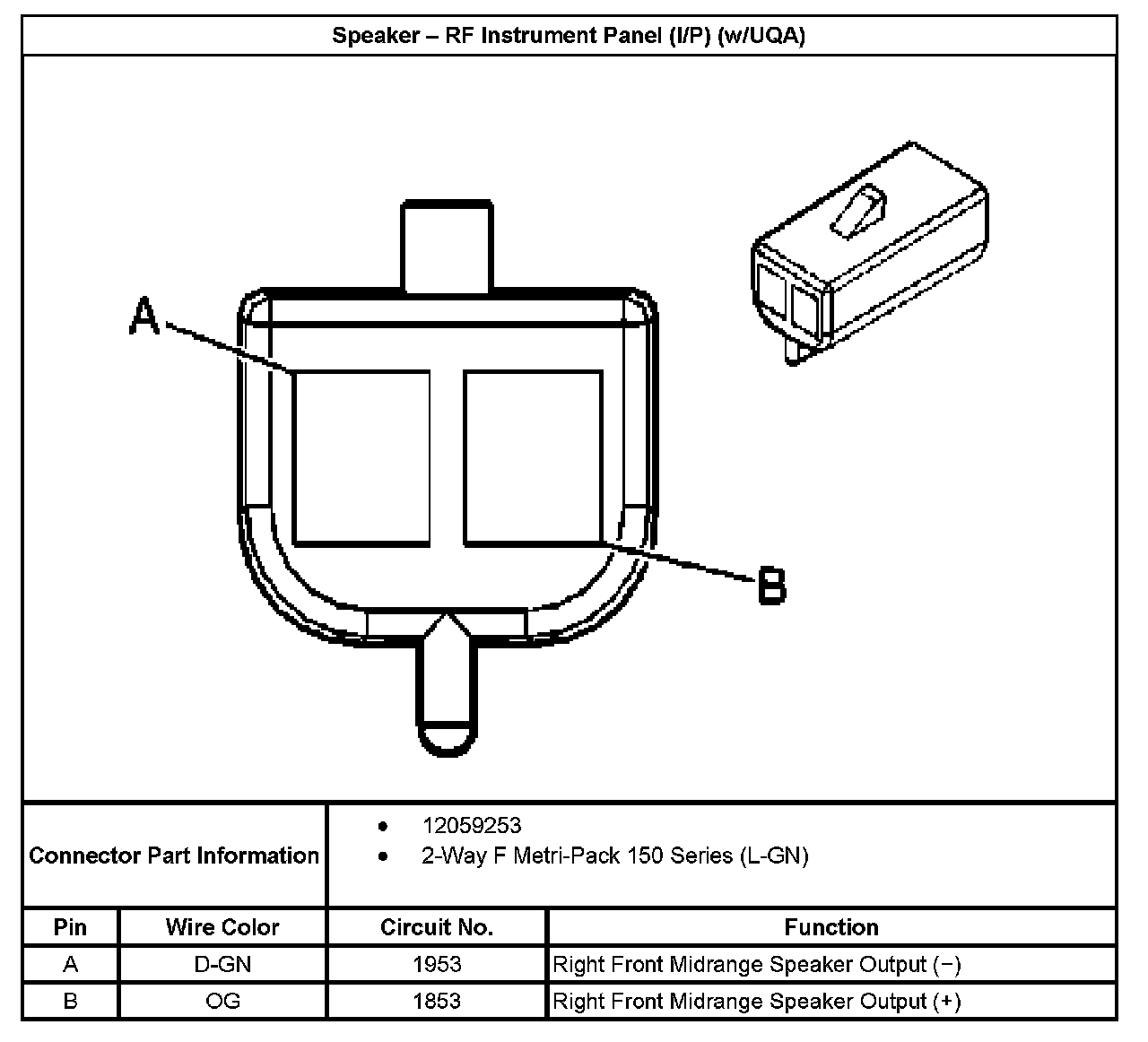

Speaker - RF Instrument Panel (I/P) (with RPO Code UQA):
