Suspension Control ( Automatic - Electronic )

Air Suspension Compressor Assembly C1:

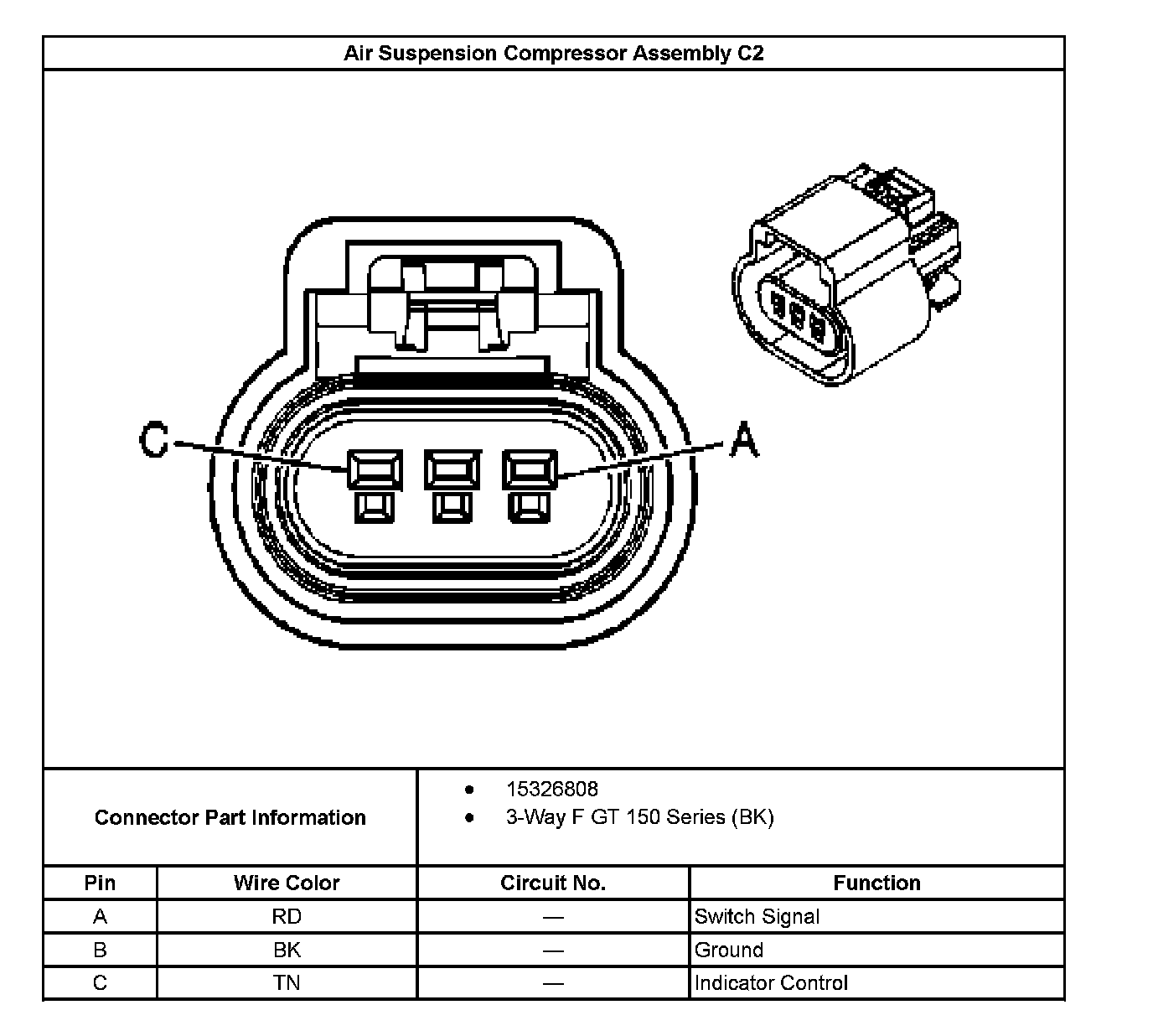

Air Suspension Compressor Assembly C2:

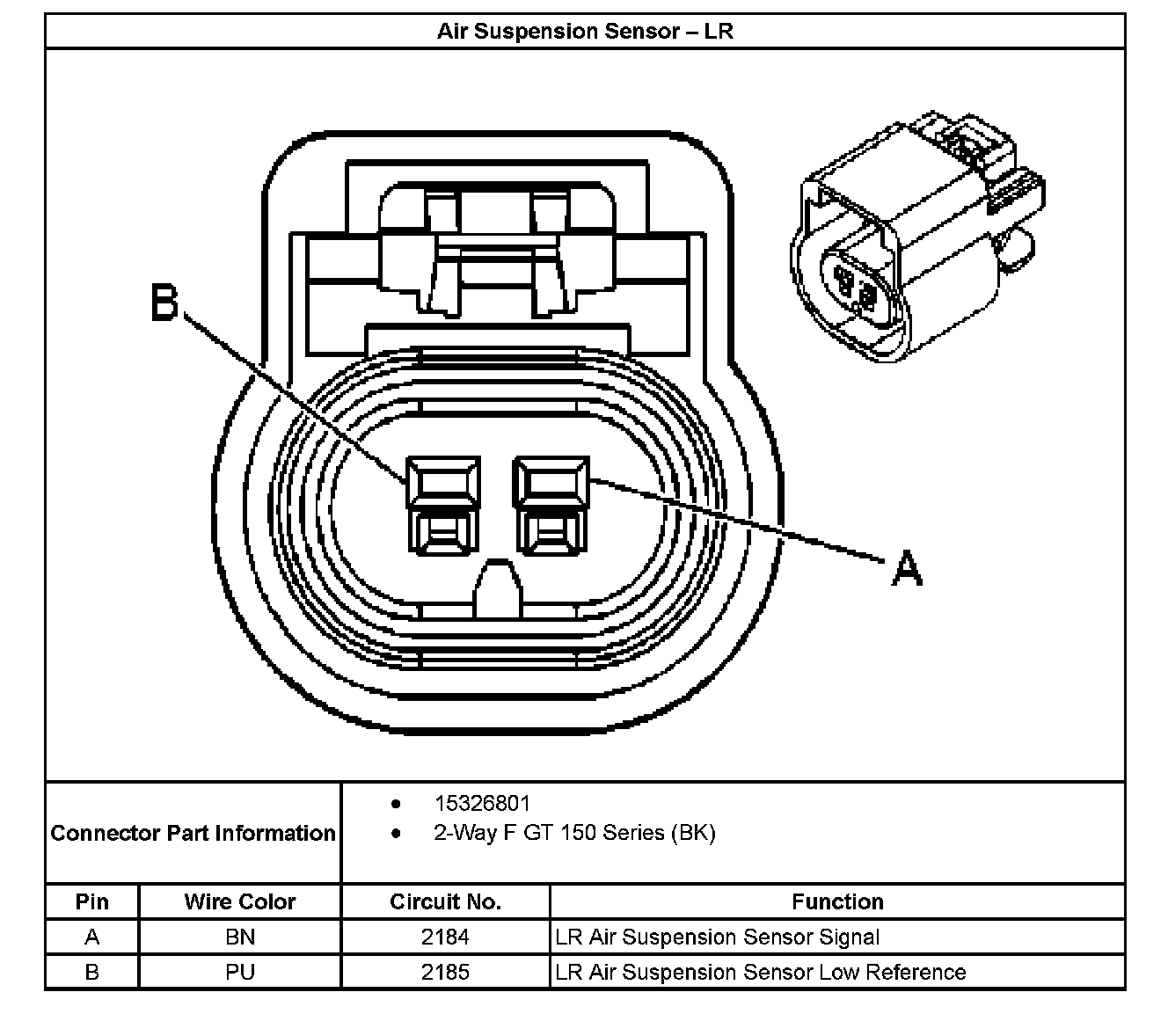

Air Suspension Sensor - LR:

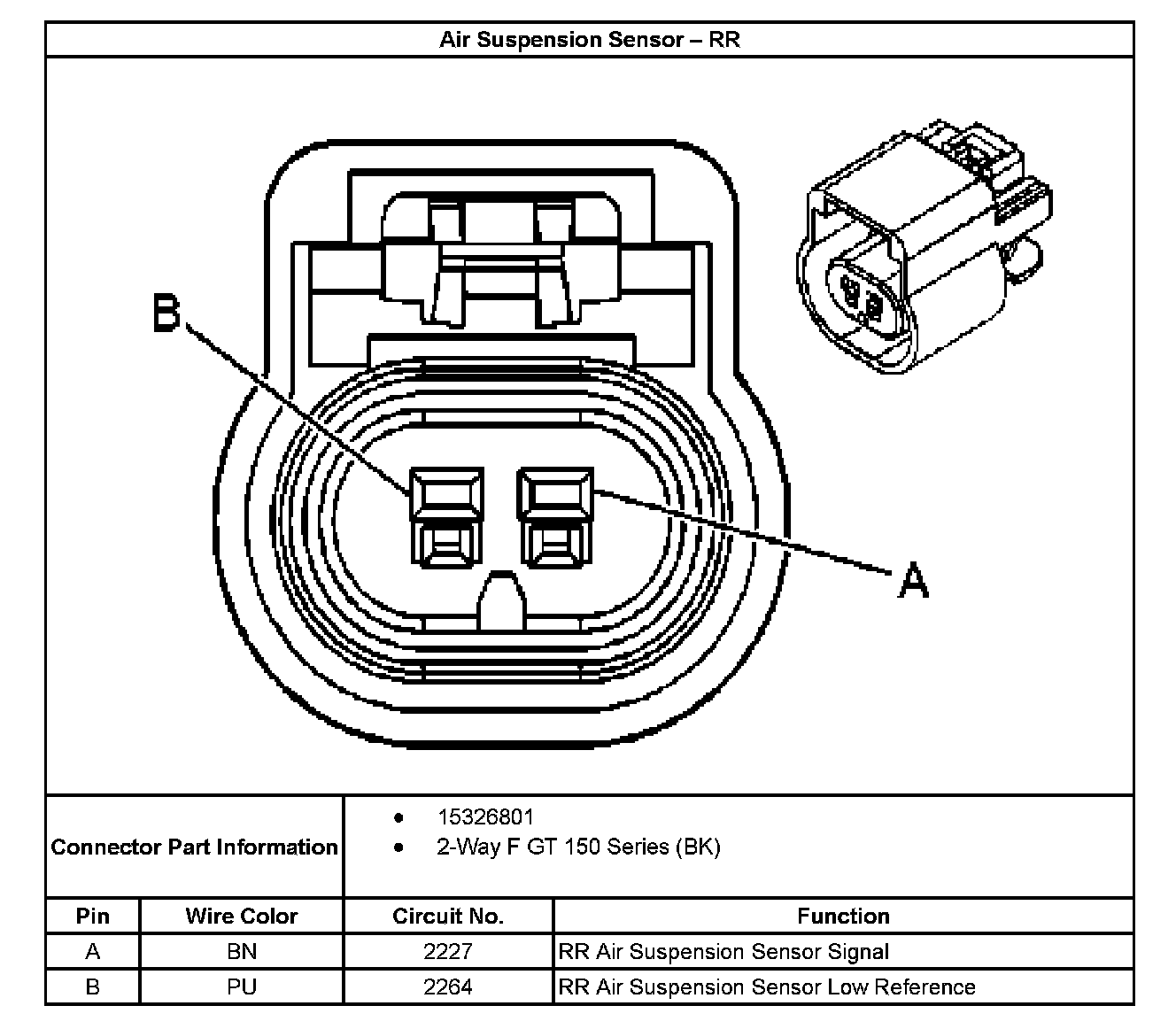

Air Suspension Sensor - RR:
