Map Light: Diagrams

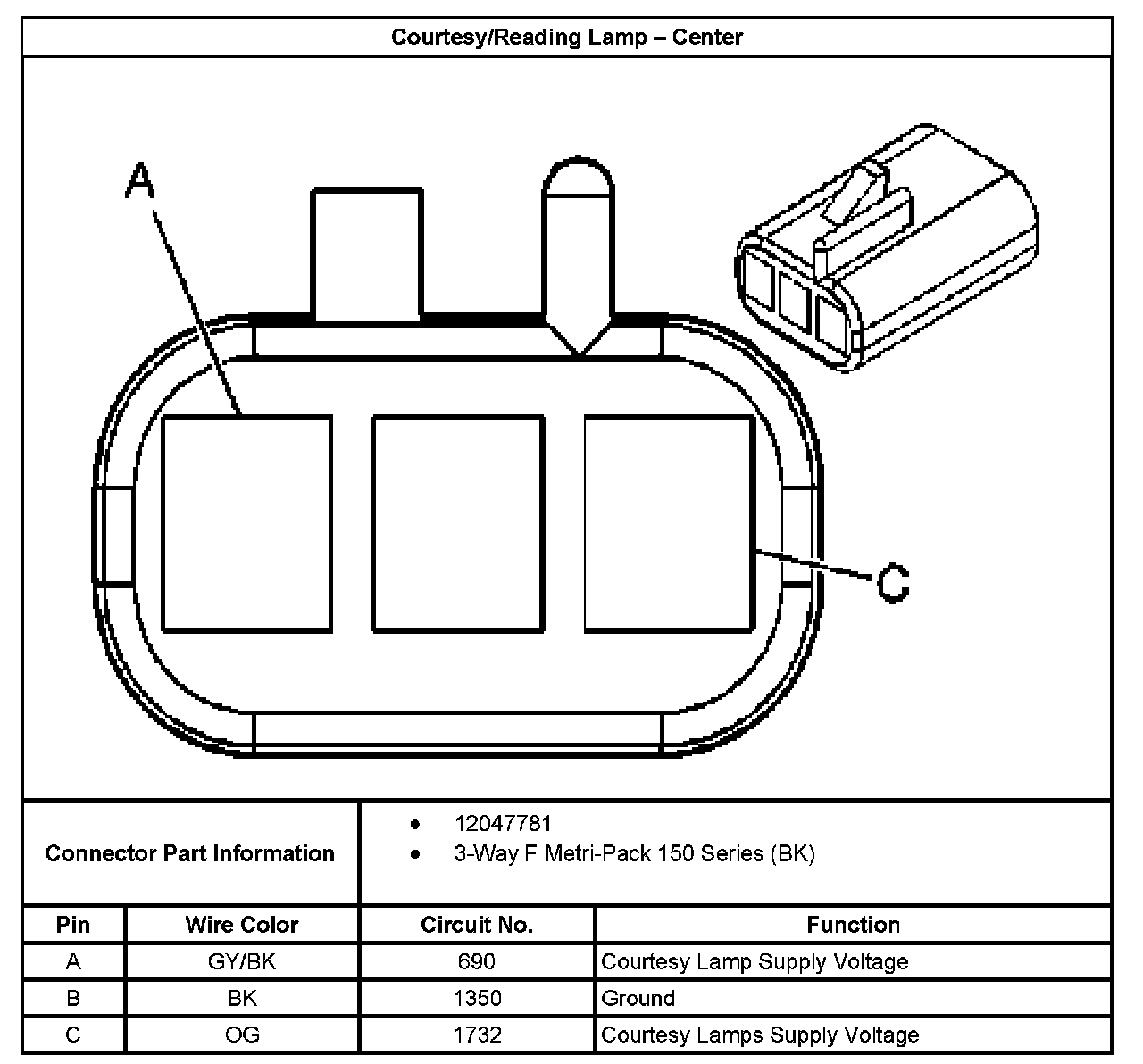

Courtesy/Reading Lamp - Center:

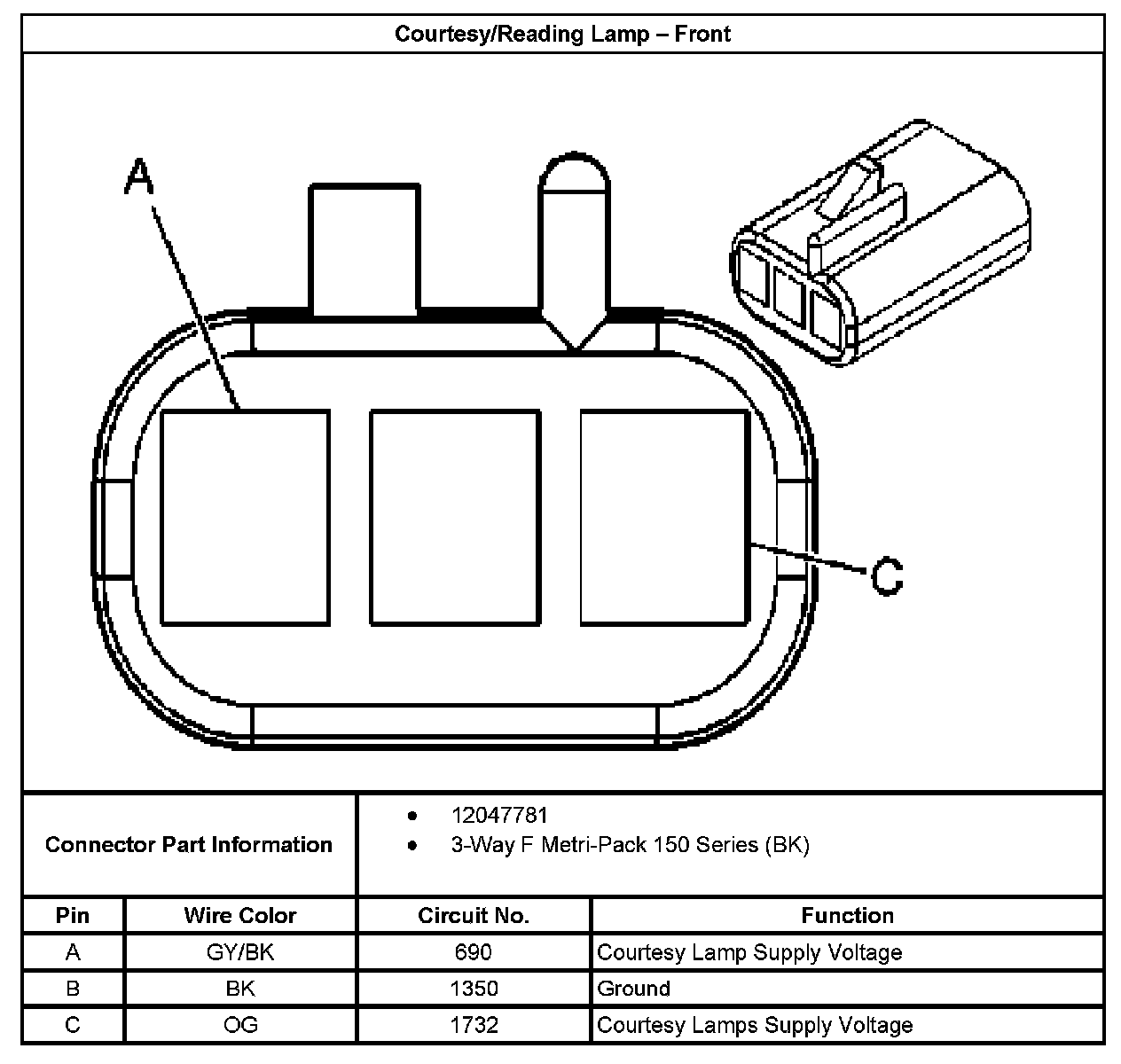

Courtesy/Reading Lamp - Front:

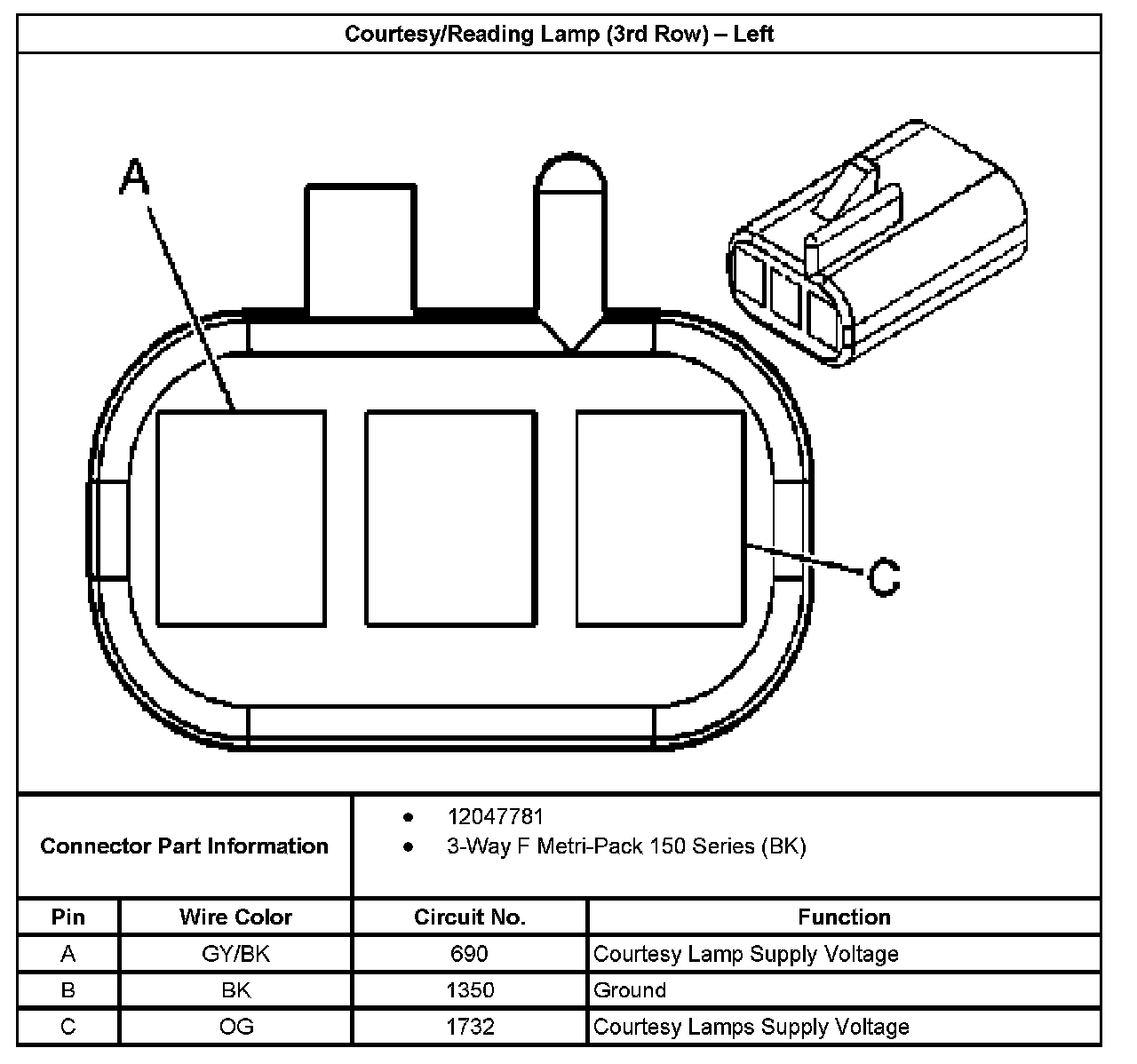

Courtesy/Reading Lamp (3rd Row) - Left:

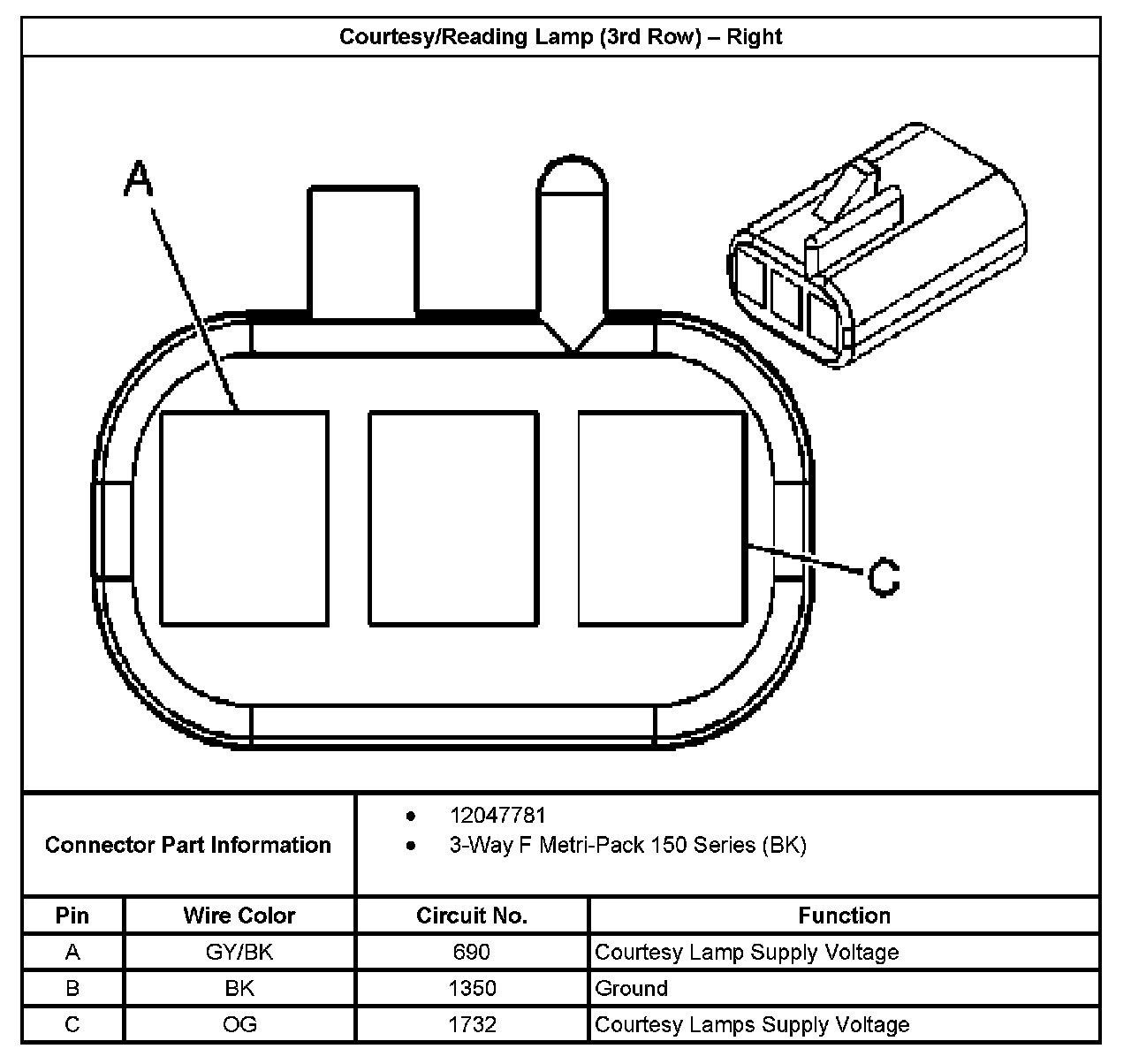

Courtesy/Reading Lamp (3rd Row) - Right:
