Home >> Chevy Truck >> 2005 >> TrailBlazer 4WD V8-5.3L VIN M >> Repair and Diagnosis >> Diagrams >> Connector Views >> C200 - C299 >> C221

C221

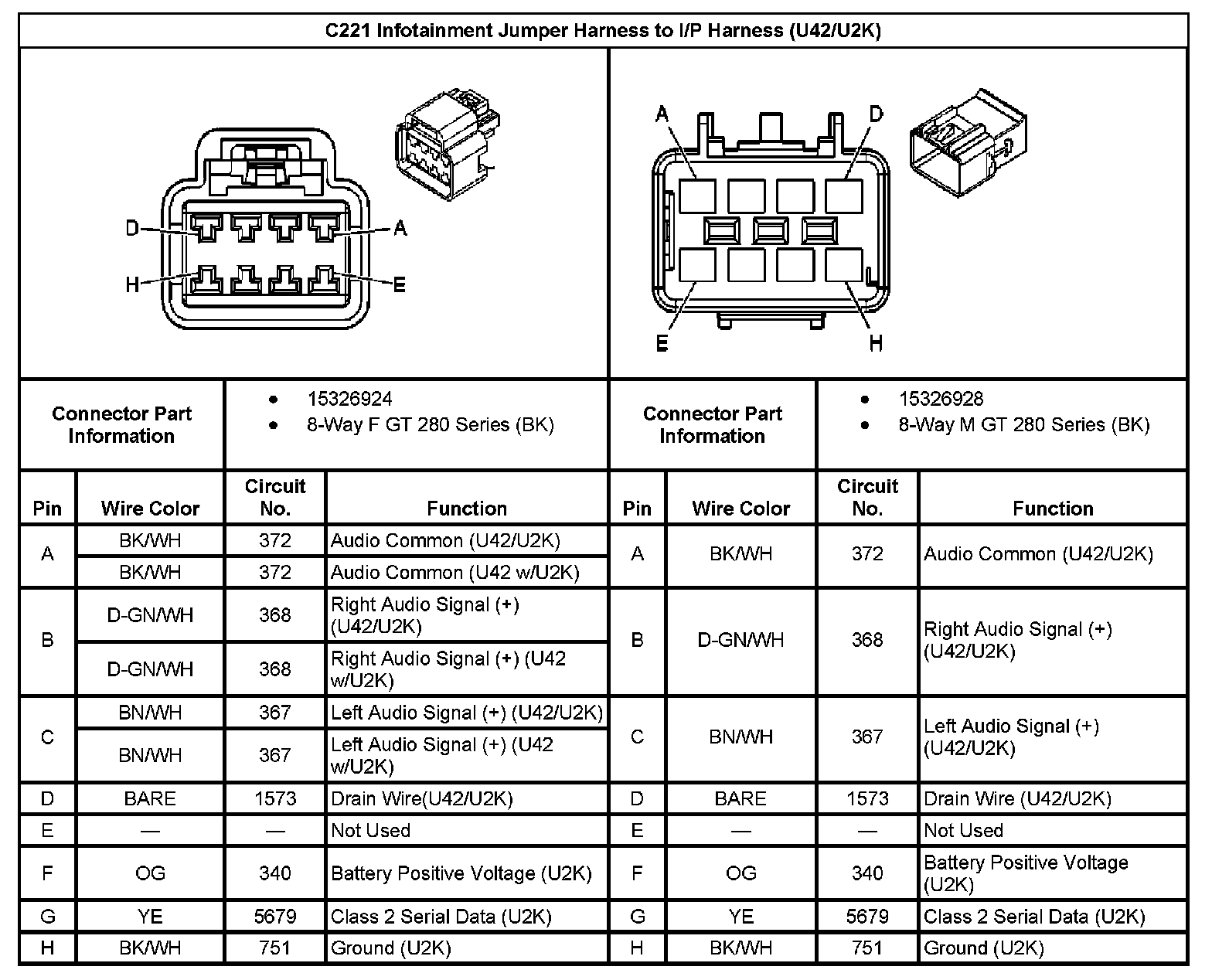

C221 Infotainment Jumper Harness To I/P Harness (With RPO Code U42/U2K):
