Cooling System

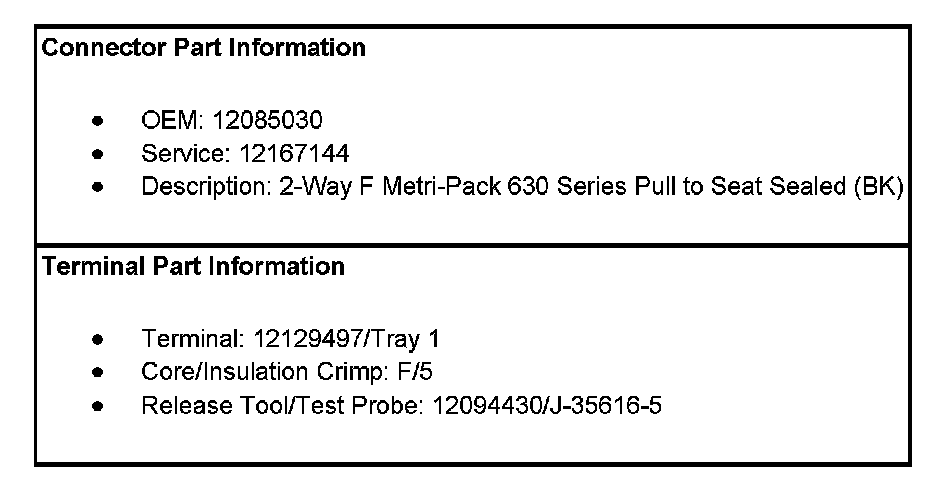

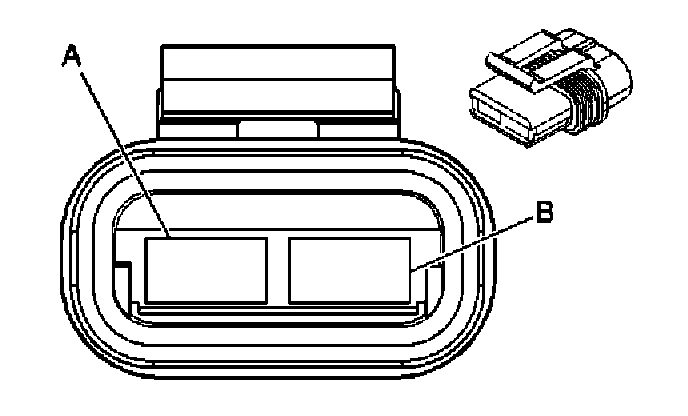

Left Cooling Fan 2-Way Connector End Views - 1:

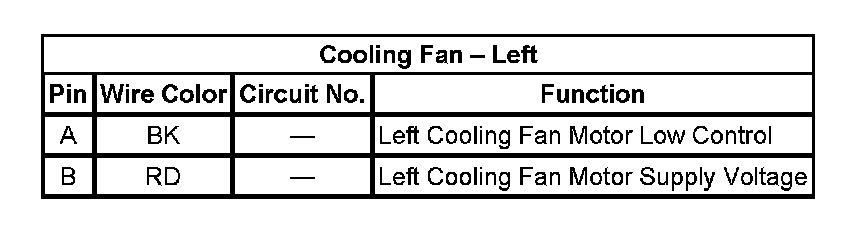

Left Cooling Fan 2-Way Connector End Views - 2:



Right Cooling Fan 2-Way Connector End Views - 1:

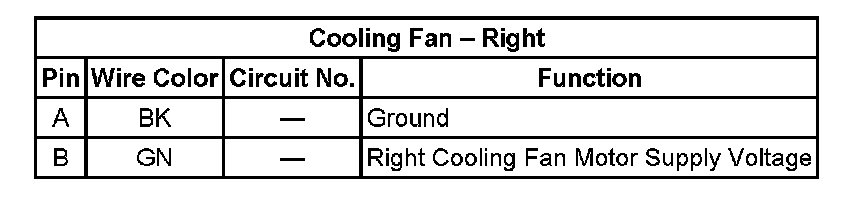

Right Cooling Fan 2-Way Connector End Views - 2:
