Side Air Bag
Side Air Bag
Inflatable Restraint Side Impact Module - Left (With RPO Code AJ7):

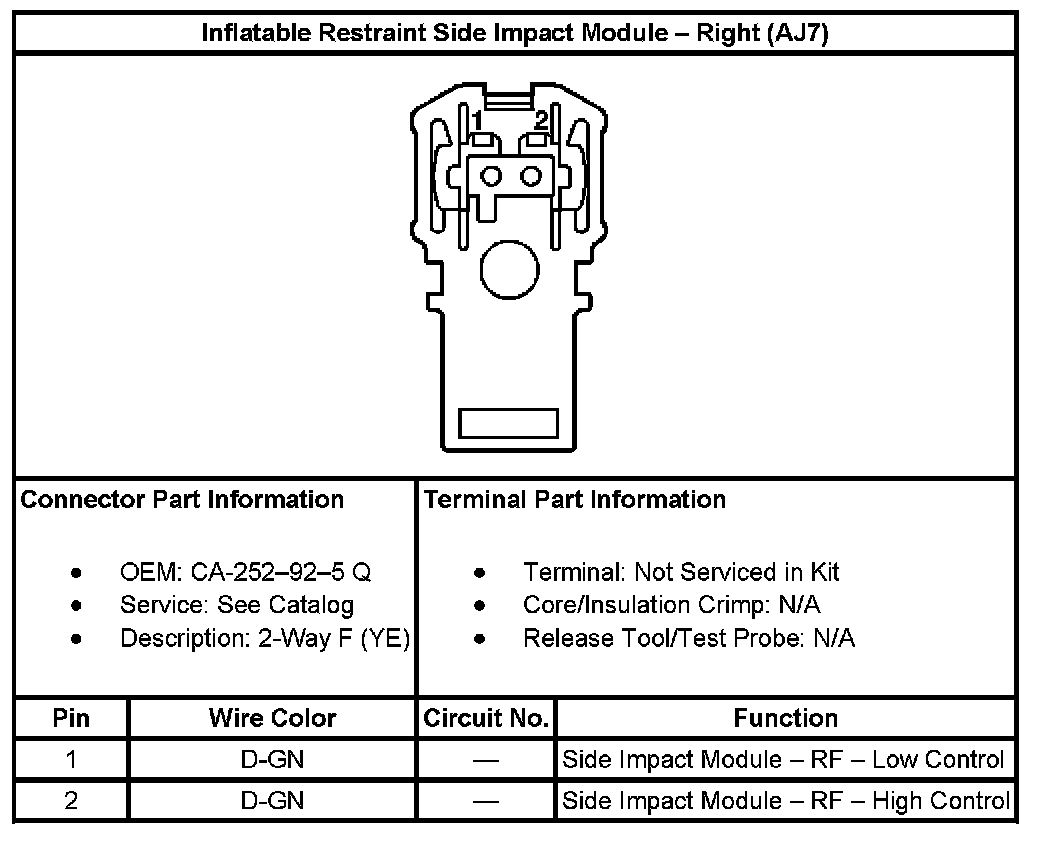

Inflatable Restraint Side Impact Module - Right (With RPO Code AJ7):
