Map Light: Diagrams

Courtesy/Reading Lamp - Center:



Courtesy/Reading Lamp - Front:



Roof Rail Reading Lamp - Left:

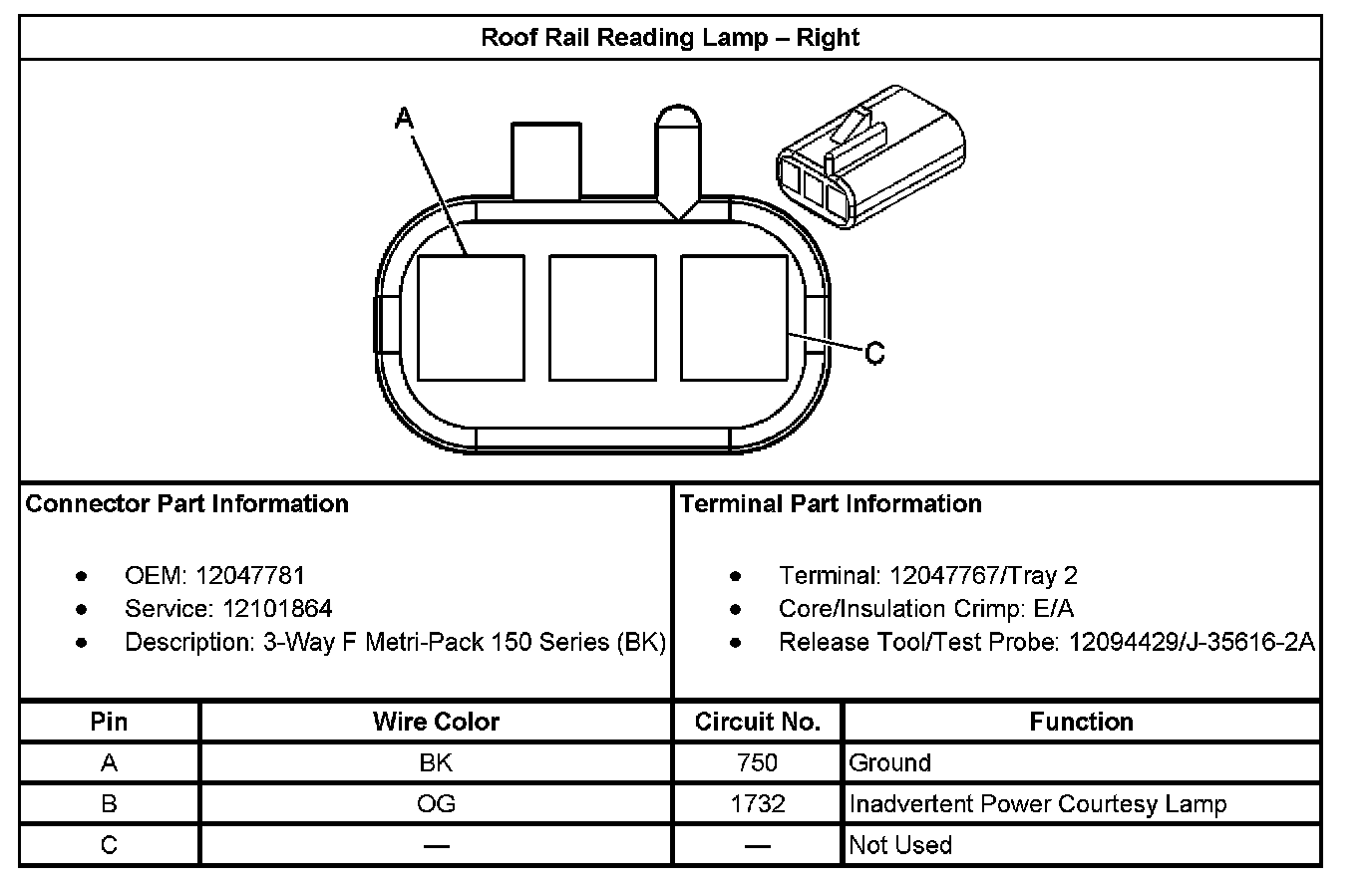

Roof Rail Reading Lamp - Right:
