Windshield Washer Pump: Diagrams

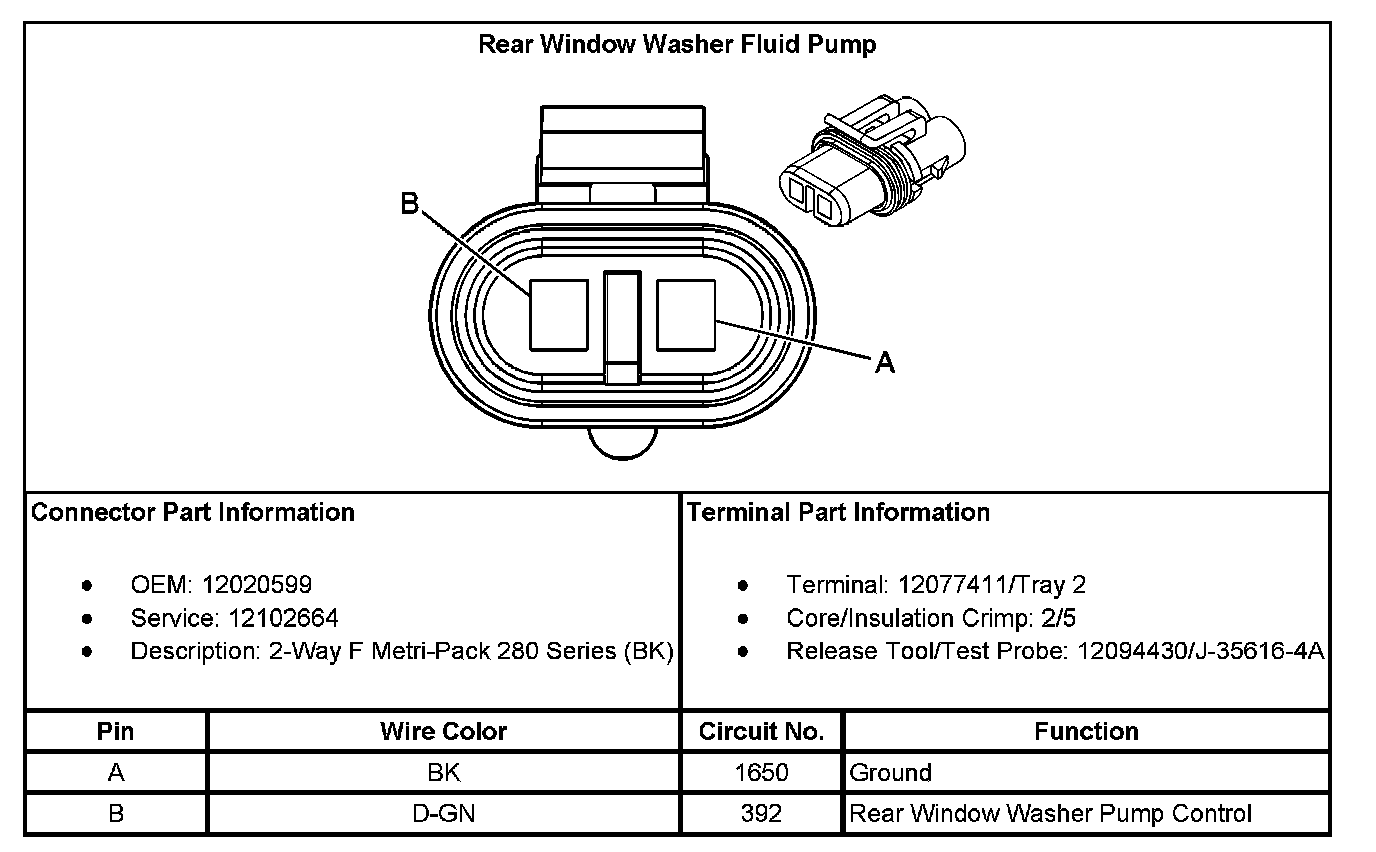

Rear Window Washer Fluid Pump:



Rear Window Washer Fluid Pump Relay:

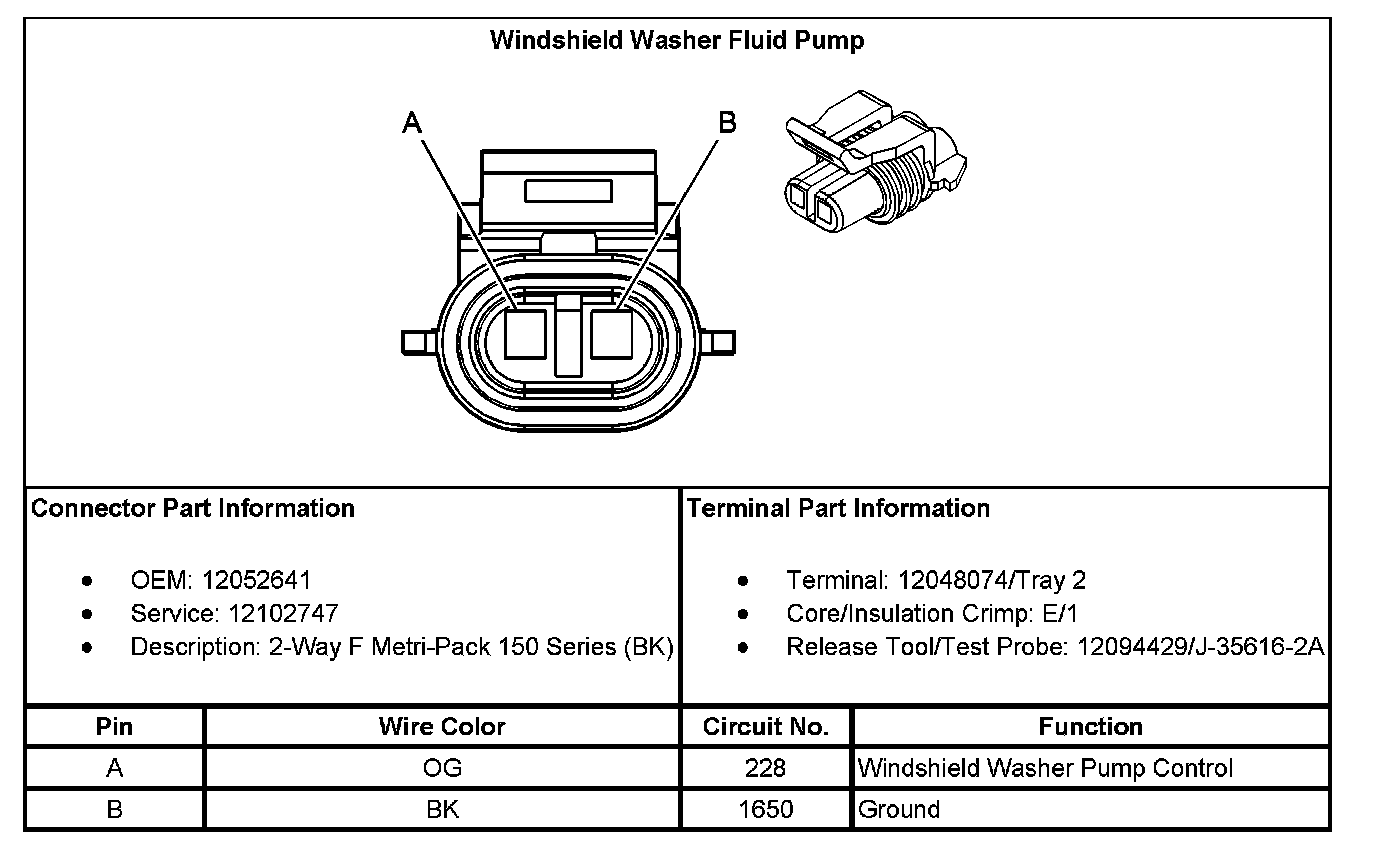

Windshield Washer Fluid Pump:
