Antilock Brakes / Traction Control Systems

ABS Diagrams

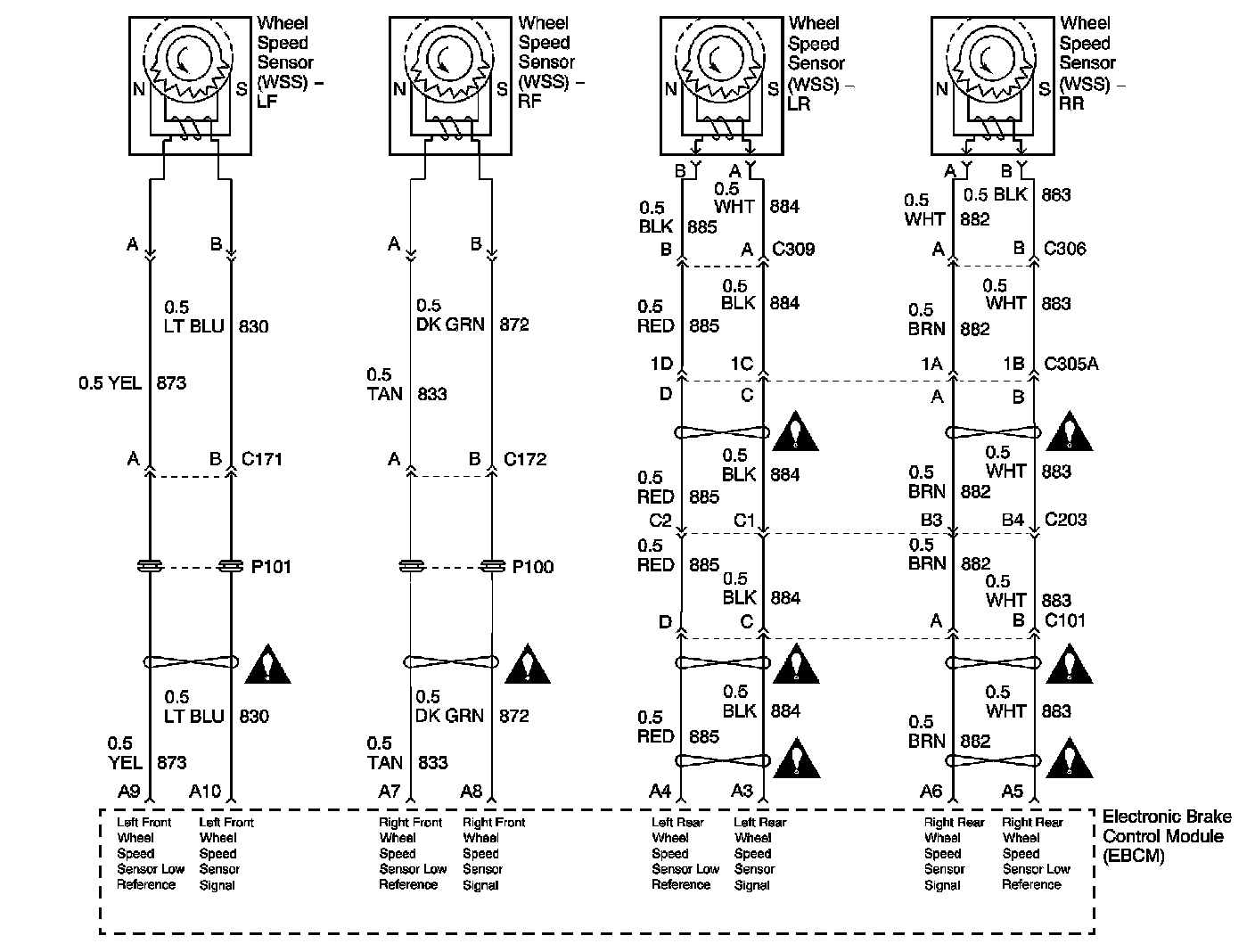

ABS Diagram 1:

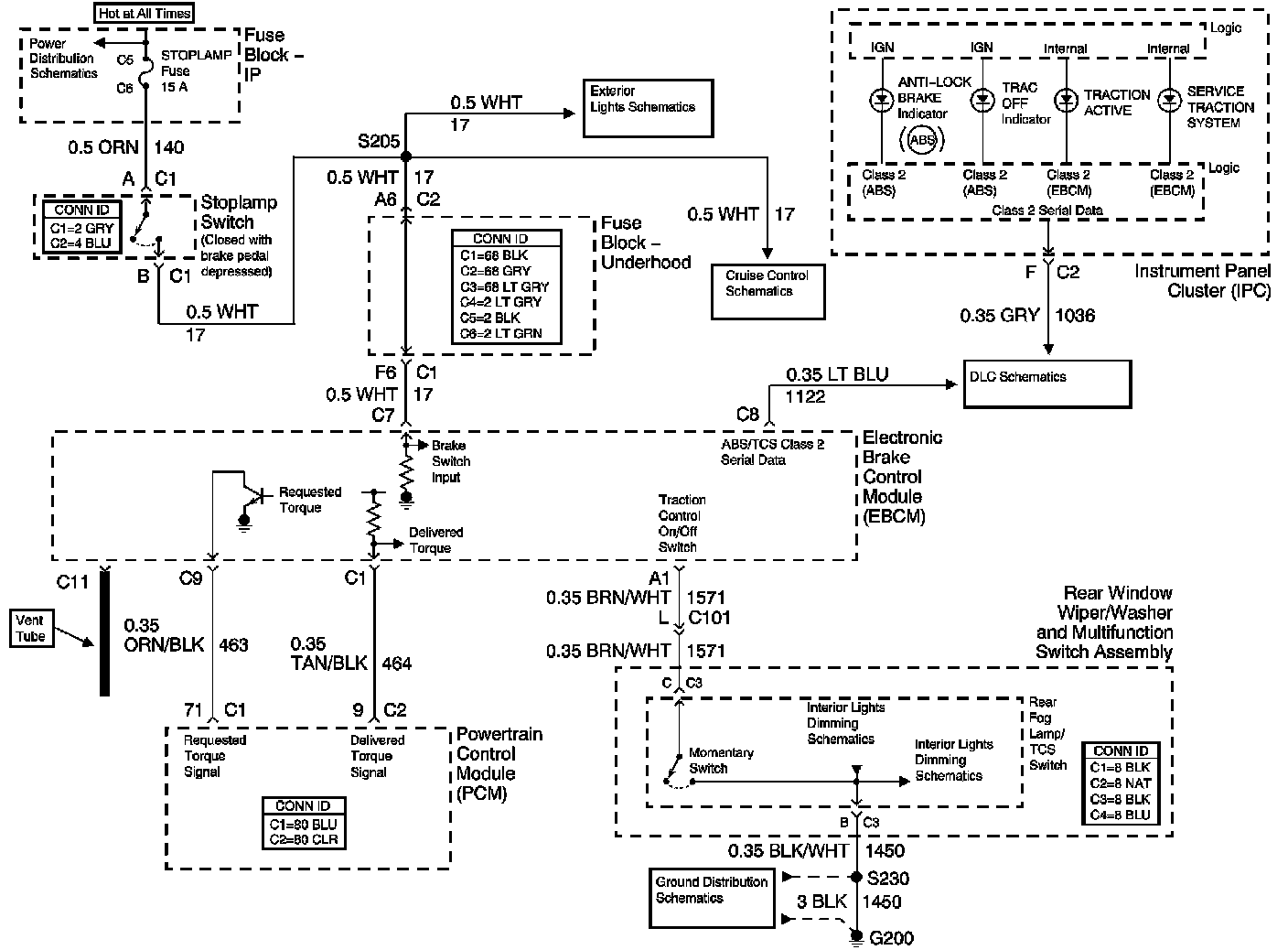

Power and Ground 2:

ABS Diagram 3:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
