Cigarette Lighter: Service and Repair

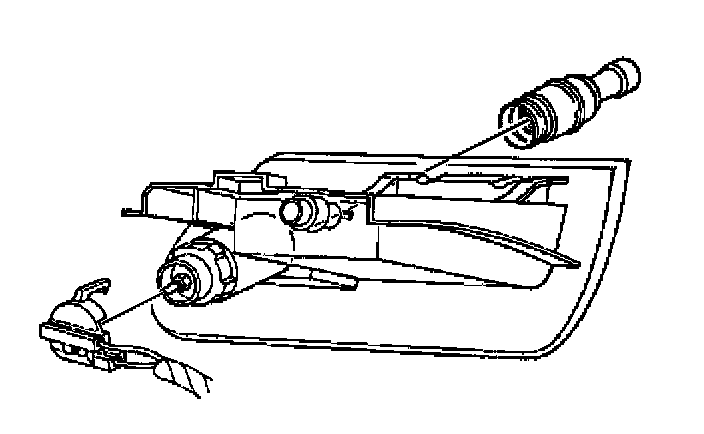

CIGAR LIGHTER HOUSING REPLACEMENT - INSTRUMENT PANEL (I/P)

TOOLS REQUIRED
J 42059 Cigar Lighter Socket Remover

REMOVAL PROCEDURE




1. Remove the cigar lighter fuse.
2. Place one side of the T-portion of J 42059 into the tab window and angle the other portion into the opposite tab window. Pull the cigar lighter housing straight out.
3. Remove the tool from the cigar lighter housing.
4. Disconnect the electrical connector from the front console cigar lighter housing.
5. Remove the cigar lighter housing retainer by using your index finger and pulling out.

INSTALLATION PROCEDURE




1. Position the cigar lighter housing retainer, placing the key to the slot into the power accessory housing hole.
2. Install the cigar lighter housing retainer by pressing into place until fully seated.
3. Connect the electrical connector to the front console cigar lighter housing.
4. Position the cigar lighter housing to the retainer.
5. Install the cigar lighter housing into the front console. Press into place until fully seated.
6. Install the cigar lighter fuse.
7. Inspect the cigar lighter for proper operation.
