Brake Light Switch: Diagrams

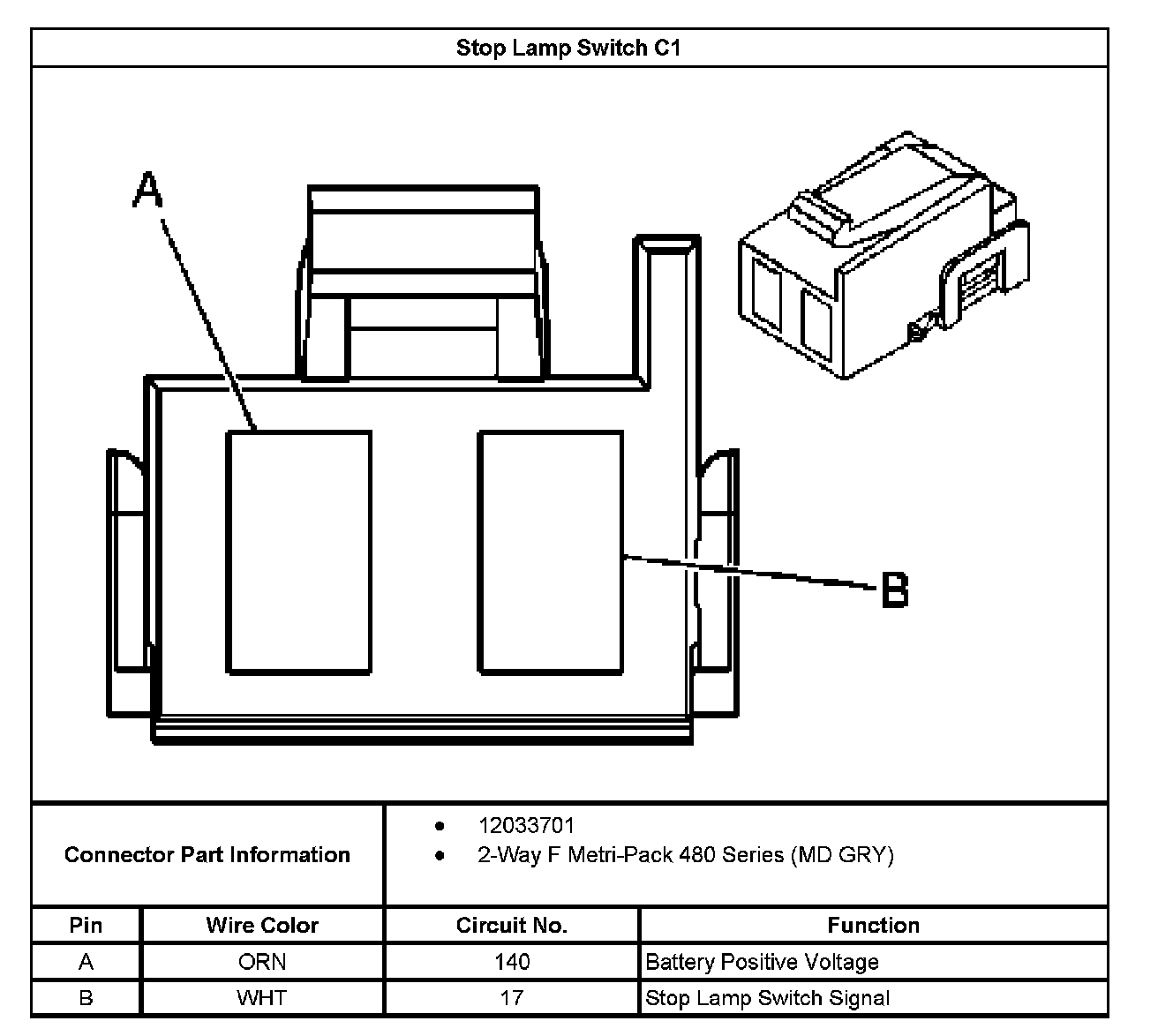

Stop Lamp Switch C1:

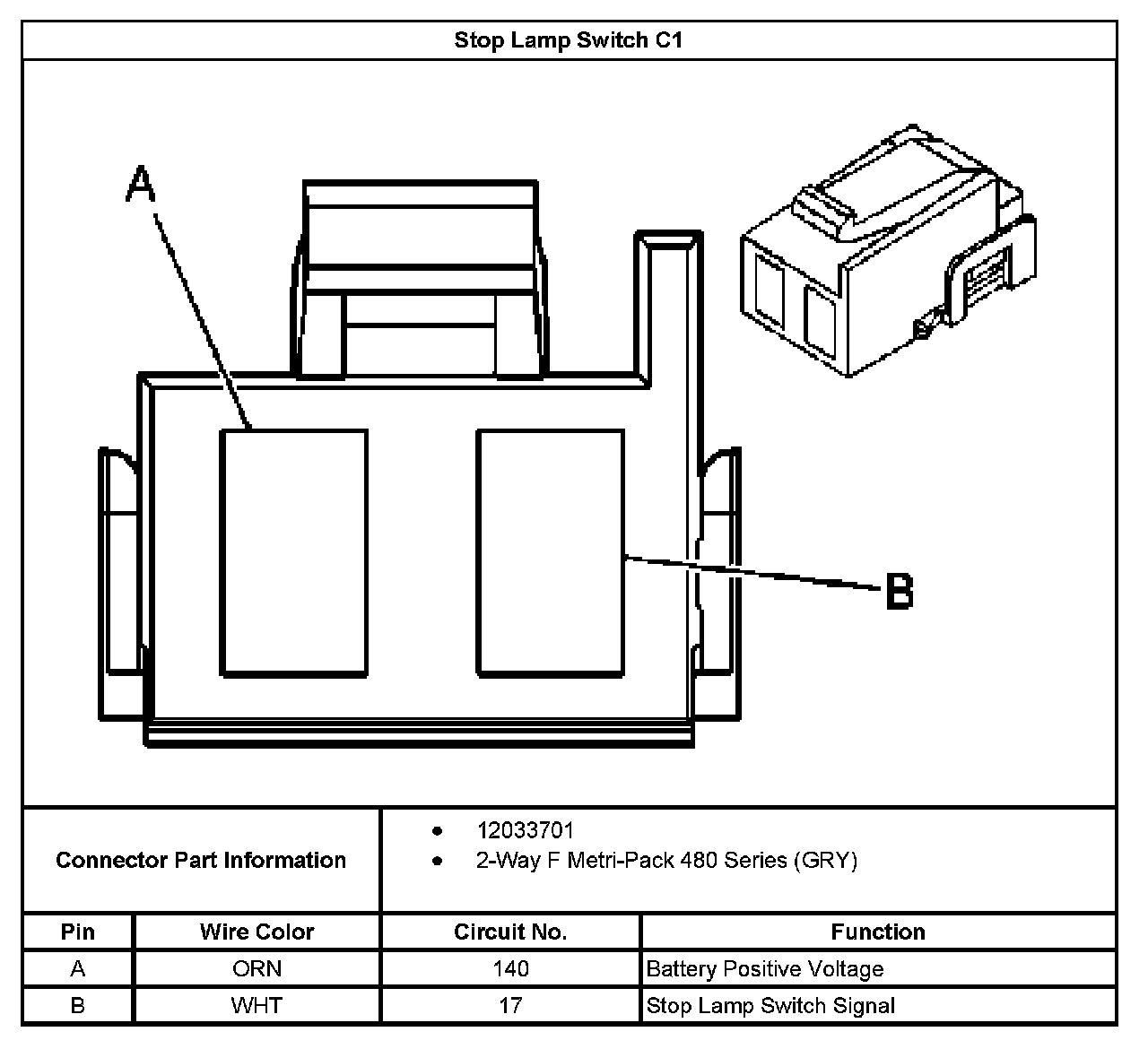

Stop Lamp Switch C1:
Stop Lamp Switch/TCC Switch Connector, Wiring Harness Side:
