License Plate Lamp: Service and Repair

LICENSE LAMP REPLACEMENT

REMOVAL PROCEDURE

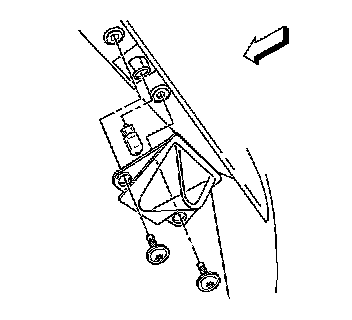

1. Remove the screws from the license lamp lens.
2. Remove the license lamp lens from the liftgate.
3. Pull the bulb from the license lamp socket.

INSTALLATION PROCEDURE




1. Press the bulb into the license lamp socket.
2. Install the license lamp lens to the liftgate.
3. Install the screws to the license lamp lens.

Tighten the screws to 2 N.m (18 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.
