Knee Diverter: Service and Repair

KNEE BOLSTER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the IP insulator.

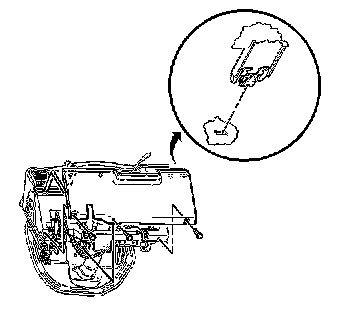

2. Remove the bolts/screws from the bottom of the knee bolster.
3. Pull on the knee bolster in order to release the upper clips.

INSTALLATION PROCEDURE




1. Perform the following steps in order to install the knee bolster to the instrument panel:
1. Align the clips with the slots in the instrument panel.
2. Push in, in order to secure the knee bolster.
2. Install the bolts/screws to the bottom of the knee bolster.

Tighten the bolts/screws to 2.5 N.m (22 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the IP insulator.
