Wiper Switch: Diagrams

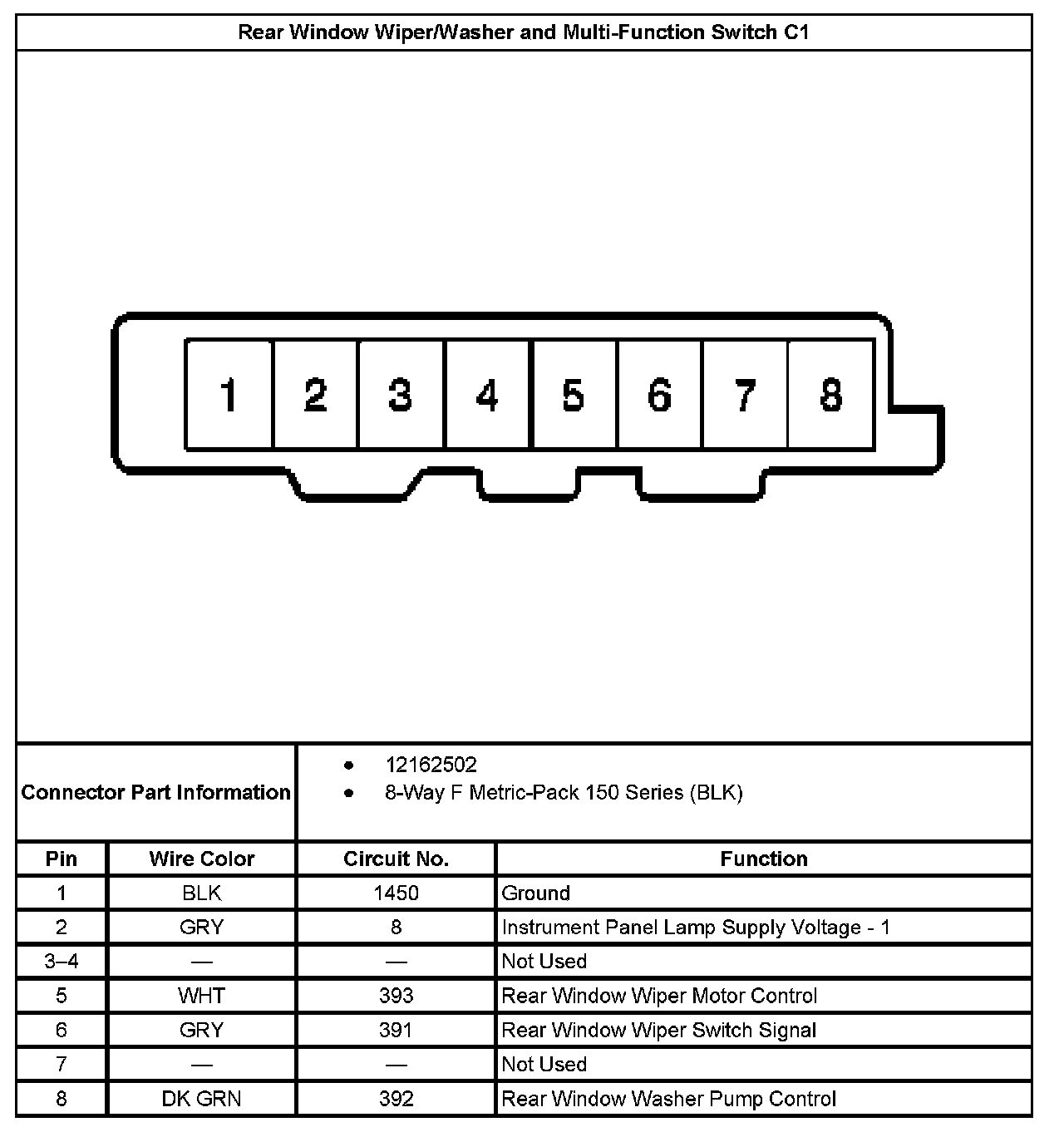

Rear Window Wiper/Washer And Multi-Function Switch C1:



Rear Window Wiper/Washer and Multifunction Switch Connector C2, Blower Switch - Auxiliary:
