Collision Avoidance and Parking Assist Systems
>>
Parking Assist Switch
Parking Assist Switch
Interior Lamp And Multifunction Switch Assembly C4 - Rear Quarter Window Switch And Rear Parking Aid Override Switch:

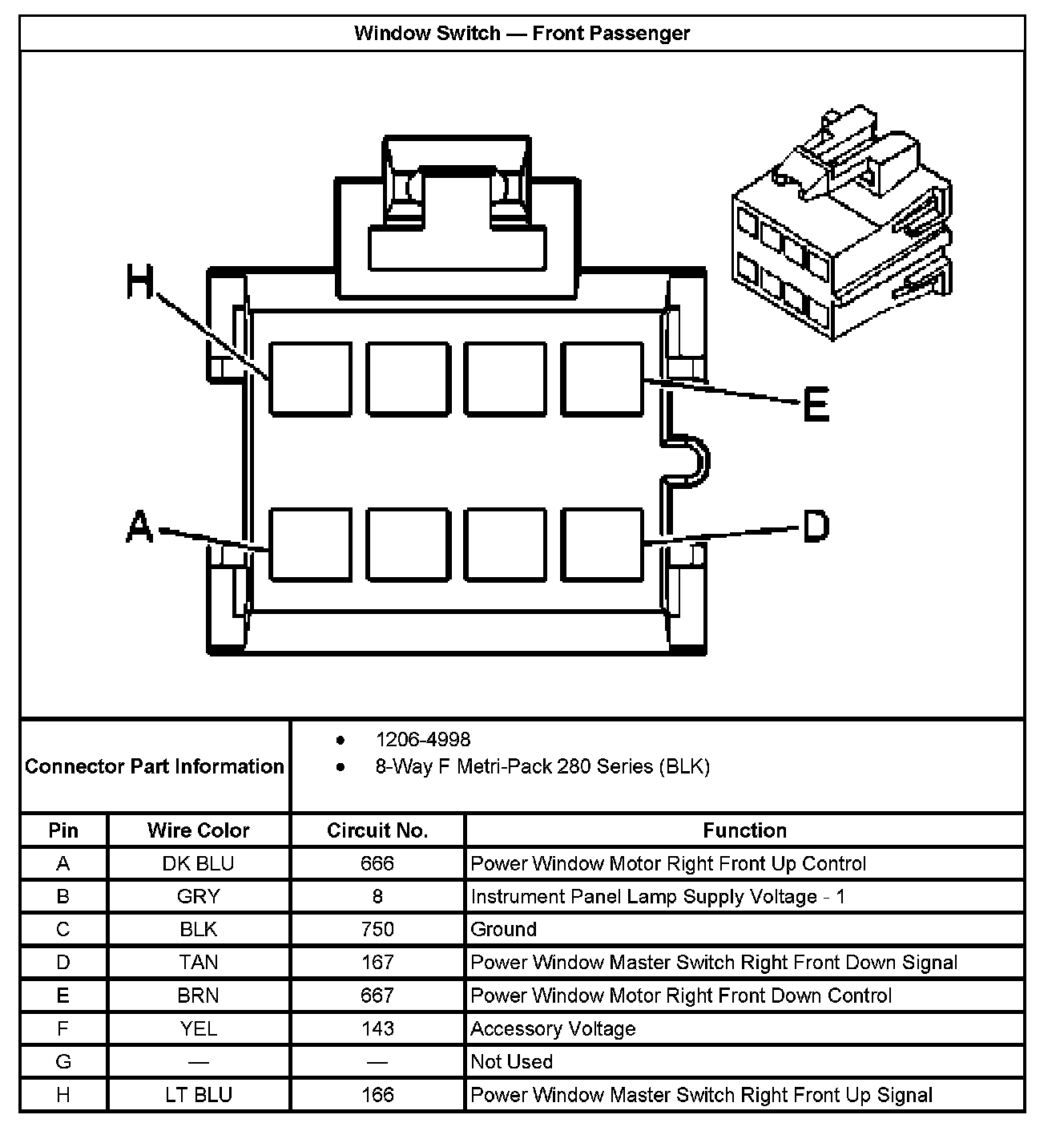

Window Switch - Front Passenger:

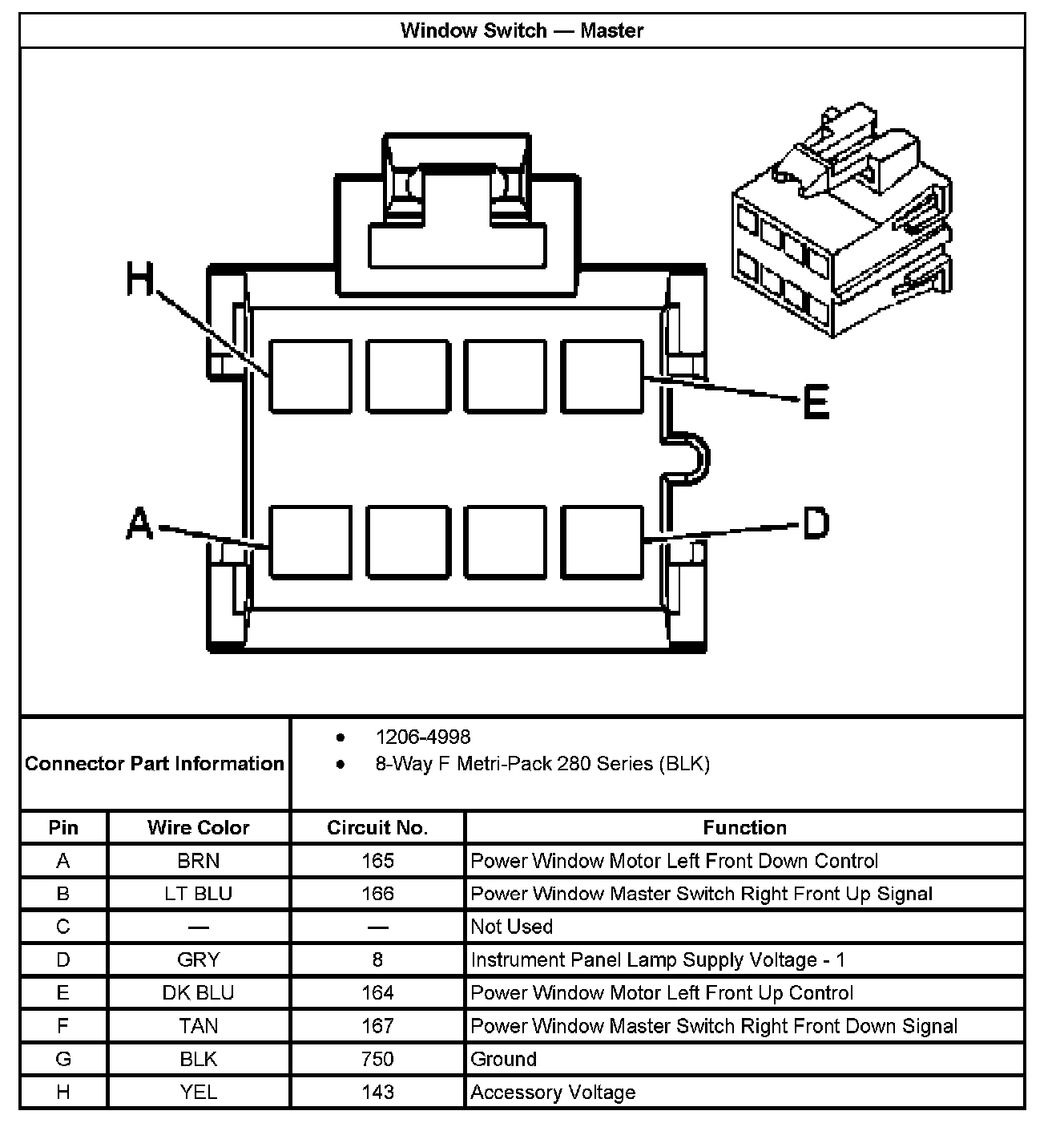

Window Switch - Master:
