Venture FWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine Compartment Views
>>

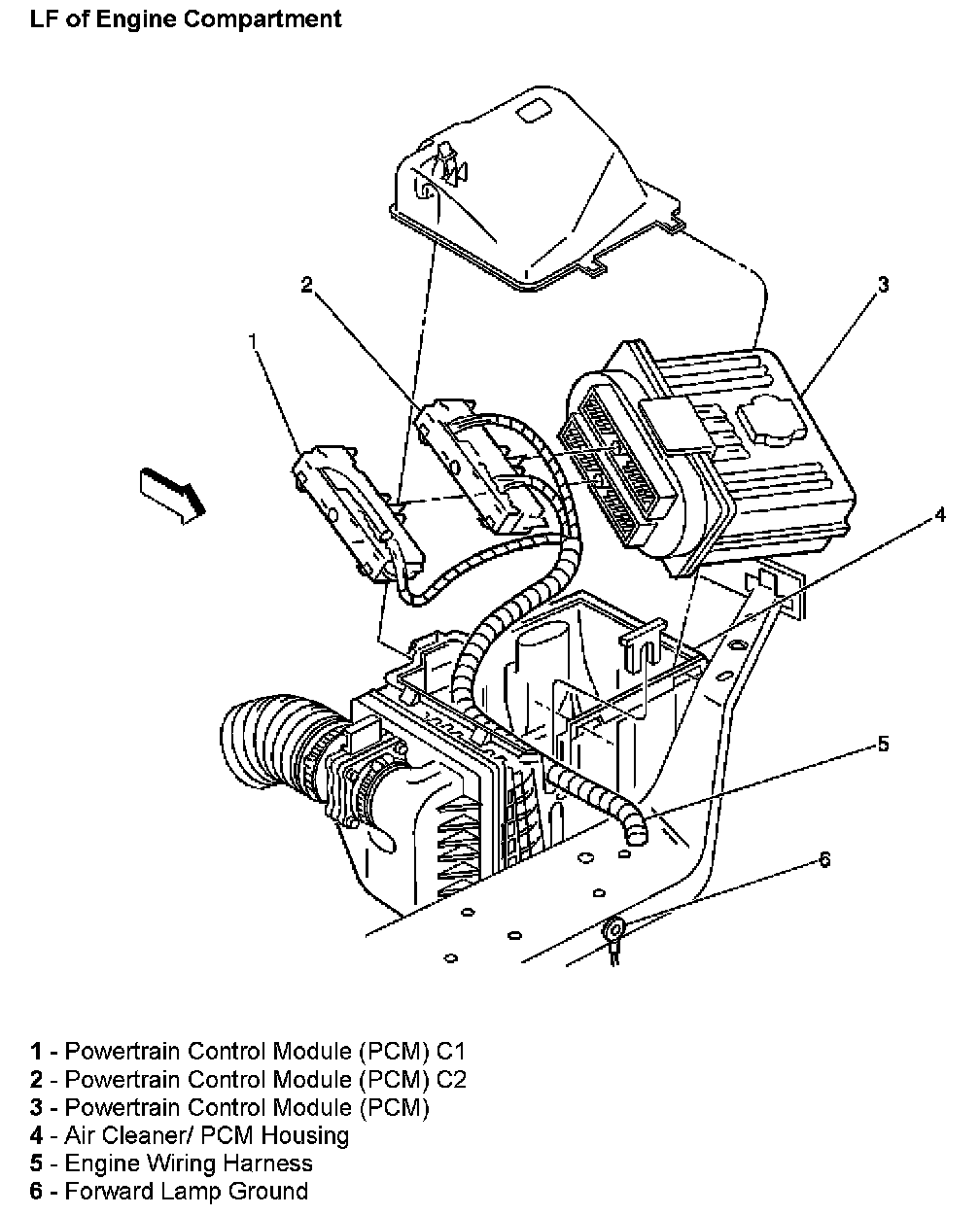

LF of Engine Compartment
LF of Engine Compartment
LF Of Engine Compartment:
