RH Side of I/P, Bottom of Cross Car Beam
RH Side of I/P, Bottom of Cross Car Beam

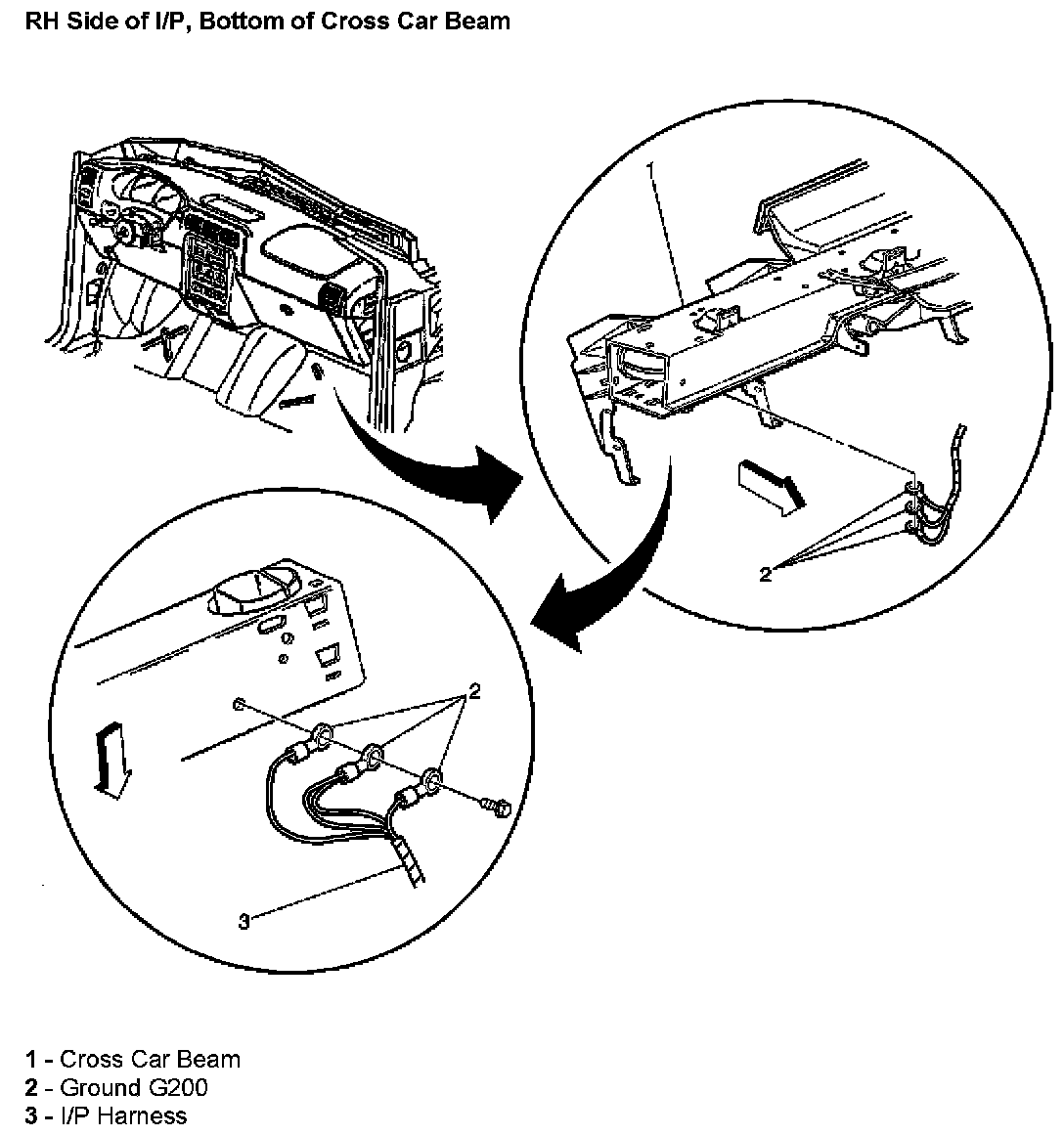

RH Side Of I/P, Bottom Of Cross Car Beam:
