Cylinder Block Assembly: Specifications

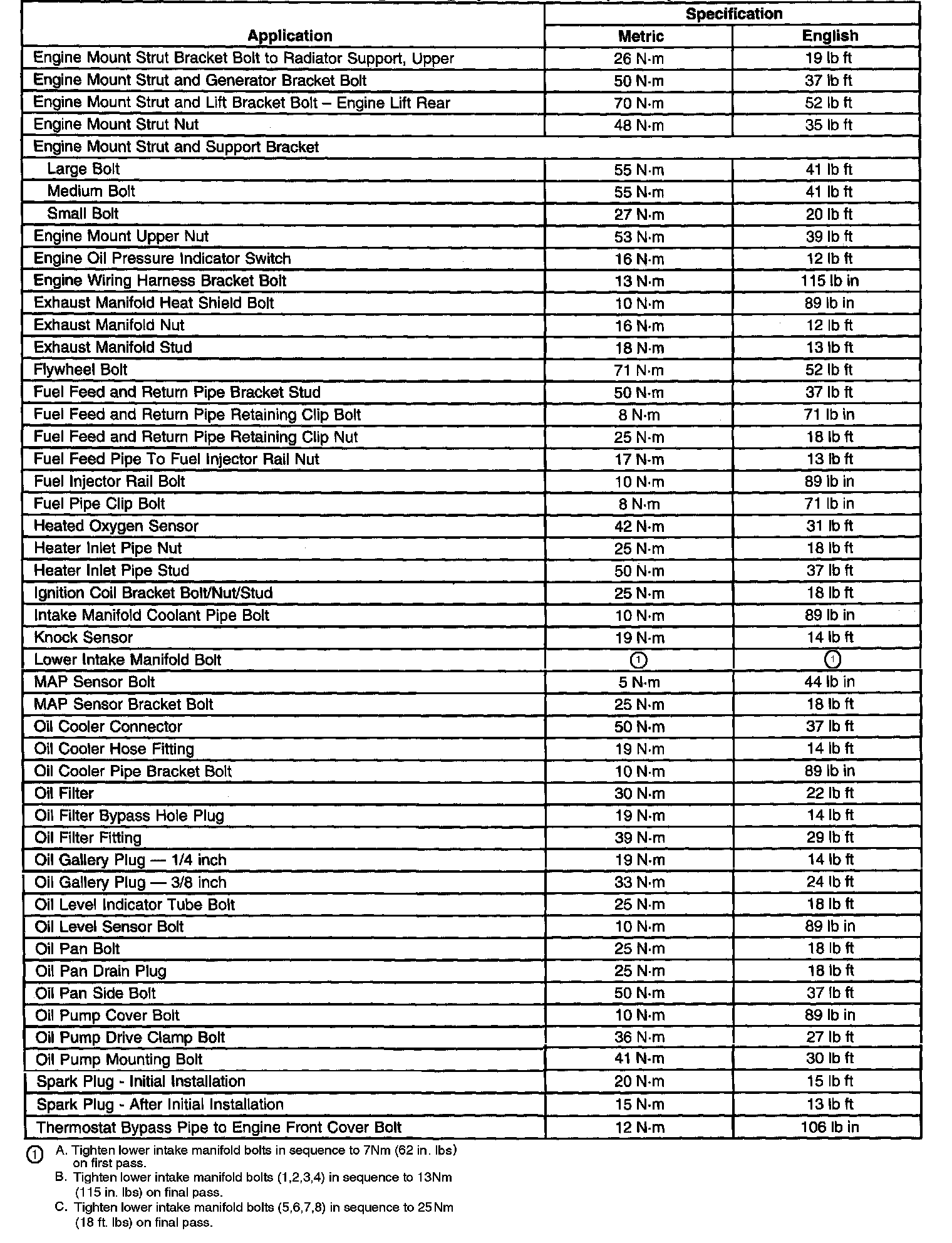

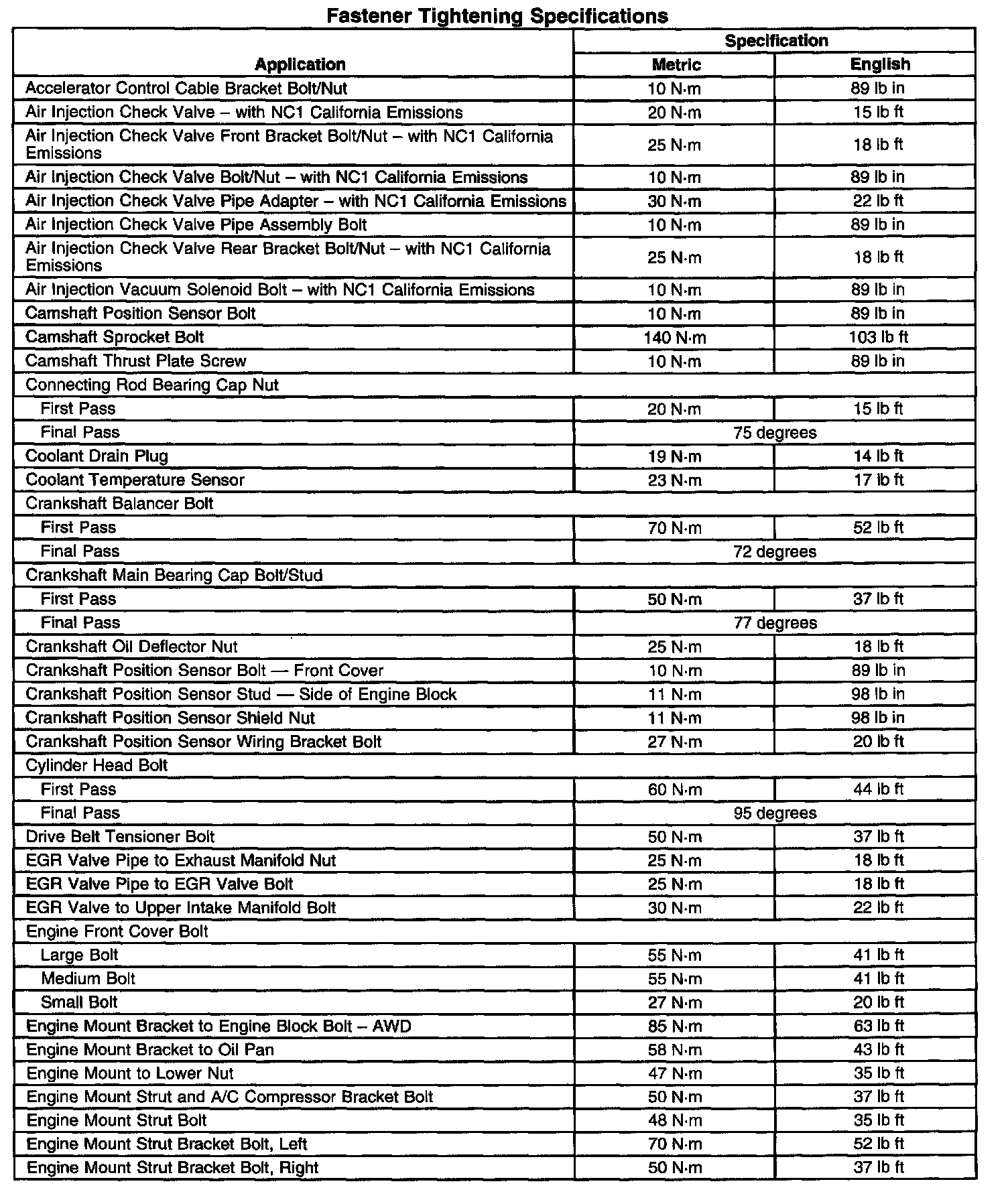

Fastener Tightening Specifications















General/Overhaul

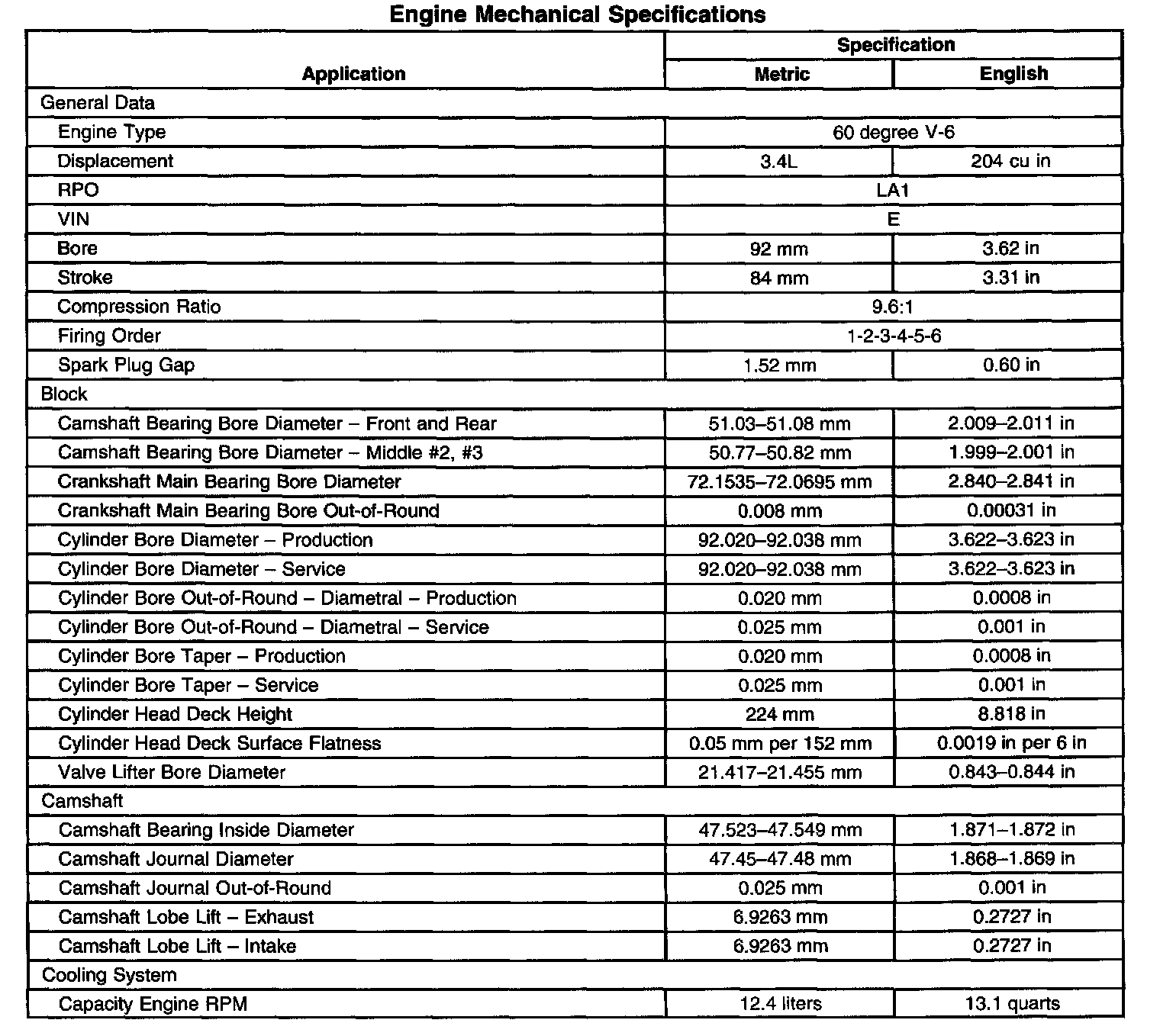

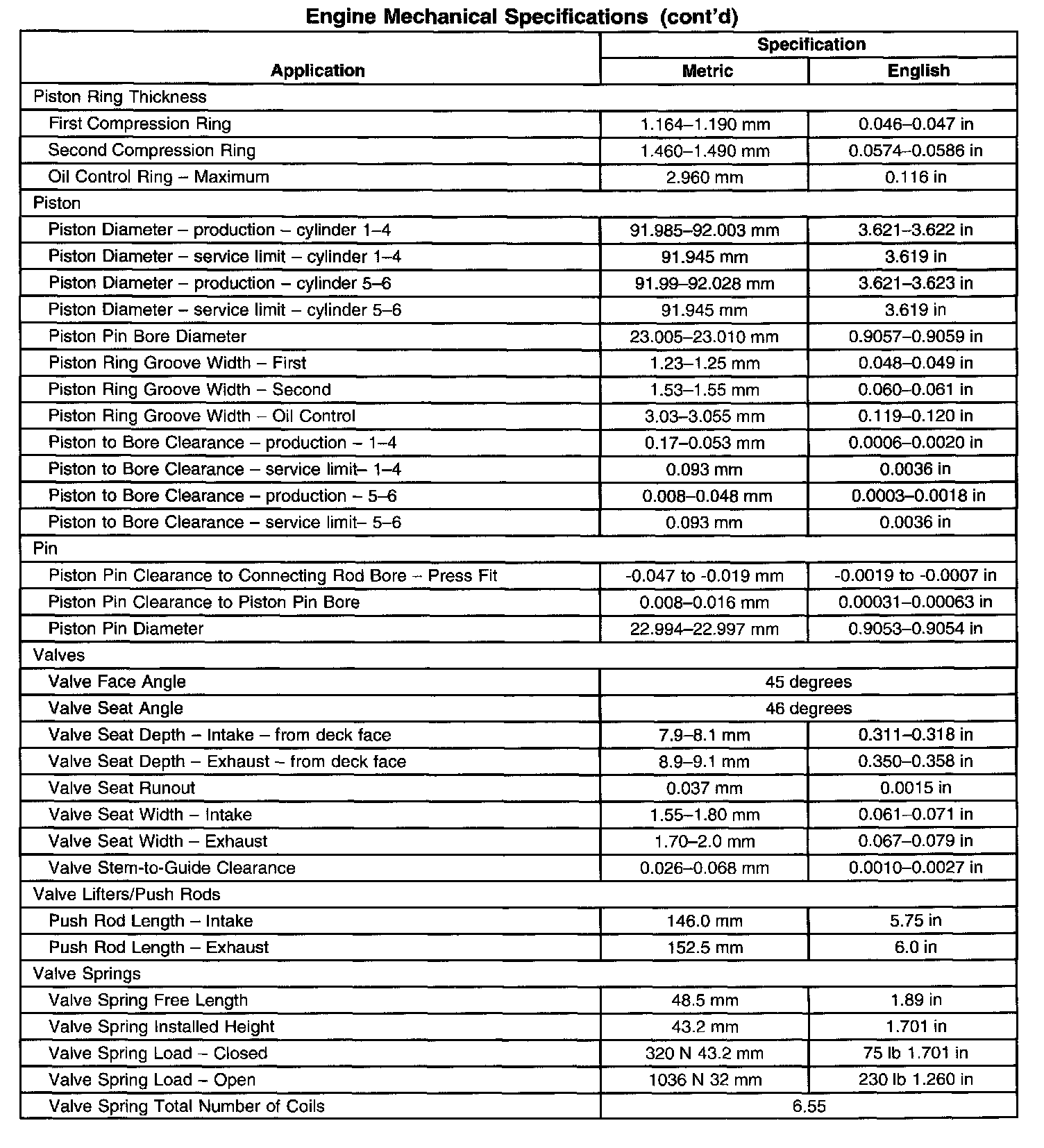

Engine Mechanical Specifications













General/Overhaul

Tightening Sequence

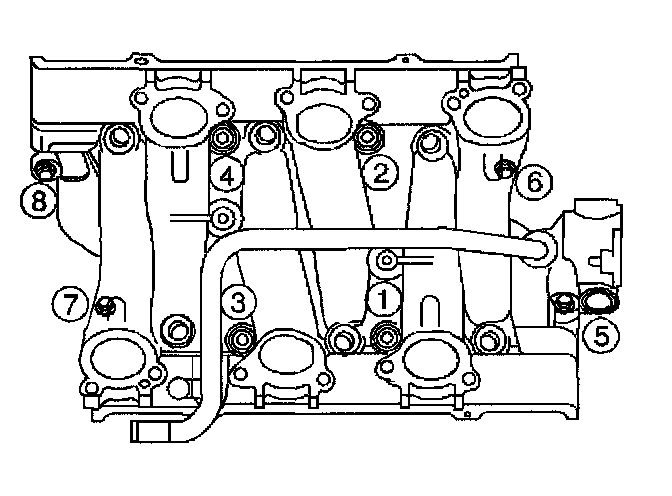

Lower Intake Manifold
Refer to the Lower Intake Manifold.

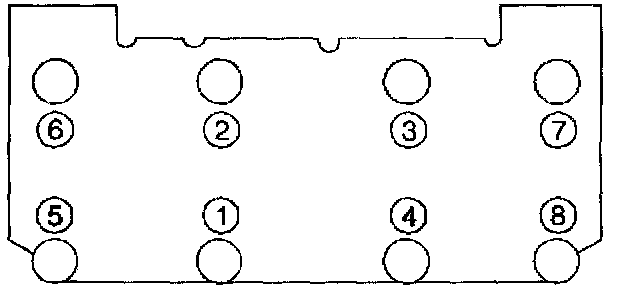

Cylinder Head
Refer to the Cylinder Head
