Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOP LAMP REPLACEMENT

REMOVAL PROCEDURE

IMPORTANT: The high-mounted stop lamp has a LED circuit board which is not serviced as a separate part. The entire high-mounted stoplamp must be replaced if the LED circuit board fails.

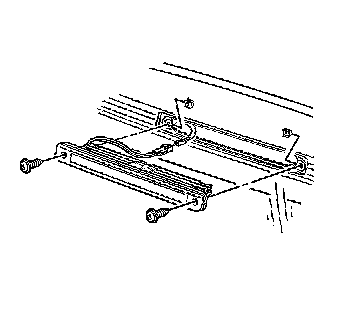

1. Remove the screws from the high-mounted stop lamp.
2. Remove the high-mounted stoplamp from the body.
3. Disconnect the electrical connector.

INSTALLATION PROCEDURE
1. Connect the electrical connector.




2. Install the high-mounted stop lamp to the body.
3. Install the screws to the high-mounted stop lamp.

Tighten the screws to 6 N.m (53 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.
