Suspension Control ( Automatic - Electronic ): Locations

Automatic Level Control Suspension Component Views

Below Vehicle, Rear of LR Wheelhouse





1 - Pass Through P403
2 - In-line Connector C407
3 - Auto Level Control Harness
4 - Auto Level Control (ALC) Sensor Connector
5 - Auto Level Control (ALC) Air Compressor
6 - Auto Level Control (ALC) Air Inflator Relay
7 - Auto Level Control (ALC) Connector

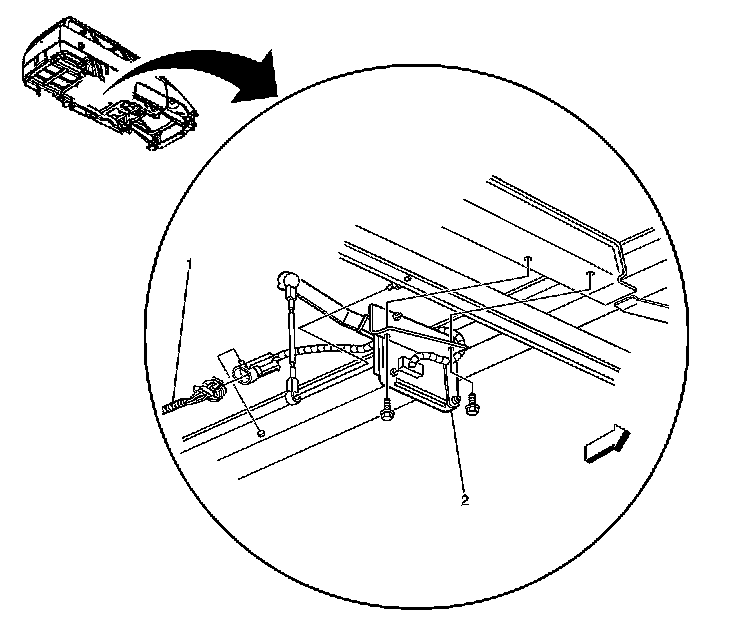

Underneath Rear of Vehicle





1 - Auto Level Control (ALC) Harness
2 - Auto Level Control (ALC) Sensor
