P0192

DTC P0192

Circuit Description
The fuel rail pressure sensor is installed to the fuel rail and it detects the fuel pressure in the fuel rail, converts the pressure into a voltage signal, and sends the signal to the engine control module (ECM). The fuel rail pressure sensor has the following circuits.
- 5 volts reference circuit
- Low reference circuit
- Fuel rail pressure sensor signal circuit

The ECM supplies 5 volts to the fuel rail pressure sensor on the 5 volts reference circuit. The ECM also provides a ground on the low reference circuit. Higher fuel rail pressure provides higher fuel pressure sensor voltage while lower pressure provides lower fuel pressure sensor voltage. The ECM calculates actual fuel rail pressure (fuel pressure) from the voltage signal and uses the result in fuel injection control and other control tasks. The ECM monitors the fuel rail pressure sensor signal for voltage outside the normal range. If the ECM detects an excessively low fuel rail pressure sensor signal voltage, this DTC will set.

Condition for Running the DTC
- The battery voltage is between 10-16 volts.
- The ignition switch is ON.

Condition for Setting the DTC
- The ECM detects that the fuel rail pressure sensor signal voltage is less than 0.7 volts.

Action Taken When the DTC Sets
- The ECM illuminates the malfunction indicator lamp (MIL) when the diagnostic runs and fails.
- The ECM records the operating conditions at the time the diagnostic fails. The ECM stores this information in the Failure Records.
- The ECM limits fuel rail pressure within 11600 psi (80 MPa).
- The ECM limits accelerator control range within 40%.
- The ECM closes the EGR valve and holds to close position.
- The ECM inhibits the cruise control.
- The ECM inhibits the PTO control.

Condition for Clearing the DTC
- A current DTC clears when the ignition is turned OFF.
- Clear the MIL and the DTC with a scan tool.

Diagnostic Aids
If an intermittent condition is suspected, the following may cause an intermittent:
- Poor connections.
- Misrouted harness.
- Rubbed through wire insulation.
- Broken wire inside the insulation.

Check for the following conditions:
- Poor connection at ECM: Inspect harness connectors for backed-out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal to wire connection.
- Damaged harness: Inspect the wiring harness for damage. If the harness appears to be OK, observe the "Actual Fuel Rail Pressure" display on the scan tool with the engine running while moving connectors and wiring harness related to the sensor. A change in the display will indicate the location of the fault.

DTC P0192

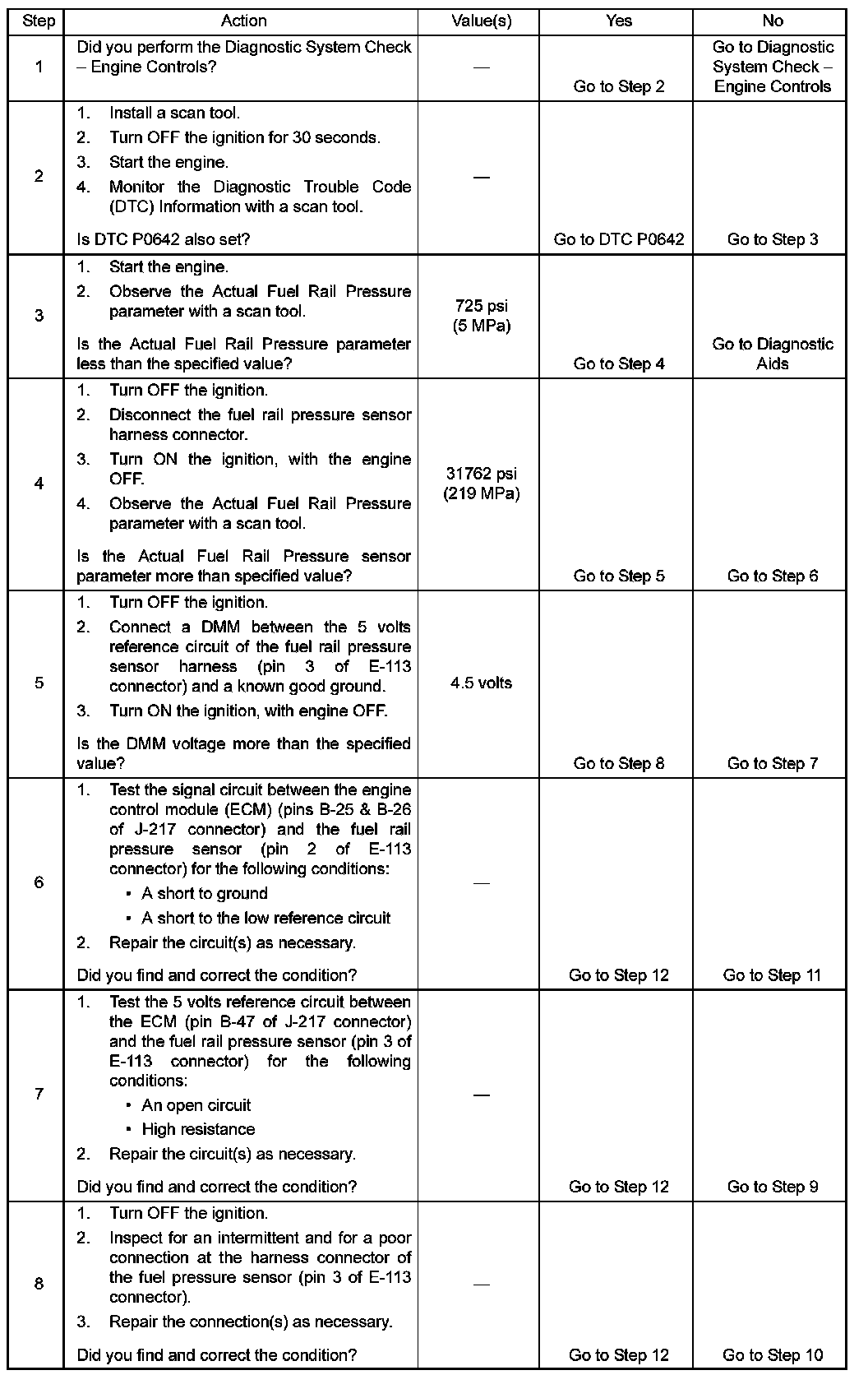

Schematic Reference: Engine Controls Schematics

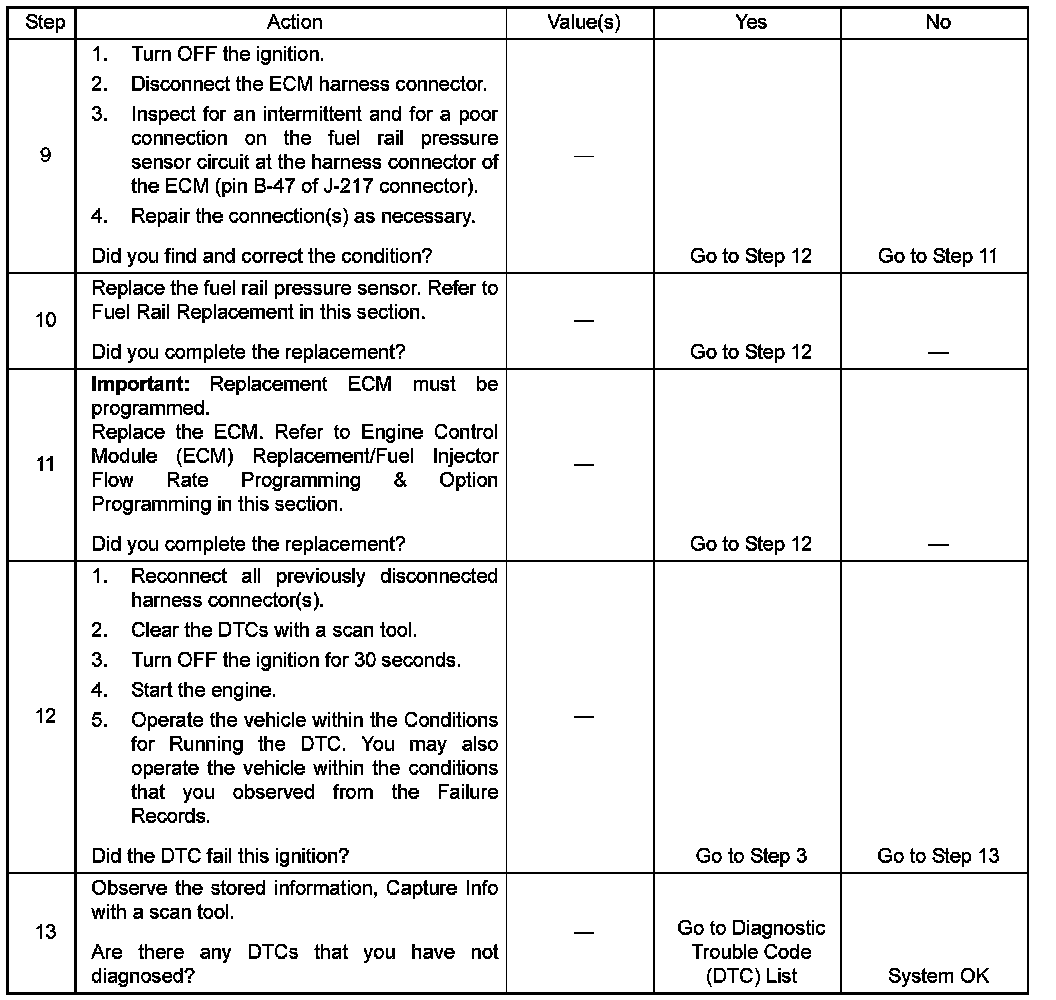

Step 9 - 13:
