Inflatable Restraint Steering Wheel Module

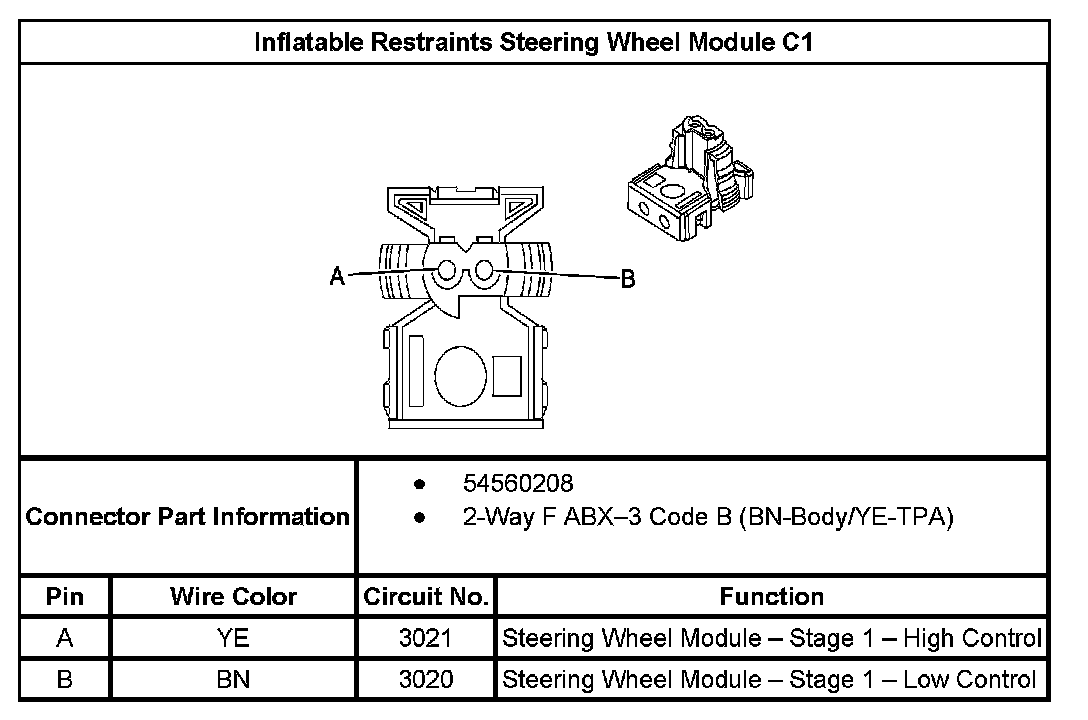

Inflatable Restraints Sleering Wheel Module C1:

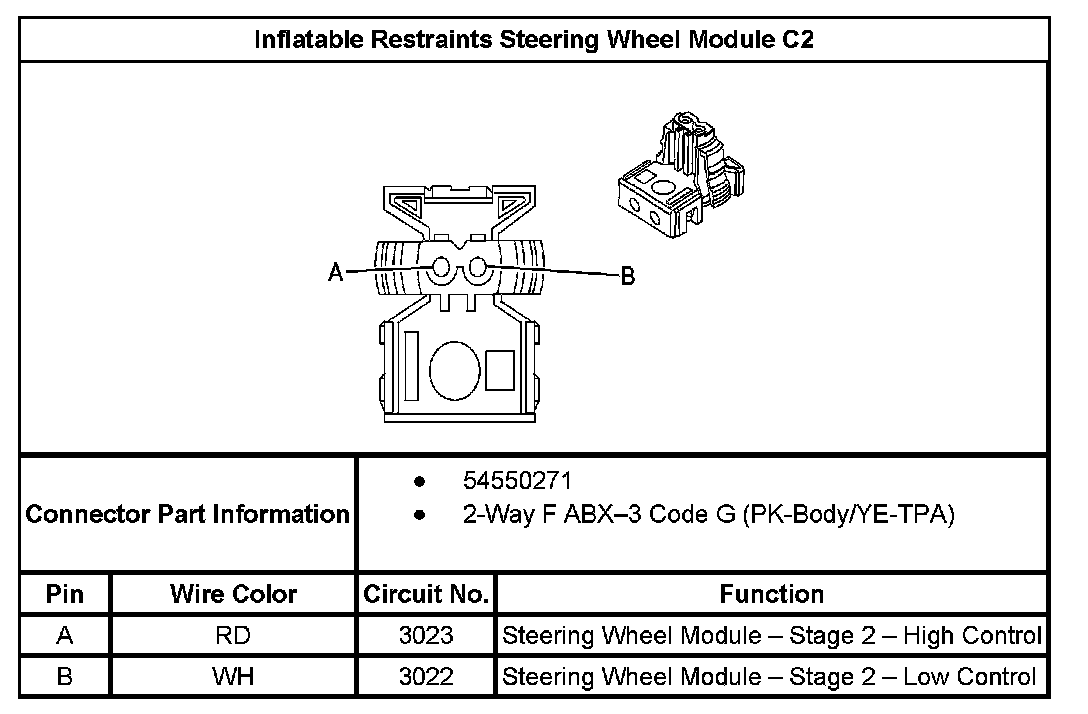

Inflatable Restraints Steering Wheel Module C2:
