Control Assembly: Service and Repair

HVAC CONTROL ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE

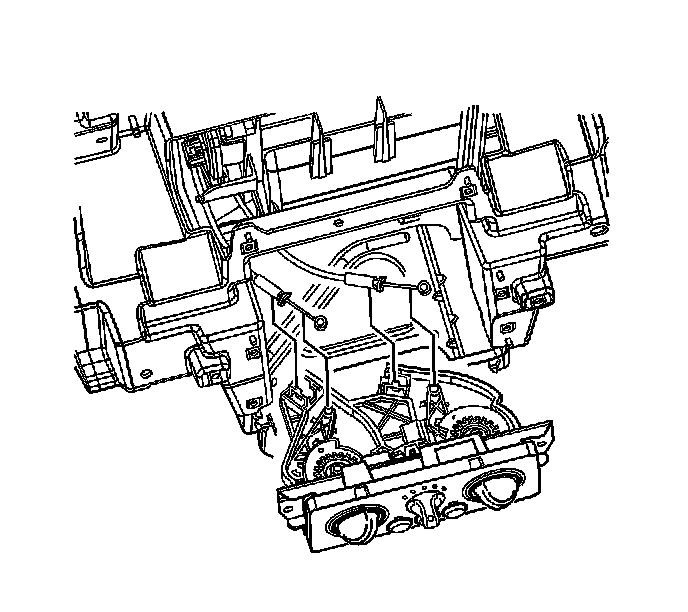

1. Remove the accessory trim plate.

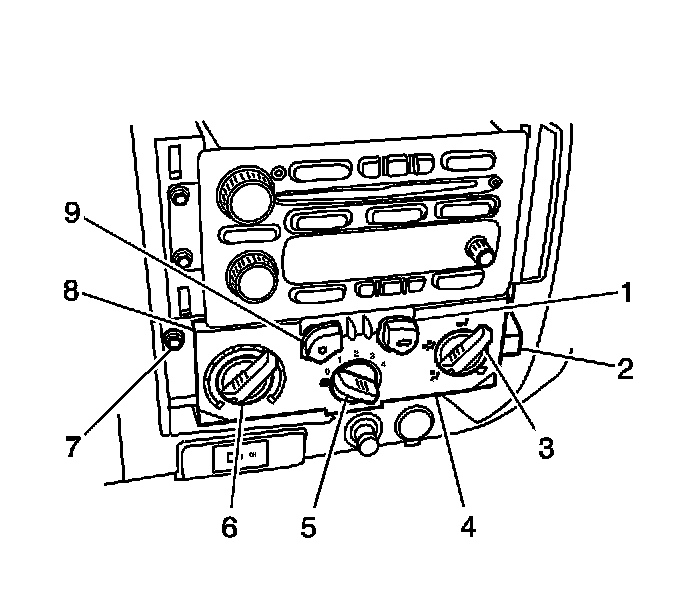

2. Remove the screws (7,2) from the HVAC control assembly.
3. Remove the HVAC control assembly from the instrument panel.




4. Disconnect the mode cable from the HVAC control assembly.
5. Disconnect the temperature cable from the HVAC control assembly.
6. Disconnect the HVAC control assembly electrical connectors.
7. Remove the HVAC control assembly.

INSTALLATION PROCEDURE




1. Install the HVAC control assembly.
2. Connect the HVAC control assembly electrical connectors.
3. Connect the mode cable to the HVAC control assembly.

IMPORTANT: Do not bend the mode and temperature cables.

4. Connect the temperature cable to the HVAC control assembly.




5. Install the HVAC control assembly to the instrument panel.
6. Install the HVAC control assembly screws.

Tighten the screws to 1.9 N.m (18 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

7. Install the accessory trim plate.
