Inflatable Restraint Roof Rail Module

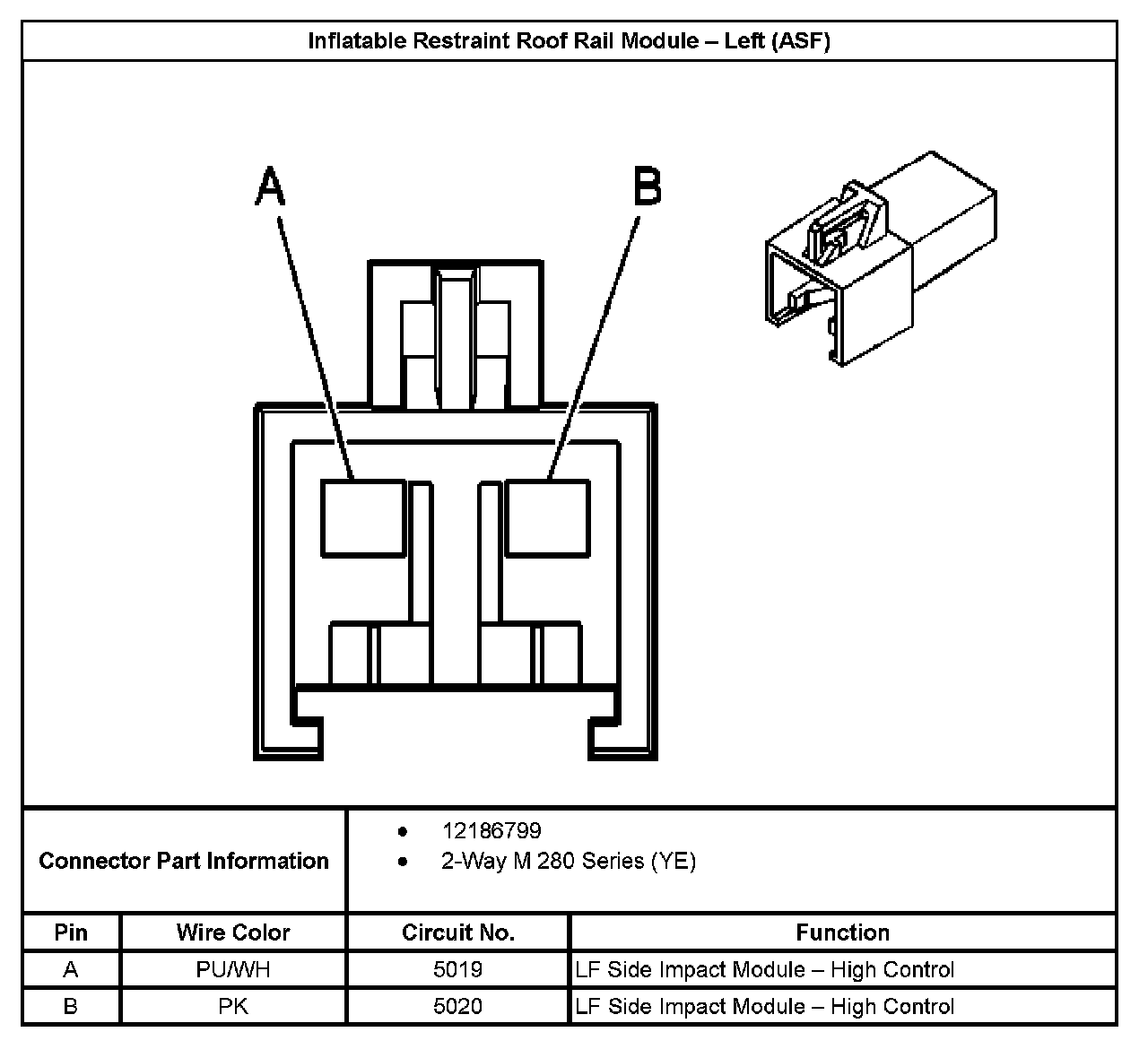

Inflatable Restraint Roof Rail Module - Left (ASF):

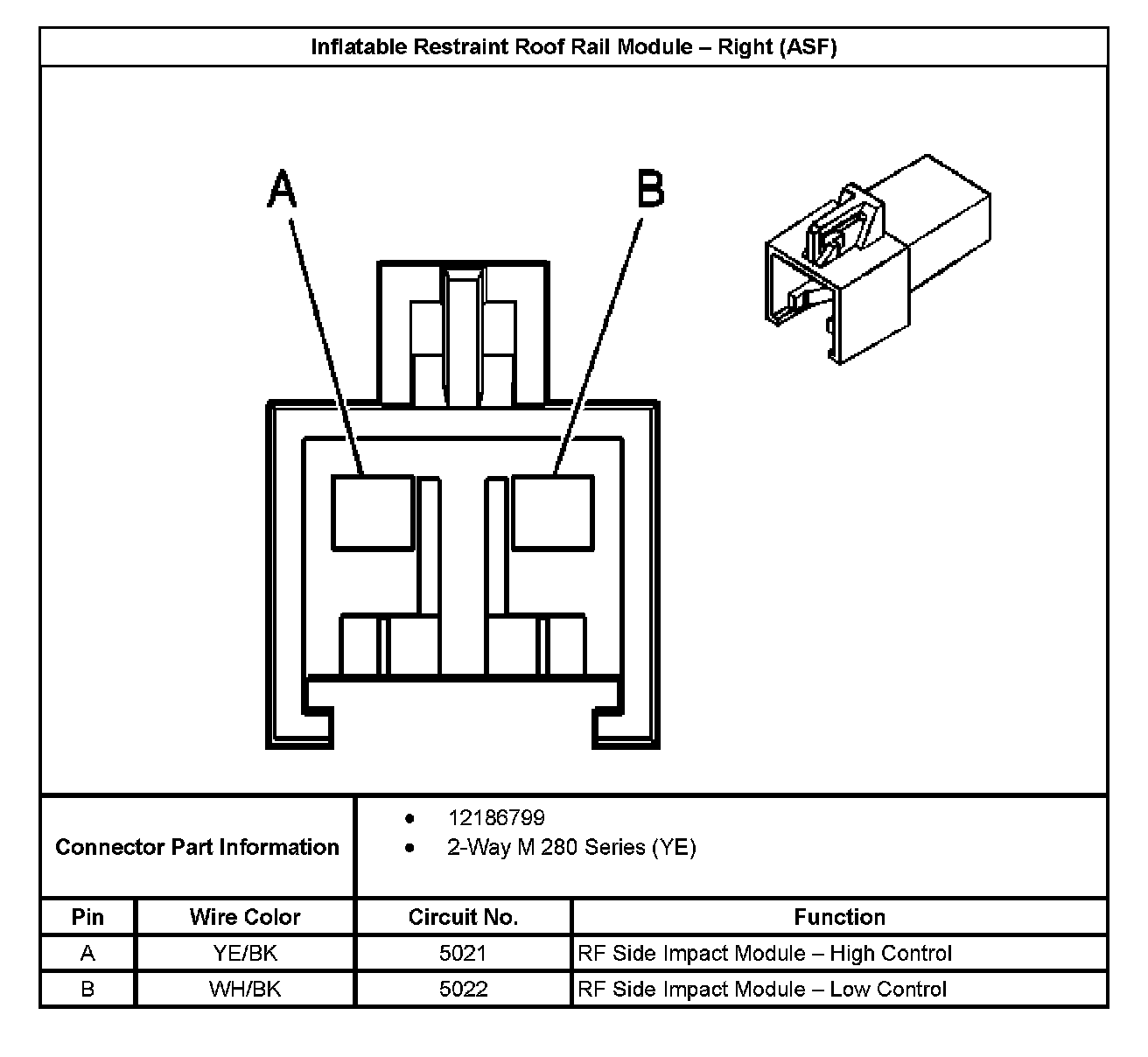

Inflatable Restraint Roof Rail Module - Right (ASF):
