Reverse Shift Valve Solenoid (S5)
Reverse Shift Valve Solenoid (S5)

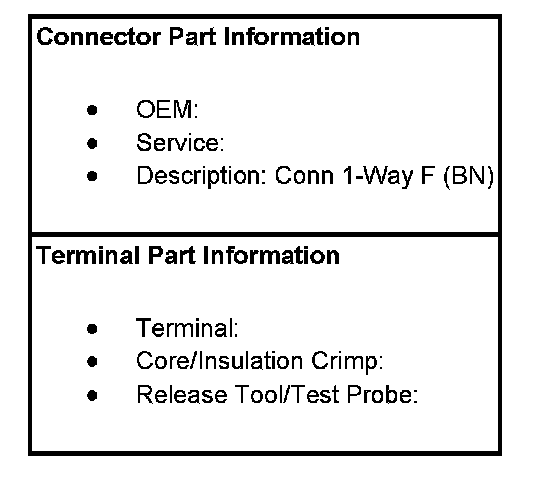

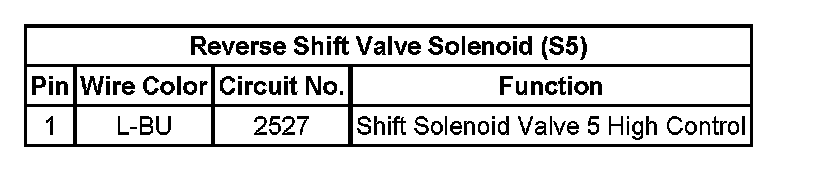

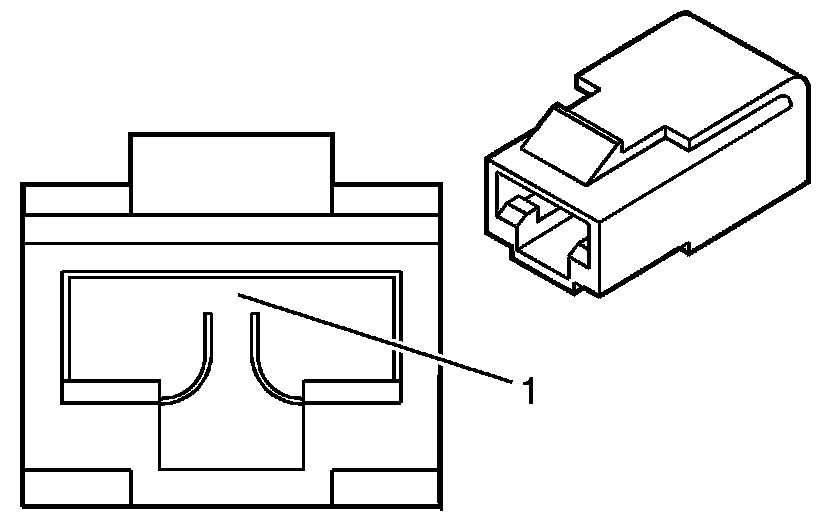

Reverse Shift Valve Solenoid (S5):
