Transmission Position Sensor/Switch, A/T



Park/Neutral Position Switch Assembly, Wiring Harness Side

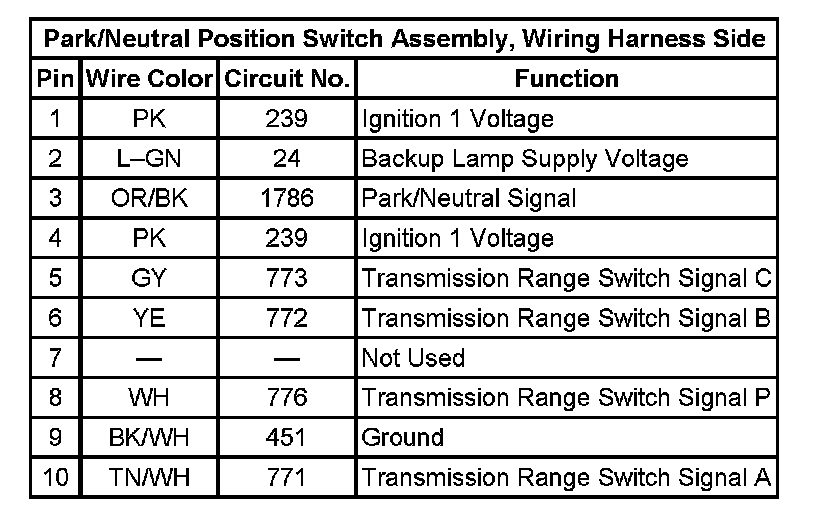

Park/Neutral Position Switch Assembly, Wiring Harness Side:

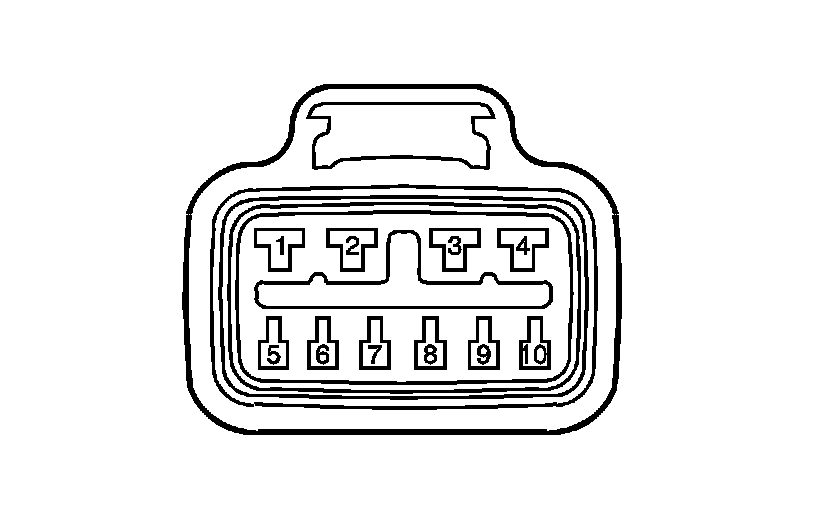

Park/Neutral Position Switch Assembly, Wiring Harness Side:
