Cellular and Navigation Antenna Views
Cellular and Navigation Antenna Views

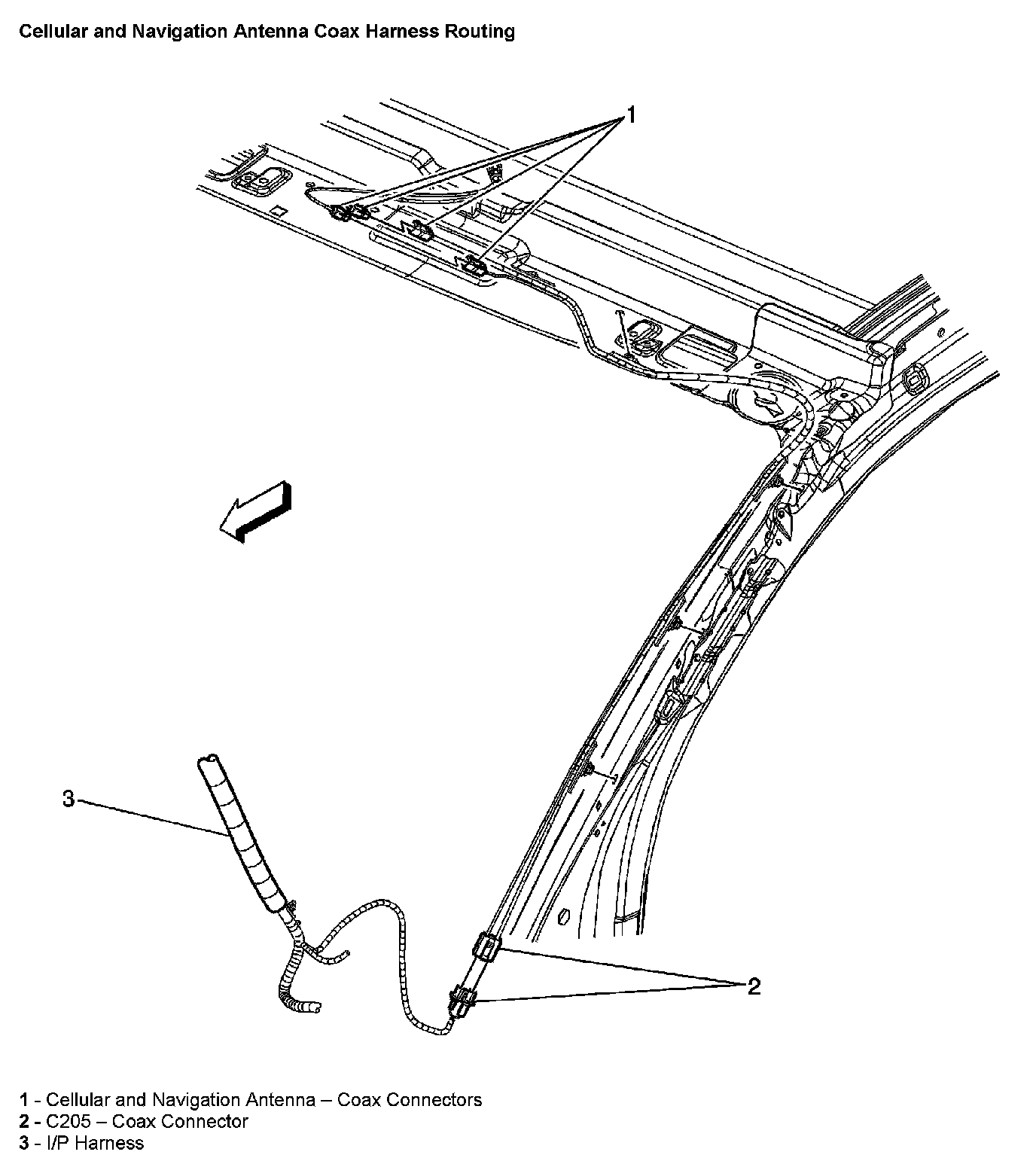

Cellular And Navigation Antenna Coax Harness Routing:
