Home
>>
Chevy Truck
>>
2006
>>
Equinox FWD V6-3.4L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine Compartment Views
>>

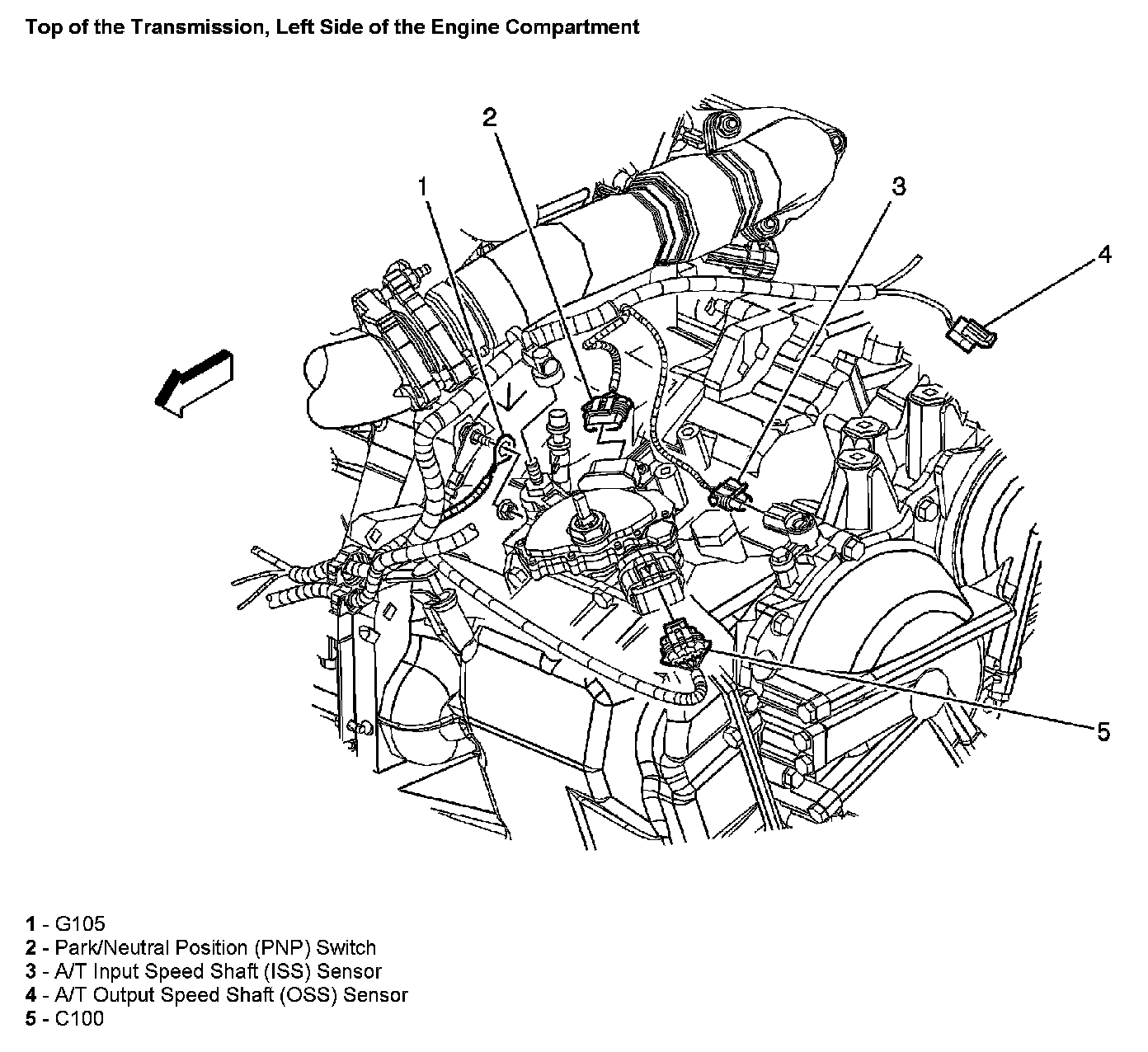

Top of the Transmission, Left Side of the Engine Compartment
Top of the Transmission, Left Side of the Engine Compartment
Top Of The Transmission, Left Side Of The Engine Compartment:
