Fog/Driving Lamp: Service and Repair

FOG LAMP REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Remove the push-in retainers (1) that hold the front flap of the front wheelhouse liner to the fascia.
2. Bend the front flap of the wheelhouse liner out of the way in order to gain access to the fog lamp.




3. Turn the fog lamp socket (1) counterclockwise to release the fog lamp socket from the fog lamp housing.
4. If replacing the fog lamp bulb, remove the fog lamp bulb from the socket.
5. Remove the 2 lower screws (2) from the rear of the fog lamp housing.

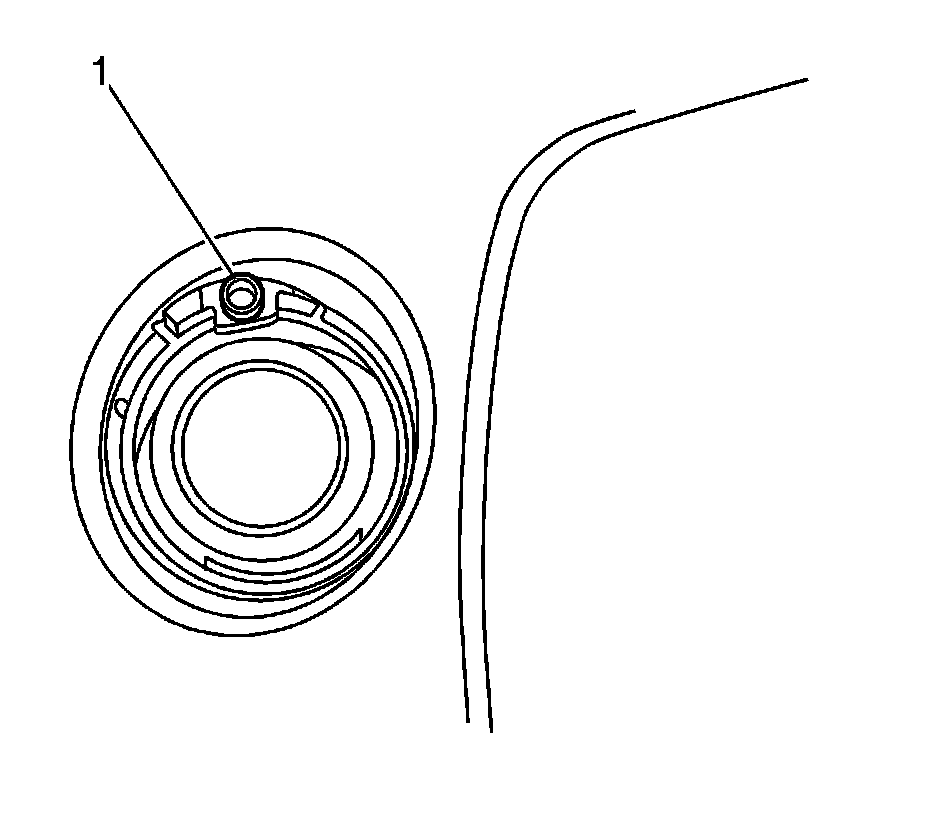

6. Remove the front fog lamp adjuster screw (1), count the number of turns when removing for installation purposes.
7. Remove the fog lamp housing from the fascia.

INSTALLATION PROCEDURE




1. Position the fog lamp housing to the front fascia.
2. Install the front fog lamp adjuster screw (1), turn the screw in the number of turns from documented during removal.




3. Install the 2 lower screws (2) from the rear of the fog lamp housing.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2 N.m (18 lb in).
4. Install the fog lamp bulb into the socket, if needed.
5. Install the fog lamp bulb socket (1) into the housing.




6. Position the front flap of the wheelhouse liner back into place.
7. Install the wheelhouse liner push-in retainers (1).
