Air Conditioning Compressor Mounting Bracket Replacement

COMPRESSOR MOUNTING BRACKET REPLACEMENT

REMOVAL PROCEDURE




1. Remove the compressor.

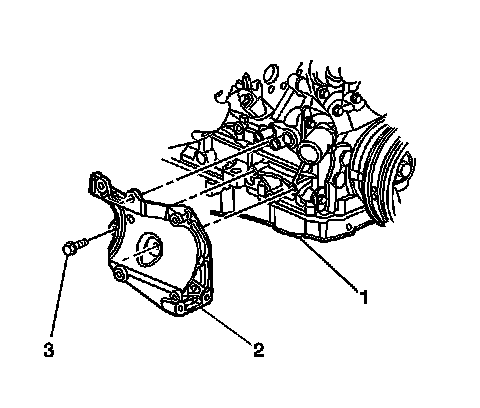

2. Remove the compressor mounting bracket bolts (3).
3. Remove the compressor mounting bracket (2).

INSTALLATION PROCEDURE




1. Install the compressor mounting bracket (2).
2. Install the compressor mounting bracket bolts (3).

Tighten the bolts to 50 N.m (37 lb ft).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the compressor.
