Air Bag Deactivation Indicator
Air Bag Deactivation Indicator

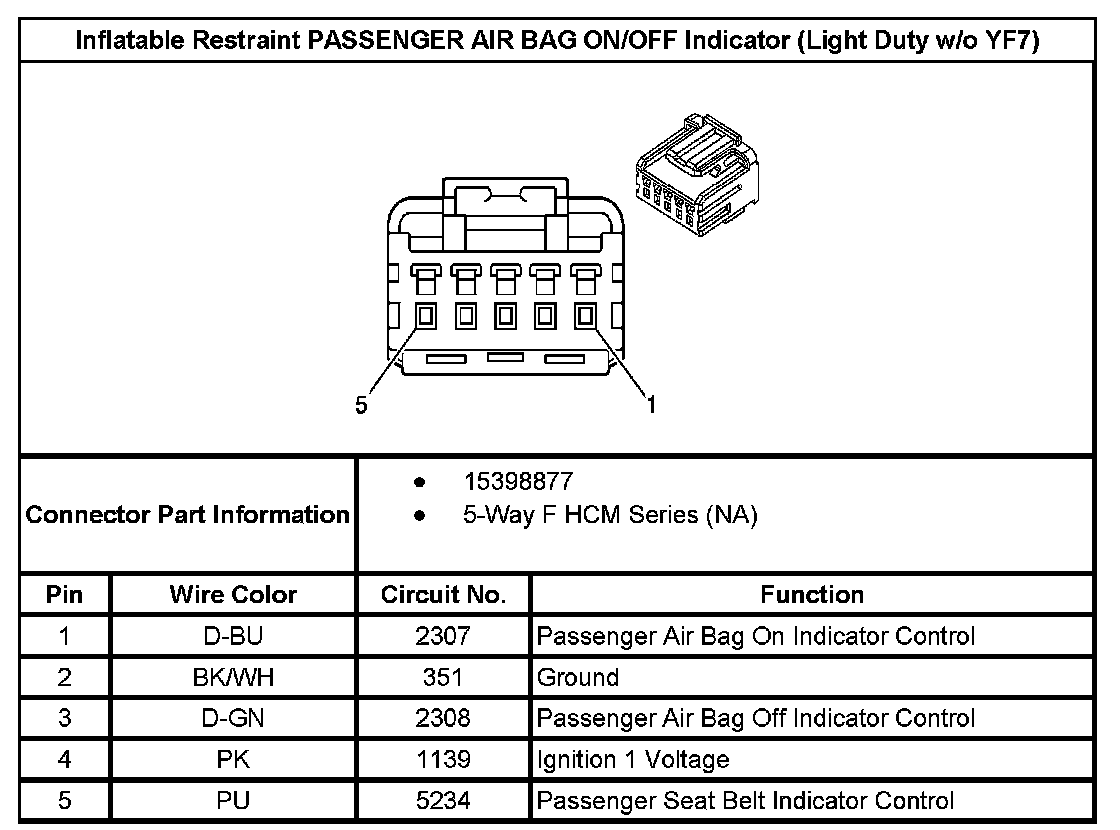

Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator(Light Duty Without RPO Code YF7):
